• Micro-diameter milling cutters are usually used for precision machining and micro-structure machining.
• Advanced grinding technology achieves ultra-high blade diameter and shank diameter accuracy, suitable for precision molds and parts processing.
• High wear-resistant coating is used. The arc transition structure ensures high breakage resistance and enables long-term cutting of hardened steel.

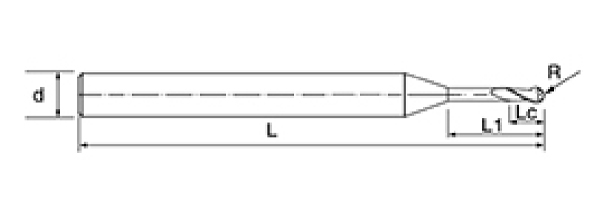

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-2BSP-D0.2-L1 | 0.2 | 0.1 | 0.2 | 1 | 50 | 4 | 2 |
NNC-2BSP-D0.2-L2 | 0.2 | 0.1 | 0.2 | 2 | 50 | 4 | 2 |
NNC-2BSP-D0.2-L3 | 0.2 | 0.1 | 0.2 | 3 | 50 | 4 | 2 |
NNC-2BSP-D0.3-L1 | 0.3 | 0.15 | 0.3 | 1 | 50 | 4 | 2 |
NNC-2BSP-D0.3-L2 | 0.3 | 0.15 | 0.3 | 2 | 50 | 4 | 2 |
NNC-2BSP-D0.3-L3 | 0.3 | 0.15 | 0.3 | 3 | 50 | 4 | 2 |
NNC-2BSP-D0.4-L1 | 0.4 | 0.2 | 0.4 | 1 | 50 | 4 | 2 |
NNC-2BSP-D0.4-L2 | 0.4 | 0.2 | 0.4 | 2 | 50 | 4 | 2 |
NNC-2BSP-D0.4-L3 | 0.4 | 0.2 | 0.4 | 3 | 50 | 4 | 2 |
NNC-2BSP-D0.4-L4 | 0.4 | 0.2 | 0.4 | 4 | 50 | 4 | 2 |
NNC-2BSP-D0.4-L5 | 0.4 | 0.2 | 0.4 | 5 | 50 | 4 | 2 |
NNC-2BSP-D0.5-L2 | 0.5 | 0.25 | 0.5 | 2 | 50 | 4 | 2 |
NNC-2BSP-D0.5-L3 | 0.5 | 0.25 | 0.5 | 3 | 50 | 4 | 2 |
NNC-2BSP-D0.5-L4 | 0.5 | 0.25 | 0.5 | 4 | 50 | 4 | 2 |
NNC-2BSP-D0.5-L6 | 0.5 | 0.25 | 0.5 | 6 | 50 | 4 | 2 |
NNC-2BSP-D0.6-L2 | 0.6 | 0.3 | 0.6 | 2 | 50 | 4 | 2 |
NNC-2BSP-D0.6-L3 | 0.6 | 0.3 | 0.6 | 3 | 50 | 4 | 2 |
NNC-2BSP-D0.6-L4 | 0.6 | 0.3 | 0.6 | 4 | 50 | 4 | 2 |
NNC-2BSP-D0.6-L6 | 0.6 | 0.3 | 0.6 | 6 | 50 | 4 | 2 |
NNC-2BSP-D0.6-L8 | 0.6 | 0.3 | 0.6 | 8 | 50 | 4 | 2 |
NNC-2BSP-D0.8-L4 | 0.8 | 0.4 | 0.8 | 4 | 50 | 4 | 2 |
NNC-2BSP-D0.8-L6 | 0.8 | 0.4 | 0.8 | 6 | 50 | 4 | 2 |
NNC-2BSP-D0.8-L8 | 0.8 | 0.4 | 0.8 | 8 | 50 | 4 | 2 |
NNC-2BSP-D0.8-L10 | 0.8 | 0.4 | 0.8 | 10 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |

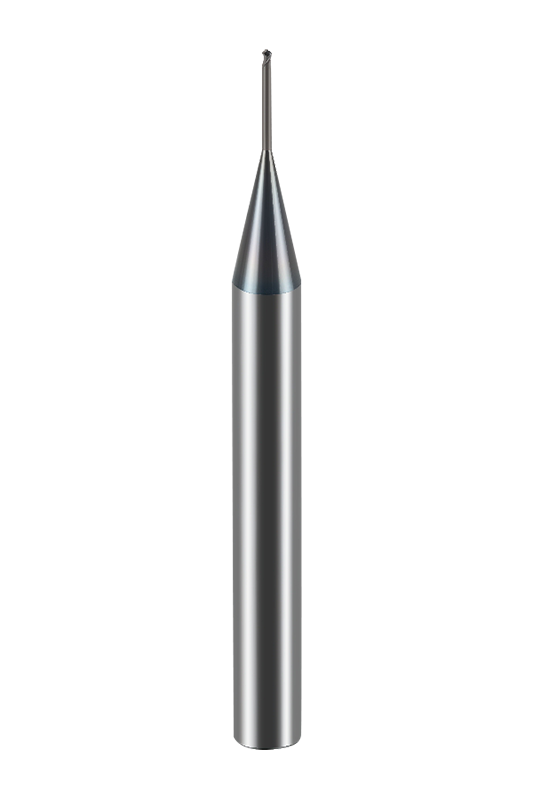

NNC-2BSP 2 Flute Micro Diameter Deep Groove Ball Nose End Mills offer a variety of specifications to meet different processing needs. The tool diameter ranges from 0.2mm to 0.8mm, and the blade length is optional from 0.2mm to 0.8mm. With a variety of blade length and effective length combinations, such as NNC-2BSP-D0.2-L1, NNC-2BSP-D0.4-L4 and NNC-2BSP-D0.8-L10, users can flexibly choose the most suitable tool to improve processing efficiency and accuracy.
This 2 flute micro diameter deep groove ball nose end mills adopts a micro-diameter ball end design, which is suitable for precision machining and complex surface machining. The ball end cutter shape ensures a good contact angle, allowing the tool to perform well in deep grooves, microstructures and high-precision mold machining. Its 30° helix angle optimizes cutting smoothness, while reducing cutting resistance and improving the quality of the machined surface.
The tool adopts a high-precision grinding process to ensure a sharp edge and improve machining stability. At the same time, the surface adopts the latest chromium-aluminum composite coating, which effectively improves wear resistance and heat resistance, reduces friction coefficient, and makes the tool have a longer service life in high-speed cutting and continuous processing. The hardness range of HRC≤45 is suitable for a variety of processing scenarios, making it have excellent performance in the fields of precision mold manufacturing, electronic parts processing, etc.
NNC-2BSP milling cutter is suitable for precision processing of a variety of metal and alloy materials, including mild steel, carbon steel (≤22HRC), alloy steel (2535HRC), pre-hardened steel (3545HRC), stainless steel (≤30HRC), etc.
