• The universal milling cutter is suitable for heat treatment of all series of steel materials. It has a U-groove structure design and is suitable for both roughing and finishing.
• It is also suitable for the processing of non-steel and aluminum materials. It has a complete range of specifications and models and a wide range of uses.

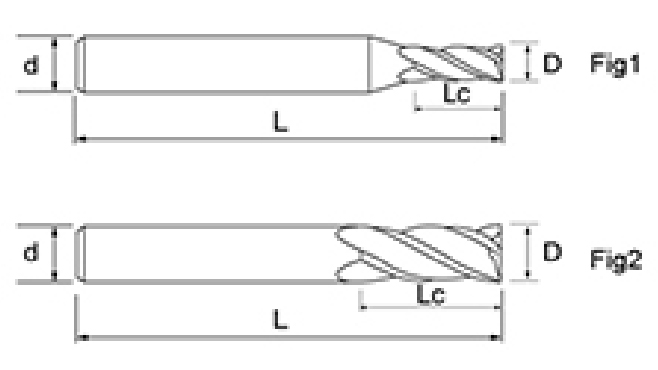

| No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
| NNC-4TU-D1 | 1 | 3 | 50 | 4 | 4 |
| NNC-4TU-D1 | 1 | 3 | 50 | 6 | 4 |
| NNC-4TU-D1.5 | 1.5 | 4 | 50 | 4 | 4 |
| NNC-4TU-D1.5 | 1.5 | 4 | 50 | 6 | 4 |
| NNC-4TU-D2 | 2 | 6 | 50 | 4 | 4 |
| NNC-4TU-D2 | 2 | 6 | 50 | 6 | 4 |
| NNC-4TU-D2.5 | 2.5 | 6 | 50 | 4 | 4 |
| NNC-4TU-D2.5 | 2.5 | 6 | 50 | 6 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 4 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 6 | 4 |
| NNC-4TU-D3 | 3 | 8 | 50 | 3 | 4 |
| NNC-4TU-D3.5 | 3.5 | 10 | 50 | 4 | 4 |
| NNC-4TU-D3.5 | 3.5 | 10 | 50 | 6 | 4 |
| NNC-4TU-D4 | 4 | 10 | 50 | 4 | 4 |
| NNC-4TU-D4 | 4 | 10 | 50 | 6 | 4 |
| NNC-4TU-D4 | 4 | 10 | 75 | 4 | 4 |
| NNC-4TU-D4 | 4 | 10 | 100 | 4 | 4 |
| NNC-4TU-D4.5 | 4.5 | 11 | 50 | 6 | 4 |
| NNC-4TU-D5 | 5 | 13 | 50 | 6 | 4 |
| NNC-4TU-D5 | 5 | 13 | 50 | 5 | 4 |
| NNC-4TU-D5 | 5 | 13 | 75 | 6 | 4 |
| NNC-4TU-D5.5 | 5.5 | 15 | 50 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 50 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 75 | 6 | 4 |
| NNC-4TU-D6 | 6 | 15 | 100 | 6 | 4 |
| NNC-4TU-D7 | 7 | 18 | 60 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 60 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 75 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 100 | 8 | 4 |
| NNC-4TU-D8 | 8 | 20 | 150 | 8 | 4 |
| NNC-4TU-D9 | 9 | 23 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 25 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 75 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 100 | 10 | 4 |
| NNC-4TU-D10 | 10 | 30 | 150 | 10 | 4 |
| NNC-4TU-D11 | 11 | 30 | 75 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 75 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 100 | 12 | 4 |
| NNC-4TU-D12 | 12 | 30 | 150 | 12 | 4 |
| NNC-4TU-D14 | 14 | 35 | 100 | 14 | 4 |
| NNC-4TU-D16 | 16 | 45 | 100 | 16 | 4 |
| NNC-4TU-D16 | 16 | 45 | 150 | 16 | 4 |
| NNC-4TU-D18 | 18 | 45 | 100 | 18 | 4 |
| NNC-4TU-D20 | 20 | 50 | 100 | 20 | 4 |
| NNC-4TU-D20 | 20 | 50 | 150 | 20 | 4 |
| Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
|
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
| D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
| D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
| D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
| D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 | |||||||

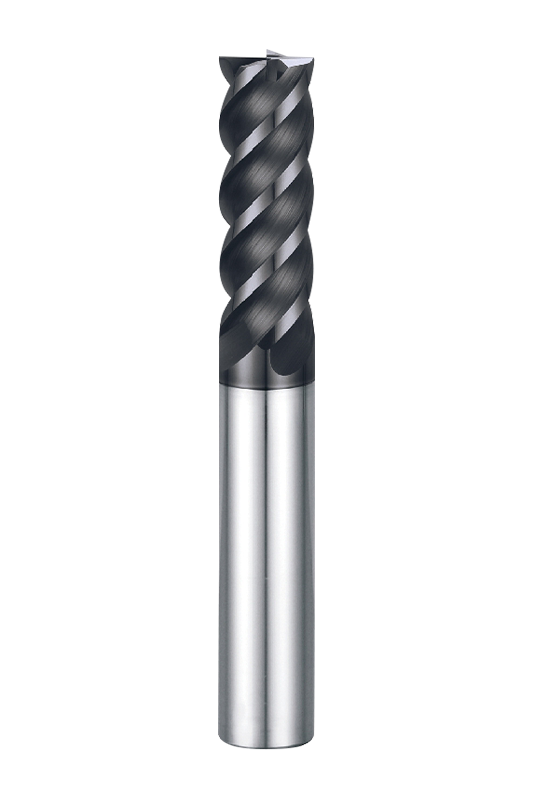

NNC-4TU 4 Flute Flat Head U Slot End Mills offers a variety of specifications, with tool diameters ranging from 1mm to 20mm, tool lengths from 3mm to 45mm, and total lengths from 50mm to 150mm, to meet different processing needs. For example, small specifications such as NNC-4TU-D1 are suitable for fine processing, while large specifications such as NNC-4TU-D20 are more suitable for efficient cutting. Flexible size combinations make it suitable for a variety of different application scenarios, improving the adaptability and precision of processing.
The milling cutter adopts a four-edge flat bottom design, combined with a U-groove structure, which helps to efficiently remove chips, reduce heat accumulation during processing, and increase tool life. The 45° helix angle design optimizes cutting performance, reduces cutting resistance, makes processing smoother, and thus improves surface finish. In addition, the flat bottom structure ensures precise vertical cutting, which is suitable for occasions where high-precision bottom cutting is required.
Made of high-toughness, non-fragmentation-resistant alloy substrate (0.6μm), with the latest chromium-aluminum composite coating, the tool surface hardness is higher, wear resistance and oxidation resistance are significantly improved, the friction between the tool and the workpiece is reduced, the processing efficiency is improved, and the tool wear is reduced, and the service life is extended. The hardness range of HRC≤45 enables it to stably cope with medium-strength workpiece materials and provide longer-lasting use effects.
NNC-4TU 4 flute flat head u slot end mills is suitable for the processing of a variety of materials, including low-carbon steel (<22HRC), alloy steel (25-35HRC), pre-hardened steel (35-45HRC), etc. In addition, it can also provide good cutting effects for materials such as stainless steel (≤30HRC) and copper alloys.
