• Micro-diameter milling cutters are usually used for precision machining and micro-structure machining.
• Advanced grinding technology achieves ultra-high blade diameter and shank diameter accuracy, suitable for precision molds and parts processing.
• High wear-resistant coating is used. The arc transition structure ensures high breakage resistance and enables long-term cutting of hardened steel.

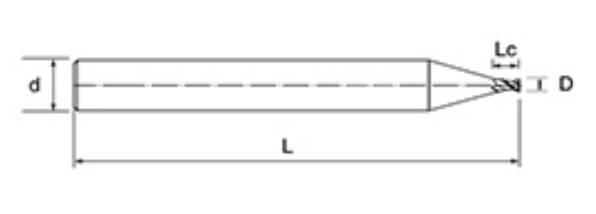

No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-2TS-D0.1 | 0.1 | 0.1 | 50 | 4 | 2 |
NNC-2TS-D0.2 | 0.2 | 0.2 | 50 | 4 | 2 |
NNC-2TS-D0.3 | 0.3 | 0.3 | 50 | 4 | 2 |
NNC-2TS-D0.4 | 0.4 | 0.4 | 50 | 4 | 2 |
NNC-2TS-D0.5 | 0.5 | 0.5 | 50 | 4 | 2 |
NNC-2TS-D0.6 | 0.6 | 0.6 | 50 | 4 | 2 |
NNC-2TS-D0.7 | 0.7 | 0.7 | 50 | 4 | 2 |
NNC-2TS-D0.8 | 0.8 | 0.8 | 50 | 4 | 2 |
NNC-2TS-D0.9 | 0.9 | 0.9 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |
The NNC-2TS 2 Flute Micro Diameter Flat Head End Mills is made of 0.4µm ultra-fine particle substrate and equipped with the latest chromium-aluminum composite coating to improve wear resistance and thermal stability, suitable for machining materials with hardness up to HRC45. The 30° helix angle reduces cutting forces and vibrations, helping to achieve smoother operation and better surface finish.
Available in 9 sizes, ranging from 0.1mm to 0.9mm in diameter, with increments of 0.1mm, and the same length and diameter.
The latest chromium-aluminum composite coating can also reduce friction, help to machine harder materials such as modulated steel, pre-hardened steel and stainless steel, and can significantly extend tool life.
Suitable for carbon steel, alloy steel (such as P20/H13/D2), hardened steel (such as 718H), stainless steel (SUS304/316L), and copper alloy (C11000). The sharp cutting edge helps to minimize burr formation and improve machining efficiency when machining stainless steel and copper alloys.
