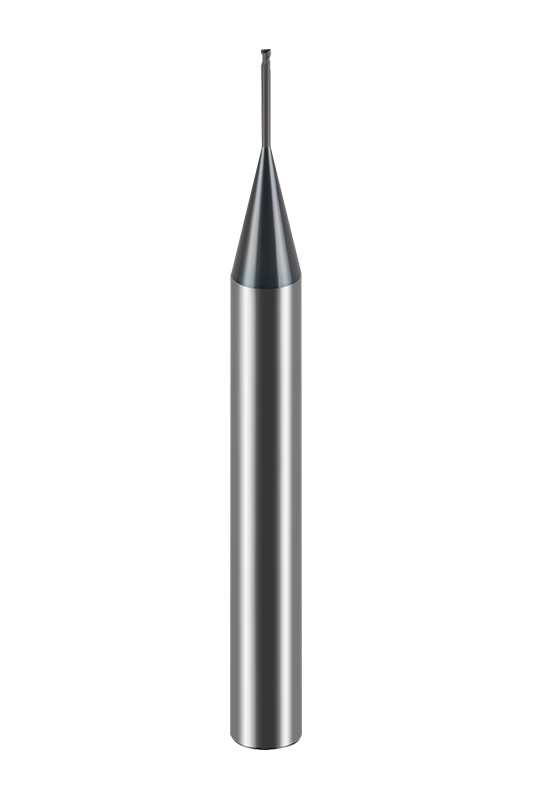

• Micro-diameter milling cutters are usually used for precision machining and micro-structure machining.
• Advanced grinding technology achieves ultra-high blade diameter and shank diameter accuracy, suitable for precision molds and parts processing.
• High wear-resistant coating is used. The arc transition structure ensures high breakage resistance and enables long-term cutting of hardened steel.

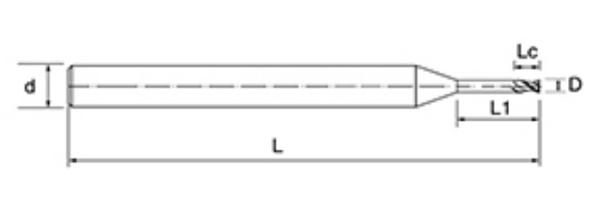

No. |
Diameter D |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-2TSP-D0.2-L1 | 0.2 | 0.2 | 1 | 50 | 4 | 2 |
NNC-2TSP-D0.2-L2 | 0.2 | 0.2 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.2-L3 | 0.2 | 0.2 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.3-L1 | 0.3 | 0.3 | 1 | 50 | 4 | 2 |
NNC-2TSP-D0.3-L2 | 0.3 | 0.3 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.3-L3 | 0.3 | 0.3 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.3-L4 | 0.3 | 0.3 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.4-L2 | 0.4 | 0.4 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.4-L3 | 0.4 | 0.4 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.4-L4 | 0.4 | 0.4 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.4-L6 | 0.4 | 0.4 | 6 | 50 | 4 | 2 |
NNC-2TSP-D0.5-L2 | 0.5 | 0.5 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.5-L3 | 0.5 | 0.5 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.5-L4 | 0.5 | 0.5 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.5-L5 | 0.5 | 0.5 | 5 | 50 | 4 | 2 |
NNC-2TSP-D0.5-L6 | 0.5 | 0.5 | 6 | 50 | 4 | 2 |
NNC-2TSP-D0.6-L2 | 0.6 | 0.6 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.6-L3 | 0.6 | 0.6 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.6-L4 | 0.6 | 0.6 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.6-L6 | 0.6 | 0.6 | 6 | 50 | 4 | 2 |
NNC-2TSP-D0.6-L8 | 0.6 | 0.6 | 8 | 50 | 4 | 2 |
NNC-2TSP-D0.7-L2 | 0.7 | 0.7 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.7-L4 | 0.7 | 0.7 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.7-L6 | 0.7 | 0.7 | 6 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L2 | 0.8 | 0.8 | 2 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L3 | 0.8 | 0.8 | 3 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L4 | 0.8 | 0.8 | 4 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L6 | 0.8 | 0.8 | 6 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L8 | 0.8 | 0.8 | 8 | 50 | 4 | 2 |
NNC-2TSP-D0.8-L10 | 0.8 | 0.8 | 10 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |
The 2 Flute Micro Diameter Deep Groove Flat Head End Mills is specially designed for high-precision micro-machining, and adopts a double-edge structure to ensure cutting stability and surface finish. This series of products covers a full range of specifications, with a diameter range of 0.2mm to 0.8mm, a 1:1 ratio between tool length and diameter, and an optional effective processing length of 1mm to 10mm. The total length is unified as a standard size of 50mm. The entire series is equipped with a 4mm standard shank diameter, which can be adapted to various types of CNC machine tools and high-speed machining centers to achieve fast tool change and precise positioning. In terms of material applicability, the product exhibits excellent cutting performance for soft metals such as alloy steel, tool steel, and copper alloy, and is also capable of meeting the precision machining requirements of hard materials such as stainless steel and hardened steel. The specially designed flat groove structure combined with the ultra-fine tungsten steel matrix improves the rigidity of the tool while ensuring the sharpness of the cutting edge, effectively solving the common problems of tool vibration and chip removal in deep groove machining.
