• Four-edge design: 4 symmetrical cutting edges, balancing cutting efficiency and surface finish, suitable for semi-finishing to finishing.
• Advanced grinding technology achieves ultra-high blade diameter and shank diameter accuracy, suitable for precision molds and parts processing.
• High wear-resistant coating is used. The arc transition structure ensures high breakage resistance and enables long-term cutting of hardened steel.

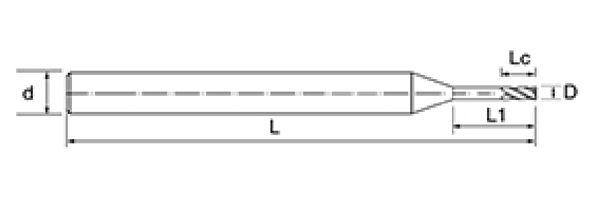

No. |
Diameter D |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-4TSP-D1-L4 | 1 | 1 | 4 | 50 | 4 | 4 |
NNC-4TSP-D1-L6 | 1 | 1 | 6 | 50 | 4 | 4 |
NNC-4TSP-D1-L8 | 1 | 1 | 8 | 50 | 4 | 4 |
NNC-4TSP-D1-L10 | 1 | 1 | 10 | 50 | 4 | 4 |
NNC-4TSP-D1-L12 | 1 | 1 | 12 | 50 | 4 | 4 |
NNC-4TSP-D1-L16 | 1 | 1 | 16 | 50 | 4 | 4 |
NNC-4TSP-D1-L20 | 1 | 1 | 20 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L6 | 1.5 | 1.5 | 6 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L8 | 1.5 | 1.5 | 8 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L10 | 1.5 | 1.5 | 10 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L12 | 1.5 | 1.5 | 12 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L14 | 1.5 | 1.5 | 14 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L16 | 1.5 | 1.5 | 16 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L18 | 1.5 | 1.5 | 18 | 50 | 4 | 4 |
NNC-4TSP-D1.5-L20 | 1.5 | 1.5 | 20 | 50 | 4 | 4 |
NNC-4TSP-D2-L8 | 2 | 2 | 8 | 50 | 4 | 4 |
NNC-4TSP-D2-L10 | 2 | 2 | 10 | 50 | 4 | 4 |
NNC-4TSP-D2-L12 | 2 | 2 | 12 | 50 | 4 | 4 |
NNC-4TSP-D2-L14 | 2 | 2 | 14 | 50 | 4 | 4 |
NNC-4TSP-D2-L16 | 2 | 2 | 16 | 50 | 4 | 4 |
NNC-4TSP-D2-L18 | 2 | 2 | 18 | 50 | 4 | 4 |
NNC-4TSP-D2-L20 | 2 | 2 | 20 | 50 | 4 | 4 |
NNC-4TSP-D2.5-L10 | 2.5 | 2.5 | 10 | 50 | 4 | 4 |
NNC-4TSP-D2.5-L12 | 2.5 | 2.5 | 12 | 50 | 4 | 4 |
NNC-4TSP-D2.5-L16 | 2.5 | 2.5 | 16 | 50 | 4 | 4 |
NNC-4TSP-D3-L10 | 3 | 3 | 10 | 50 | 4 | 4 |
NNC-4TSP-D3-L12 | 3 | 3 | 12 | 50 | 4 | 4 |
NNC-4TSP-D3-L16 | 3 | 3 | 16 | 50 | 4 | 4 |
NNC-4TSP-D3-L20 | 3 | 3 | 20 | 60 | 6 | 4 |
NNC-4TSP-D3-L25 | 3 | 3 | 25 | 75 | 6 | 4 |
NNC-4TSP-D3-L30 | 3 | 3 | 30 | 75 | 6 | 4 |
NNC-4TSP-D4-L15 | 4 | 4 | 15 | 50 | 6 | 4 |
NNC-4TSP-D4-L20 | 4 | 4 | 20 | 60 | 6 | 4 |
NNC-4TSP-D4-L25 | 4 | 4 | 25 | 75 | 6 | 4 |
NNC-4TSP-D4-L30 | 4 | 4 | 30 | 75 | 6 | 4 |
NNC-4TSP-D4-L35 | 4 | 4 | 35 | 75 | 6 | 4 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |

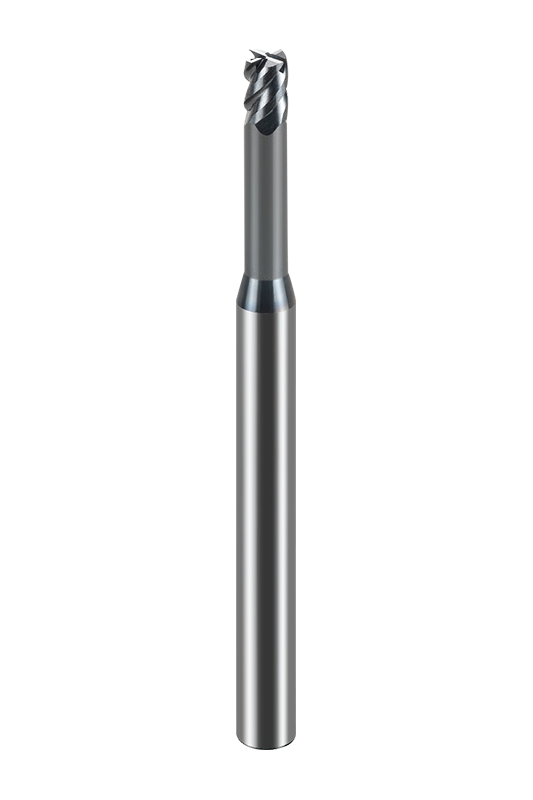

NNC-4TSP 4-Flute Deep Groove Flat Head End Mills compared with 2 flute or 3 flute milling cutters, it has higher cutting efficiency and stability.
The deep groove design is suitable for processing deep grooves, narrow grooves, etc., which can effectively remove chips and reduce cutting resistance. The flat head design, with a flat bottom, is suitable for processing planes or right-angle steps.
The NNC-4TSP 4-flute deep groove flat head end mills are available in various sizes to meet various processing requirements. Commonly used diameters range from 1mm to 4mm, with different groove lengths and cutting lengths, such as 1×4, 2×8 and 4×20, allowing you to switch between finishing and roughing, which is both efficient and accurate. We use precision grinding technology and the latest chromium-aluminum composite coating technology to achieve excellent wear resistance and versatility.
