• High-hardness and high-toughness substrate manufacturing, special negative angle design, material processing before and after heat treatment, universal for both soft and hard materials.
• Can be used for CNC processing under high-speed conditions, oil mist, water cooling, oil cooling and other cooling environments.

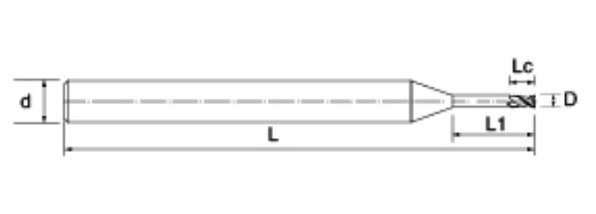

No. |
Diameter D |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNH-4TSP-D1-L4 | 1 | 1 | 4 | 50 | 4 | 4 |
NNH-4TSP-D1-L6 | 1 | 1 | 6 | 50 | 4 | 4 |
NNH-4TSP-D1-L8 | 1 | 1 | 8 | 50 | 4 | 4 |
NNH-4TSP-D1-L10 | 1 | 1 | 10 | 50 | 4 | 4 |
NNH-4TSP-D1-L12 | 1 | 1 | 12 | 50 | 4 | 4 |
NNH-4TSP-D1.5-L6 | 1.5 | 1.5 | 6 | 50 | 4 | 4 |
NNH-4TSP-D1.5-L8 | 1.5 | 1.5 | 8 | 50 | 4 | 4 |
NNH-4TSP-D1.5-L10 | 1.5 | 1.5 | 10 | 50 | 4 | 4 |
NNH-4TSP-D1.5-L12 | 1.5 | 1.5 | 12 | 50 | 4 | 4 |
NNH-4TSP-D1.5-L16 | 1.5 | 1.5 | 16 | 50 | 4 | 4 |
NNH-4TSP-D2-L8 | 2 | 2 | 8 | 50 | 4 | 4 |
NNH-4TSP-D2-L10 | 2 | 2 | 10 | 50 | 4 | 4 |
NNH-4TSP-D2-L12 | 2 | 2 | 12 | 50 | 4 | 4 |
NNH-4TSP-D2-L16 | 2 | 2 | 16 | 50 | 4 | 4 |
NNH-4TSP-D2-L18 | 2 | 2 | 18 | 50 | 4 | 4 |
NNH-4TSP-D3-L10 | 3 | 3 | 10 | 50 | 4 | 4 |
NNH-4TSP-D3-L12 | 3 | 3 | 12 | 50 | 4 | 4 |
NNH-4TSP-D3-L16 | 3 | 3 | 16 | 50 | 4 | 4 |
NNH-4TSP-D3-L20 | 3 | 3 | 20 | 60 | 6 | 4 |
NNH-4TSP-D3-L25 | 3 | 3 | 25 | 60 | 6 | 4 |
NNH-4TSP-D3-L30 | 3 | 3 | 30 | 75 | 6 | 4 |
NNH-4TSP-D4-L15 | 4 | 4 | 15 | 50 | 6 | 4 |
NNH-4TSP-D4-L20 | 4 | 4 | 20 | 60 | 6 | 4 |
NNH-4TSP-D4-L25 | 4 | 4 | 25 | 75 | 6 | 4 |
NNH-4TSP-D4-L35 | 4 | 4 | 35 | 75 | 6 | 4 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNH High Speed and High Hardness Carbide End Mills |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

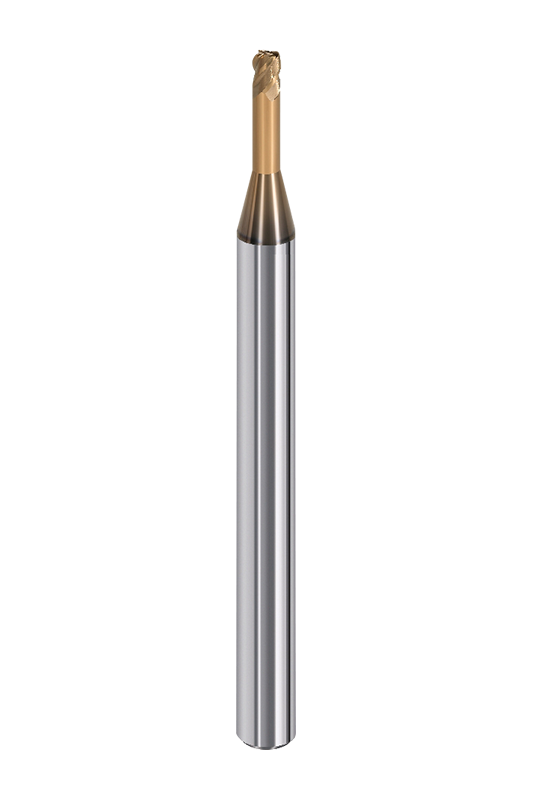

NNH-4TSP 4 flute deep groove high speed flat end mills are available in a variety of sizes to meet various processing needs. The product's tool diameter ranges from 1mm to 4mm, with a variety of edge lengths and total lengths to ensure efficient cutting performance at different depths and precision requirements. The flexible combination of different models provides a wide range of choices for various processing applications.
This end mill adopts a four-edge design with excellent rigidity and chip evacuation capabilities. The deep groove structure effectively reduces cutting resistance and improves processing stability. The flat head shape is very suitable for accurately machining flat-bottomed grooves or cavities, minimizing the need for secondary processing and improving overall processing quality.
The tool is manufactured with a high-performance AlTiSiN coating, which has excellent wear resistance and oxidation resistance, allowing it to maintain a sharp cutting edge even in a high-speed machining environment. The ultra-fine 0.4μm grain matrix provides excellent hardness and toughness, ensuring stability and durability during operation. In addition, the 45° helix angle design optimizes cutting fluidity, helps reduce vibration and improves surface finish.
This 4 flute deep groove high speed flat end mill is suitable for precision machining of various materials, including carbon steel, alloy steel, stainless steel (HRC35-50) and hardened steel (HRC50-55).
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4 Flute Deep Groove High Speed Flat End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4 Flute Deep Groove High Speed Flat End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4 Flute Deep Groove High Speed Flat End Mills Manufacturers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4 Flute Deep Groove High Speed Flat End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4 Flute Deep Groove High Speed Flat End Mills Company
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
