• High-hardness and high-toughness substrate manufacturing, special negative angle design, material processing before and after heat treatment, universal for both soft and hard materials.
• Can be used for CNC processing under high-speed conditions, oil mist, water cooling, oil cooling and other cooling environments.

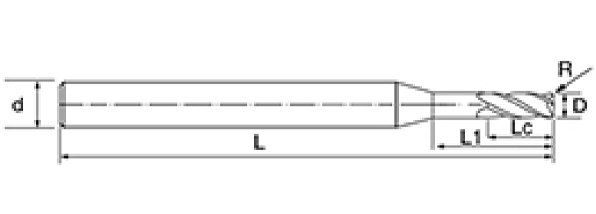

| No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
| NNH-4RSP-D1-L3 | 1 | 0.1 | 1 | 3 | 50 | 4 | 4 |
| NNH-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
| NNH-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1-L3 | 1 | 0.2 | 1 | 3 | 50 | 4 | 4 |
| NNH-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
| NNH-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1-L14 | 1 | 0.2 | 1 | 14 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L6 | 1.5 | 0.1 | 1.5 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L8 | 1.5 | 0.1 | 1.5 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L10 | 1.5 | 0.1 | 1.5 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L12 | 1.5 | 0.1 | 1.5 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
| NNH-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
| NNH-4RSP-D2-L8 | 2 | 0.5 | 2 | 8 | 50 | 4 | 4 |
| NNH-4RSP-D2-L10 | 2 | 0.5 | 2 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D2-L12 | 2 | 0.5 | 2 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D2-L16 | 2 | 0.5 | 2 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.1 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.1 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.1 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D3-L25 | 3 | 0.2 | 3 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.3 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.3 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.3 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 50 | 4 | 4 |
| NNH-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 50 | 4 | 4 |
| NNH-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 50 | 4 | 4 |
| NNH-4RSP-D3-L25 | 3 | 0.5 | 3 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.2 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.2 | 4 | 35 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.3 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.3 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.3 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.3 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.3 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.3 | 4 | 35 | 75 | 6 | 4 |
| NNH-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 50 | 6 | 4 |
| NNH-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 50 | 6 | 4 |
| NNH-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
| NNH-4RSP-D4-L25 | 4 | 0.5 | 4 | 25 | 75 | 6 | 4 |
| NNH-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
| NNH-4RSP-D4-L35 | 4 | 0.5 | 4 | 35 | 75 | 6 | 4 |
| Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
|
NNH High Speed and High Hardness Carbide End Mills |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
| D1~D3.5 | +0 -0.005 |
|||||||||
| D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
| D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 | |||||||

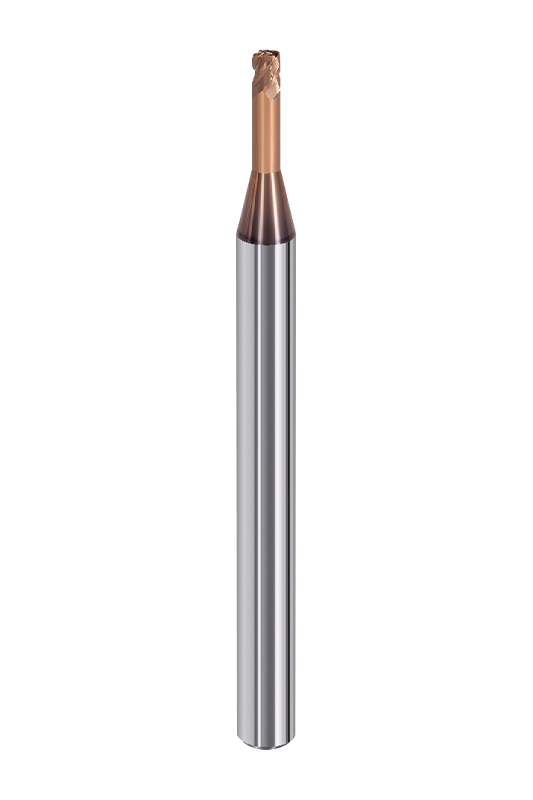

NNH-4RSP 4 flute high speed deep groove round nose end mills are available in a variety of sizes, from 1mm to 4mm in diameter, with a variety of lengths and cutting edge combinations. This allows users to freely choose the most suitable model according to the processing depth, surface shape and precision requirements, thereby improving flexibility and efficiency.
Compared with traditional flat-bottom or standard round nose end mills, the deep groove round nose design provides a smoother transition. This feature helps reduce cutting resistance and improve stability, making it particularly suitable for precision surface processing such as mold cavities and high-speed engraving.
NNH-4RSP adopts high-performance AlTiSiN coating with excellent heat and oxidation resistance. This enables the tool to maintain a sharp cutting edge even under high-speed and high-temperature conditions, thereby reducing tool wear. The ultra-fine particle (0.4μm) substrate combined with a 30° helix angle ensures smooth chip evacuation, further improving processing efficiency and ensuring reliability when processing high-hardness workpieces.
This series of end mills is suitable for a variety of materials, including carbon steel, alloy steel, pre-hardened steel (35–45HRC), heat-treated steel (45–55HRC), and stainless steel (≤30HRC). It can also be effectively used for copper alloys and other non-ferrous metals. Especially in high-speed and high-hardness machining applications, NNH-4RSP exhibits excellent wear resistance and stability.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4 Flute High Speed Deep Groove Round Nose End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4 Flute High Speed Deep Groove Round Nose End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4 Flute High Speed Deep Groove Round Nose End Mills Manufacturers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4 Flute High Speed Deep Groove Round Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4 Flute High Speed Deep Groove Round Nose End Mills Company
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are 4 Flute High Speed Deep Groove Round Nose End Mills Manufacturers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
