High Performance 2 Flute Flat End Mills Manufacturers

Home / Products / Solid Carbide End Mills / NNH High Speed and High Hardness Carbide End Mills / High Performance 2 Flute Flat End Mills
View All Projects

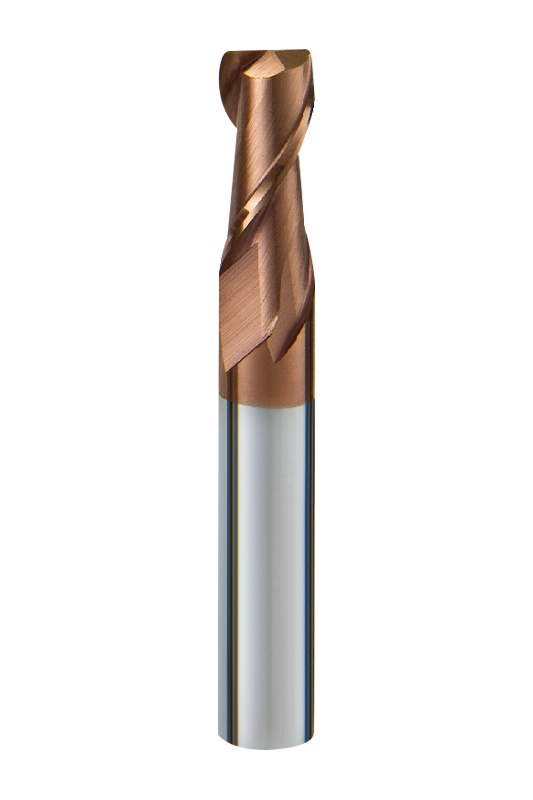

High Performance 2 Flute Flat End Mills

High Performance 2 Flute Flat End Mills

 •  High-hardness and high-toughness substrate manufacturing, special negative angle design, material processing before and after heat treatment, universal for both soft and hard materials.
 •  Can be used for CNC processing under high-speed conditions, oil mist, water cooling, oil cooling and other cooling environments.

  • High Performance 2 Flute Flat End Mills
Contact Us

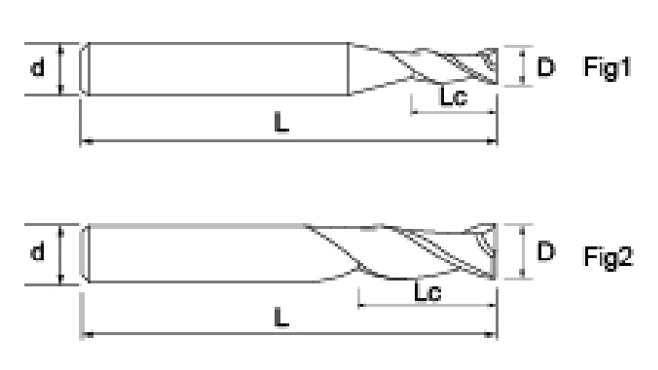

No.

Diameter

D

Flute Length

Lc

Overall Length

L

Shank Dia

d

Blade Count

F
NNH-2T-D1 1 3 50 4 2
NNH-2T-D1 1 3 50 6 2
NNH-2T-D1.5 1.5 4 50 4 2
NNH-2T-D1.5 1.5 4 50 6 2
NNH-2T-D2 2 6 50 4 2
NNH-2T-D2 2 6 50 6 2
NNH-2T-D2.5 2.5 6 50 4 2
NNH-2T-D2.5 2.5 6 50 6 2
NNH-2T-D3 3 8 50 4 2
NNH-2T-D3 3 8 50 6 2
NNH-2T-D3 3 8 50 3 2
NNH-2T-D3.5 3.5 10 50 4 2
NNH-2T-D3.5 3.5 10 50 6 2
NNH-2T-D4 4 10 50 4 2
NNH-2T-D4 4 10 50 6 2
NNH-2T-D5 5 13 50 5 2
NNH-2T-D5 5 13 50 6 2
NNH-2T-D6 6 15 50 6 2
NNH-2T-D8 8 20 60 8 2
NNH-2T-D10 10 25 75 10 2
NNH-2T-D12 12 30 75 12 2
NNH-2T-D16 16 45 100 16 2
NNH-2T-D20 20 45 100 20 2

Processed Materials Pre-Hardened Steel
   40~50HRC		 Hardened Steel
50~60HRC		 Hardened Steel
60~68HRC
Diameter
(mm)		 Rotational Speed
(min-1)		 Feed Speed
(mm/min)		 Rotational Speed
(min-1)		 Feed Speed
(mm/min)		 Rotational Speed
(min-1)		 Feed Speed
(mm/min)
1    40000  160    40000  160  32000  130
2    40000  400    24000  240  16000  160
3    32000  510    16000  255  11000  175
4    24000  625    12000  310  8000  210
5    19000  685    9500  340  6400  230
6    16000  770    8000  385  5300  255
8    12000  770    6000  385  4000  255
10    9600  770    4800  385  3200  255
12    8000  800    4000  400  2700  270
14    6800  680    3400  340  2300  230
16    6000  600    3000  300  2000  200
18    5300  530    2700  270  1800  180
20    4800  480    2400  240  1600  160

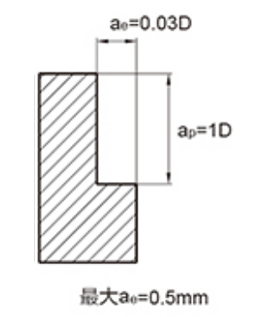

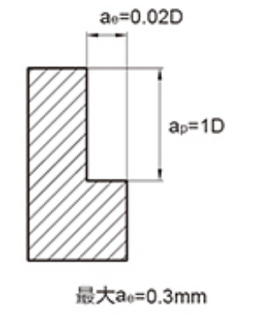

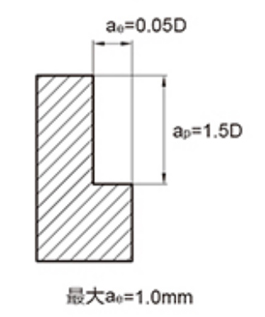

Maximum Cutting Depth

1. Please use high-precision and high rigidity equipment and fixtures.
2. When the rigidity of the machine tool and workpiece installation is poor, vibration and abnormal sound may occur. In this case, the speed and feed rate in the table above should be reduced year-on-year.
3. Please use air cooling or MQL (minimum amount of oil mist cooling).
4. It is recommended to use sequential milling for side milling.
5. Minimize the tool suspension length as much as possible without interference.

About us
Changzhou Maiteng Tools Co.,Ltd.
  • 0

    Enterprise establishment

  • 0+

    Employees

Changzhou Maiteng Tools Co.,Ltd.

Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are High Performance 2 Flute Flat End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional High Performance 2 Flute Flat End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.

FAQ
  • After we send you the inquiry, how long will it take to receive a response?

    We will reply to you within 12 hours after receiving the inquiry on weekdays.

  • Are you a direct manufacturer or a trading company?

    We are manufacturers, we produce and sell ourselves.

  • What products can you offer?

    We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional High Performance 2 Flute Flat End Mills Manufacturers.

  • What are the main application areas involved in your product?

    Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.

  • Can you make customized products?

    Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom High Performance 2 Flute Flat End Mills.

  • What is the production capacity of your company?

    We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are High Performance 2 Flute Flat End Mills Company

  • How does your company ensure product quality?

    Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
    Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.

  • What is the payment method?

    When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
