• High-hardness and high-toughness substrate manufacturing, special negative angle design, material processing before and after heat treatment, universal for both soft and hard materials.
• Can be used for CNC processing under high-speed conditions, oil mist, water cooling, oil cooling and other cooling environments.

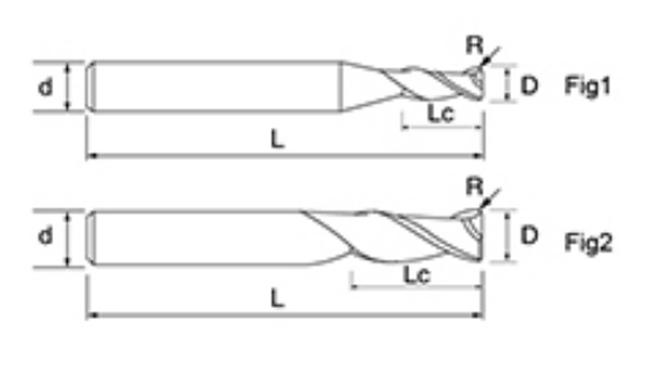

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNH-2R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 2 |
NNH-2R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 6 | 2 |
NNH-2R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 2 |
NNH-2R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 6 | 2 |
NNH-2R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 2 |
NNH-2R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 6 | 2 |
NNH-2R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 2 |
NNH-2R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 6 | 2 |
NNH-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 3 | 2 |
NNH-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 4 | 2 |
NNH-2R-D3-R0.2 | 3 | 0.2 | 8 | 50 | 6 | 2 |
NNH-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 3 | 2 |
NNH-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 2 |
NNH-2R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 6 | 2 |
NNH-2R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 4 | 2 |
NNH-2R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 6 | 2 |
NNH-2R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 4 | 2 |
NNH-2R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 6 | 2 |
NNH-2R-D4-R1 | 4 | 1 | 10 | 50 | 4 | 2 |
NNH-2R-D4-R1 | 4 | 1 | 10 | 50 | 6 | 2 |
NNH-2R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 5 | 2 |
NNH-2R-D5-R0.5 | 5 | 0.5 | 13 | 50 | 6 | 2 |
NNH-2R-D5-R1 | 5 | 1 | 13 | 50 | 5 | 2 |
NNH-2R-D5-R1 | 5 | 1 | 13 | 50 | 6 | 2 |
NNH-2R-D6-R0.2 | 6 | 0.2 | 16 | 50 | 6 | 2 |
NNH-2R-D6-R0.5 | 6 | 0.5 | 16 | 50 | 6 | 2 |
NNH-2R-D6-R1 | 6 | 1 | 16 | 50 | 6 | 2 |
NNH-2R-D8-R0.2 | 8 | 0.2 | 20 | 60 | 8 | 2 |
NNH-2R-D8-R0.3 | 8 | 0.3 | 20 | 60 | 8 | 2 |
NNH-2R-D8-R0.5 | 8 | 0.5 | 20 | 60 | 8 | 2 |
NNH-2R-D8-R1 | 8 | 1 | 20 | 60 | 8 | 2 |
NNH-2R-D10-R0.2 | 10 | 0.2 | 25 | 75 | 10 | 2 |
NNH-2R-D10-R0.3 | 10 | 0.3 | 25 | 75 | 10 | 2 |
NNH-2R-D10-R0.5 | 10 | 0.5 | 25 | 75 | 10 | 2 |
NNH-2R-D10-R1 | 10 | 1 | 25 | 75 | 10 | 2 |
NNH-2R-D10-R1.5 | 10 | 1.5 | 25 | 75 | 10 | 2 |
NNH-2R-D10-R2 | 10 | 2 | 25 | 75 | 10 | 2 |
NNH-2R-D12-R0.5 | 12 | 0.5 | 30 | 75 | 12 | 2 |
NNH-2R-D12-R1 | 12 | 1 | 30 | 75 | 12 | 2 |
NNH-2R-D12-R2 | 12 | 2 | 30 | 75 | 12 | 2 |
NNH-2R-D12-R3 | 12 | 3 | 30 | 75 | 12 | 2 |
NNH-2R-D16-R1 | 16 | 1 | 45 | 100 | 16 | 2 |
NNH-2R-D16-R2 | 16 | 2 | 45 | 100 | 16 | 2 |
NNH-2R-D16-R3 | 16 | 3 | 45 | 100 | 16 | 2 |
NNH-2R-D20-R1 | 20 | 1 | 50 | 100 | 20 | 2 |
NNH-2R-D20-R2 | 20 | 2 | 50 | 100 | 20 | 2 |
NNH-2R-D20-R3 | 20 | 3 | 50 | 100 | 20 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNH High Speed and High Hardness Carbide End Mills |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

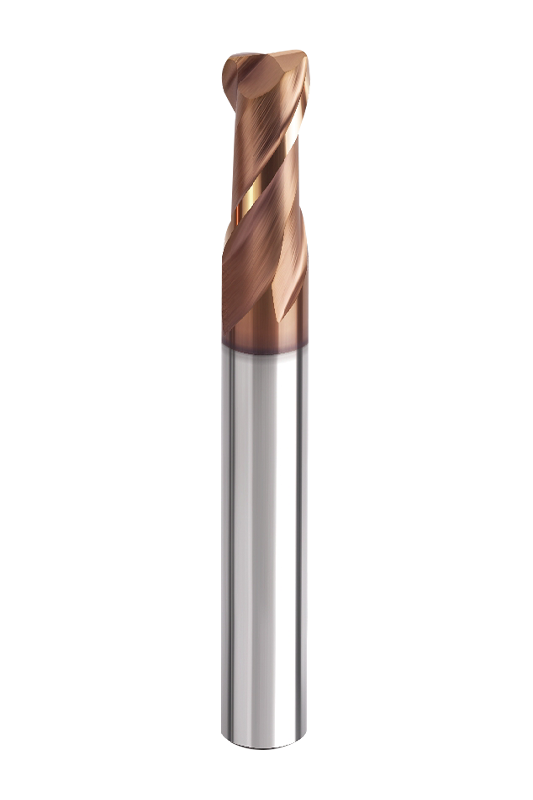

NNH-2R high-performance 2-flute round nose end mills are available in a wide range of sizes and specifications, covering a wide range of cutting tools from small to larger diameters. Sub-models are carefully categorized by length, cutting diameter and corner radius, allowing users to easily find the perfect combination for specific part geometries and precision requirements.
These end mills feature a specially designed round nose tip and double-flute structure to effectively reduce cutting resistance and improve chip evacuation. Under high-speed cutting conditions, they not only achieve high feed rates and excellent surface finish, but also minimize tool wear. The reinforced round nose section can easily handle harder materials while maintaining smooth and stable cutting performance.
Manufactured from high-quality carbide, the NNH-2R end mills undergo an advanced coating process and high-precision grinding to provide excellent results at high temperatures and spindle speeds. The coating ensures excellent wear resistance, while precision grinding ensures sharp, consistent cutting edges for better dimensional control and higher-quality surface finish.
These end mills are suitable for a wide range of materials and excel in high-speed, high-hardness applications such as hardened steel, stainless steel and die steel. They also perform well in common steels and copper alloys.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are High Performance 2 Flute Round Nose End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional High Performance 2 Flute Round Nose End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional High Performance 2 Flute Round Nose End Mills Manufacturers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom High Performance 2 Flute Round Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are High Performance 2 Flute Round Nose End Mills Company
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
