• Special knife design, combined with advanced polishing and passivation technology, effectively prevents vibration and solves the problem of sticking chips.
• High-performance aluminum knife, can achieve ultra-high metal removal rate and higher requirements for appearance effect.

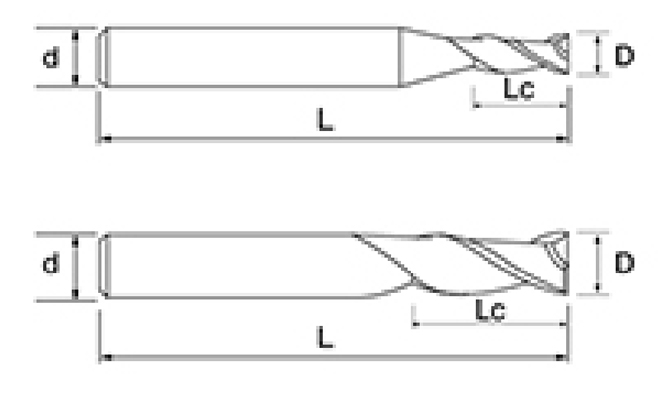

No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNL-2T-D1 | 1 | 3 | 50 | 4 | 2/3 |
NNL-2T-D1.5 | 1.5 | 4 | 50 | 4 | 2/3 |
NNL-2T-D2 | 2 | 6 | 50 | 4 | 2/3 |
NNL-2T-D2.5 | 2.5 | 7 | 50 | 4 | 2/3 |
NNL-2T-D3 | 3 | 8 | 50 | 4 | 2/3 |
NNL-2T-D3 | 3 | 8 | 50 | 6 | 2/3 |
NNL-2T-D3.5 | 3.5 | 10 | 50 | 4 | 2/3 |
NNL-2T-D3.5 | 3.5 | 10 | 50 | 6 | 2/3 |
NNL-2T-D4 | 4 | 12 | 50 | 4 | 2/3 |
NNL-2T-D4 | 4 | 12 | 50 | 6 | 2/3 |
NNL-2T-D4.5 | 4.5 | 12 | 50 | 6 | 2/3 |
NNL-2T-D5 | 5 | 15 | 50 | 6 | 2/3 |
NNL-2T-D5.5 | 5.5 | 15 | 50 | 6 | 2/3 |
NNL-2T-D6 | 6 | 18 | 50 | 6 | 2/3 |
NNL-2T-D7 | 7 | 20 | 60 | 8 | 2/3 |
NNL-2T-D8 | 8 | 24 | 60 | 8 | 2/3 |
NNL-2T-D9 | 9 | 25 | 75 | 10 | 2/3 |
NNL-2T-D10 | 10 | 30 | 75 | 10 | 2/3 |
NNL-2T-D11 | 11 | 30 | 75 | 12 | 2/3 |
NNL-2T-D12 | 12 | 30 | 75 | 12 | 2/3 |
NNL-2T-D14 | 14 | 35 | 75 | 14 | 2/3 |
NNL-2T-D16 | 16 | 45 | 100 | 16 | 2/3 |
NNL-2T-D18 | 18 | 45 | 100 | 18 | 2/3 |
NNL-2T-D20 | 20 | 50 | 100 | 20 | 2/3 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNL Carbide End Mills for Aluminum Machining | D0.5~D3.5 | +0 -0.012 |
R0.5~R1.75 | +/-0.005 | CR0.2~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 |
D4.0~D10.0 | +0 -0.015 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR5.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.018 |
R6.0~R10.0 | +/-0.01 |

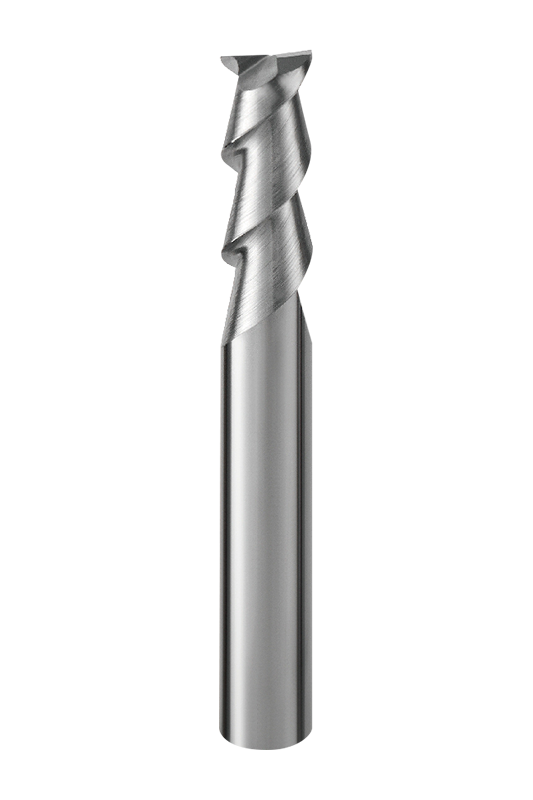

The 2 Flute End Mills for Aluminum Machining (NNL-2T series) offer a wide range of size options, with diameters from 1mm to 20mm and cutter lengths ranging from 3mm to 50mm. With various overall lengths and shank diameters available, the tools can be flexibly matched to meet different machining requirements. Whether for fine micro-machining or large-scale, high-efficiency cutting, the appropriate specifications can be selected, offering flexibility for diverse application scenarios.
Featuring a 45° spiral angle and carefully optimized cutting edge geometry, the tool is designed to better control cutting forces during high-speed machining, reducing vibrations and improving machining stability. This special tool geometry effectively prevents chip adhesion between the tool and the workpiece, ensuring smoother chip removal, making the milling process more efficient and fluid.
With advanced polishing and passivation processes, the NNL-2T milling cutter surface is smooth and flawless, reducing frictional resistance during cutting and effectively lowering cutting temperatures. The 0.5μm high-toughness, anti-chipping material further enhances the tool's wear resistance and chip build-up prevention, allowing it to maintain sharpness and durability during high-speed aluminum alloy milling, thus extending tool life.
