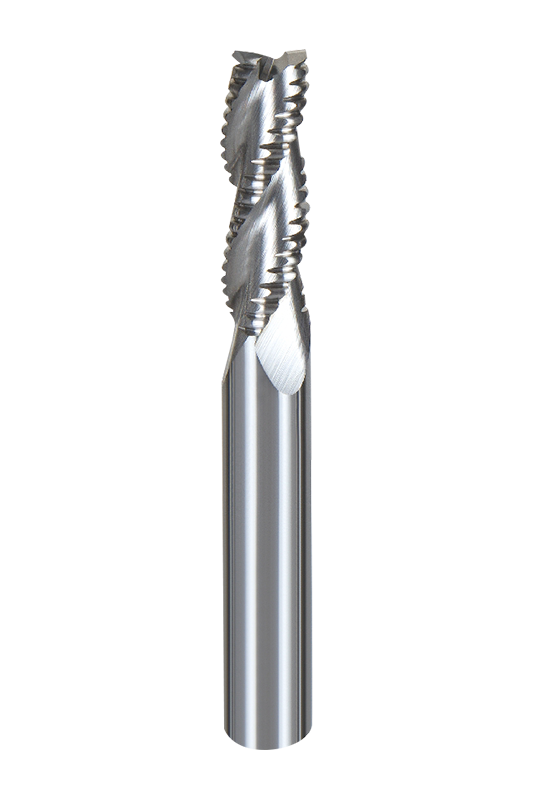

3 Flute Wave Edge End Mills for Aluminum Milling

3 Flute Wave Edge End Mills for Aluminum Milling

 •  Special knife design, combined with advanced polishing and passivation technology, effectively prevents vibration and solves the problem of sticking chips.
 •  High-performance aluminum knife, can achieve ultra-high metal removal rate and higher requirements for appearance effect.

  • 3 Flute Wave Edge End Mills for Aluminum Milling
Contact Us

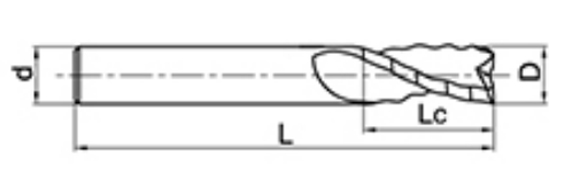

No.

Diameter

D

Flute Length

Lc

Overall Length

L

Shank Dia

d

Blade Count

F
NNL-3T-D6 6 16 50 6 3
NNL-3T-D8 8 20 60 8 3
NNL-3T-D10 10 25 75 10 3
NNL-3T-D12 12 30 75 12 3
NNL-3T-D16 16 45 100 16 3
NNL-3T-D20 20 45 100 20 3

Processed Materials Aluminum Alloy Silicon Aluminum Alloy Si≤10%
Cutting Speed 250m/min 200m/min
Diameter
(mm)		 Rotational Speed
(min⁻¹)		 Feed Speed
(mm/min)		 Rotational Speed
(min⁻¹)		 Feed Speed
(mm/min)
6 13000 3000 10600 1900
8 10000 3000 8000 1900
10 8000 2900 6500 1850
12 6600 2700 5300 1700
14 5700 2600 4600 1650
16 5000 2550 4000 1600
18 4400 2500 3500 1550
20 4000 2400 3200 1500

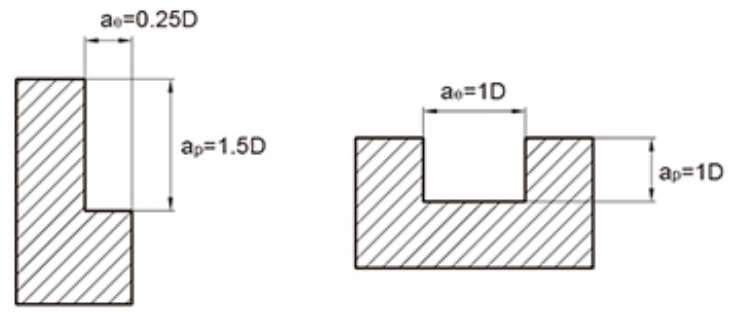

Maximum Cutting Depth

1. The above table is based on the benchmark values for side milling. The cutting conditions for slot milling are based on 70% of the cutting speed and 50% of the feed rate in the table above.
2. Please use machine tools and tool holders with high rigidity and precision. When the rigidity of the machine tool and workpiece installation is poor, vibration and abnormal noise may occur. At this time, the recommended speed and feed rate in the table above should be reduced year-on-year.
3. When the cutting depth is small, the rotational speed and feed rate can be increased year-on-year.
4. Please use water-soluble cutting fluid.
5. Side milling is recommended for sequential milling.
6. Minimize the tool overhang length as much as possible without interference.
