• Special knife design, combined with advanced polishing and passivation technology, effectively prevents vibration and solves the problem of sticking chips.
• High-performance aluminum knife, can achieve ultra-high metal removal rate and higher requirements for appearance effect.

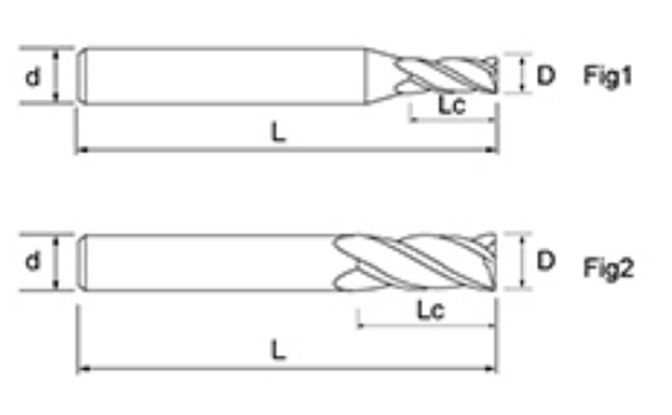

| No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
| NNL-3T-D1.0 | 1.0 | 3 | 50 | 4 | 3 |
| NNL-3T-D1.5 | 1.5 | 4 | 50 | 4 | 3 |
| NNL-3T-D2.0 | 2.0 | 6 | 50 | 4 | 3 |
| NNL-3T-D2.5 | 2.5 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0S | 3.0 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0 | 3.0 | 8 | 50 | 6 | 3 |
| NNL-3T-D4.0S | 4.0 | 12 | 50 | 4 | 3 |
| NNL-3T-D4.0 | 4.0 | 12 | 50 | 6 | 3 |
| NNL-3T-D4.5 | 4.5 | 12 | 50 | 6 | 3 |
| NNL-3T-D5.0 | 5.0 | 15 | 50 | 6 | 3 |
| NNL-3T-D5.5 | 5.5 | 15 | 50 | 6 | 3 |
| NNL-3T-D6.0 | 6.0 | 18 | 50 | 6 | 3 |
| NNL-3T-D7.0 | 7.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D8.0 | 8.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D9.0 | 9.0 | 25 | 75 | 10 | 3 |
| NNL-3T-D10.0 | 10.0 | 30 | 75 | 10 | 3 |
| NNL-3T-D11.0 | 11.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D12.0 | 12.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D14.0 | 14.0 | 35 | 75 | 14 | 3 |
| NNL-3T-D16.0 | 16.0 | 45 | 100 | 16 | 3 |
| NNL-3T-D18.0 | 18.0 | 45 | 100 | 18 | 3 |
| NNL-3T-D20.0 | 20.0 | 50 | 100 | 20 | 3 |
| Processed Materials | Aluminum Alloy | Silicon Aluminum Alloy Si≤10% | ||
| Diameter (mm) |
Rotational Speed (min⁻¹) |
Feed Speed (mm/min) |
Rotational Speed (min⁻¹) |
Feed Speed (mm/min) |
| 1 | 40000 | 800 | 40000 | 600 |
| 2 | 40000 | 1200 | 32000 | 900 |
| 3 | 26500 | 1800 | 21000 | 1300 |
| 4 | 20000 | 2000 | 16000 | 1500 |
| 5 | 16000 | 1750 | 13000 | 1300 |
| 6 | 13000 | 1500 | 10600 | 1200 |
| 8 | 10000 | 1650 | 8000 | 1300 |
| 10 | 8000 | 1900 | 6500 | 1500 |
| 12 | 6600 | 1950 | 5300 | 1550 |
| 14 | 5700 | 2000 | 4600 | 1600 |
| 16 | 5000 | 2000 | 4000 | 1600 |
| 18 | 4400 | 2000 | 3500 | 1600 |
| 20 | 4000 | 2000 | 3200 | 1600 |

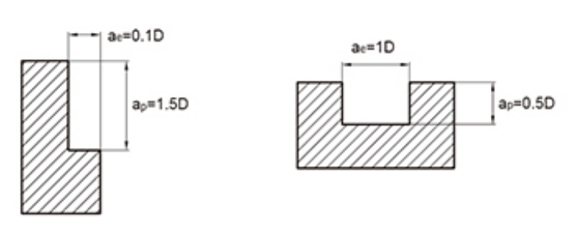

| Maximum Cutting Depth |  |
|||
1. The above table is based on the benchmark values for side milling. The cutting conditions for slot milling are based on 70% of the feed rate in the table above.
2. Please use machine tools and tool holders with high rigidity and precision. When the rigidity of the machine tool and workpiece installation is poor, vibration and abnormal noise may occur. At this time, the recommended speed and feed rate in the table above should be reduced year-on-year.
3. When the cutting depth is small, the rotational speed and feed rate can be increased year-on-year.
4. Please use water-soluble cutting fluid.
5. Side milling is recommended for sequential milling.
6. Minimize the tool overhang length as much as possible without interference.
| Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNL Carbide End Mills for Aluminum Machining | D0.5~D3.5 | +0 -0.012 |
R0.5~R1.75 | +/-0.005 | CR0.2~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 |
| D4.0~D10.0 | +0 -0.015 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR5.0 | +/-0.008 | +0 +0.5 |
||||
| D12.0~D20.0 | +0 -0.018 |
R6.0~R10.0 | +/-0.01 | |||||||

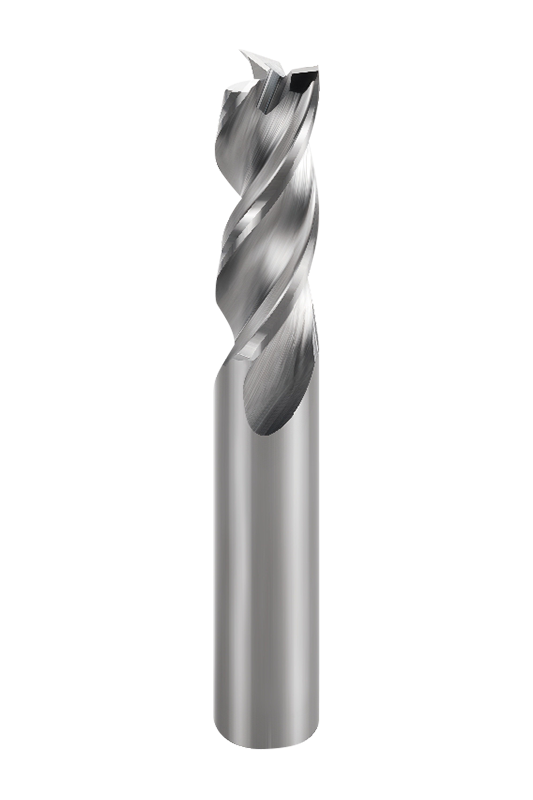

The Aluminum Milling Cutters 3 Flute End Mills (NNL-3T series) offer a variety of specifications, with cutter diameters ranging from 1.0mm to 20.0mm, and various options for cutter length and shank diameter to accommodate different machining needs. Whether for fine engraving or large-scale material removal, the appropriate model can be found to meet the flexibility requirements of efficient machining.
The tool features a unique three-flute design combined with a 45° spiral angle, optimizing the cutting force distribution and effectively reducing vibration during machining, thus improving machining stability. The special tool geometry enhances chip removal capabilities, reducing chip adhesion issues during the process and ensuring smoother cutting while maintaining a high-quality surface finish.
Made from selected 0.5μm high-toughness, anti-chipping material, and treated with precision grinding and advanced polishing and passivation processes, the tool surface becomes smoother, reducing cutting resistance and enhancing tool durability. The low friction characteristics, combined with high-precision machining, allow the tool to maintain excellent performance during high-speed operations.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Aluminum Milling Cutters 3 Flute End Mills Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Aluminum Milling Cutters 3 Flute End Mills Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Aluminum Milling Cutters 3 Flute End Mills Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom Aluminum Milling Cutters 3 Flute End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Aluminum Milling Cutters 3 Flute End Mills Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are Aluminum Milling Cutters 3 Flute End Mills Suppliers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
