• Diamond coating is used with advanced technology to obtain better coating adhesion.
• Advanced grinding technology ensures ultra-high coaxiality, high temperature resistance and wear resistance within an ultra-long effective diameter.

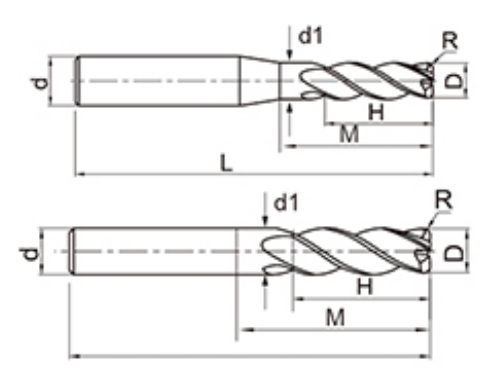

Model | Basic Dimensions(mm) | ||||||
D | R | H | M | d1 | d | L | |
NNS-4R-D3R0.2H20 | 3.0 | R0.2 | 20 | 9 | 2.8 | 3 | 60 |
NNS-4R-D3R0.5H20 | 3.0 | R0.5 | 20 | 9 | 2.8 | 3 | 60 |
NNS-4R-D4R0.2H25 | 4.0 | R0.2 | 25 | 12 | 3.7 | 4 | 60 |
NNS-4R-D4R0.5H25 | 4.0 | R0.5 | 25 | 12 | 3.7 | 4 | 60 |
NNS-4R-D6R0.2H35 | 6.0 | R0.2 | 35 | 20 | 5.6 | 6 | 75 |
NNS-4R-D6R0.5H35 | 6.0 | R0.5 | 35 | 20 | 5.6 | 6 | 75 |
NNS-4R-D6R1.0H35 | 6.0 | R1.0 | 35 | 20 | 5.6 | 6 | 75 |
NNS-4R-D8R0.5H35 | 8.0 | R0.5 | 35 | 25 | 7.6 | 8 | 75 |
NNS-4R-D8R1.0H35 | 8.0 | R1.0 | 35 | 25 | 7.6 | 8 | 75 |
NNS-4R-D10R0.5H50 | 10.0 | R0.5 | 50 | 35 | 9.6 | 10 | 100 |
NNS-4R-D10R1.0H50 | 10.0 | R1.0 | 50 | 35 | 9.6 | 10 | 100 |
NNS-4R-D12R0.5H50 | 12.0 | R0.5 | 50 | 35 | 11.4 | 12 | 100 |
NNS-4R-D12R1.0H50 | 12.0 | R1.0 | 50 | 35 | 11.4 | 12 | 100 |
NNS-4R-D16R0.5H80 | 16.0 | R0.5 | 80 | 60 | 15.6 | 16 | 150 |
NNS-4R-D16R1.0H80 | 16.0 | R1.0 | 80 | 60 | 15.6 | 16 | 150 |
NNS-4R-D3R0.5H30 | 3.0 | R0.5 | 30 | 9 | 2.8 | 3 | 75 |
NNS-4R-D4R0.5H30 | 4.0 | R0.5 | 30 | 12 | 3.7 | 4 | 75 |
NNS-4R-D3R0.5H30 | 3.0 | R0.5 | 30 | 9 | 2.8 | 3 | 100 |
NNS-4R-D4R0.5H30 | 4.0 | R0.5 | 30 | 12 | 3.7 | 4 | 100 |
NNS-4R-D6R0.2H40 | 6.0 | R0.2 | 40 | 25 | 5.6 | 6 | 100 |
NNS-4R-D6R0.5H40 | 6.0 | R0.5 | 40 | 25 | 5.6 | 6 | 100 |
NNS-4R-D6R1.0H40 | 6.0 | R1.0 | 40 | 25 | 5.6 | 6 | 100 |
NNS-4R-D8R0.5H40 | 8.0 | R0.5 | 40 | 30 | 7.5 | 8 | 100 |
NNS-4R-D8R1.0H40 | 8.0 | R1.0 | 40 | 30 | 7.5 | 8 | 100 |
NNS-4R-D6R0.2H50 | 6.0 | R0.2 | 50 | 35 | 5.6 | 6 | 150 |
NNS-4R-D6R0.5H50 | 6.0 | R0.5 | 50 | 35 | 5.6 | 6 | 150 |
NNS-4R-D6R1.0H50 | 6.0 | R1.0 | 50 | 35 | 5.6 | 6 | 150 |
NNS-4R-D8R0.5H60 | 8.0 | R0.5 | 60 | 40 | 7.5 | 8 | 150 |
NNS-4R-D8R1.0H60 | 8.0 | R1.0 | 60 | 40 | 7.5 | 8 | 150 |
NNS-4R-D10R0.5H60 | 10.0 | R0.5 | 60 | 40 | 9.4 | 10 | 150 |
NNS-4R-D10R1.0H60 | 10.0 | R1.0 | 60 | 40 | 9.4 | 10 | 150 |
NNS-4R-D12R0.5H70 | 12.0 | R0.5 | 70 | 50 | 11.6 | 12 | 150 |
NNS-4R-D12R1.0H70 | 12.0 | R1.0 | 70 | 50 | 11.6 | 12 | 150 |

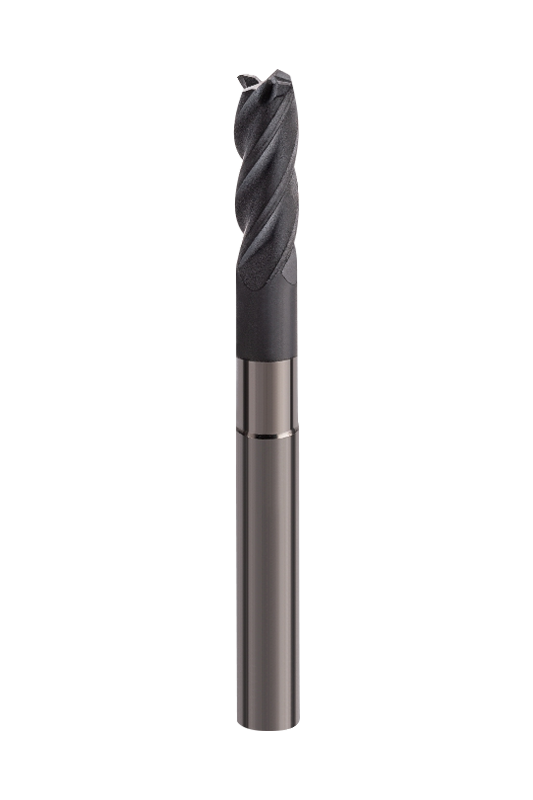

The NNS-4R series features a four-flute round nose design, combining high precision machining with superior durability. The round nose shape enhances impact resistance and reduces stress concentration during cutting, making it exceptionally effective for graphite machining. To address graphite’s brittle nature, the tool's edge geometry has been optimized to minimize cutting resistance and improve stability.
With a high-performance diamond coating, the tool offers enhanced adhesion, significantly improving wear resistance and high-temperature tolerance. This ensures a sharp cutting edge even under prolonged high-speed machining. Precision manufacturing ensures ultra-high concentricity, reducing tool runout and delivering superior surface finish quality.
This series provides a comprehensive range of diameter, cutting length, shank diameter, and radius options to accommodate various machining needs. Whether for intricate engraving or large-scale cutting, there is an ideal specification available, ensuring machining flexibility and efficiency for graphite molds and precision components.
