• Diamond coating is used with advanced technology to obtain better coating adhesion.
• Advanced grinding technology ensures ultra-high coaxiality, high temperature resistance and wear resistance within an ultra-long effective diameter.

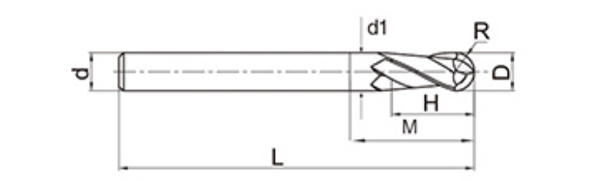

Model | Basic Dimensions(mm) | ||||||
D | R | H | M | d1 | d | L | |
NNS-2B-R1.5M20 | 3.0 | R1.5 | 6 | 20 | 2.8 | 3 | 60 |
NNS-2B-R2M20 | 4.0 | R20 | 8 | 25 | 3.7 | 4 | 60 |
NNS-2B-R6M35 | 6.0 | R3.0 | 15 | 35 | 5.6 | 6 | 75 |
NNS-2B-R8M30 | 8.0 | R4.0 | 20 | 30 | 7.6 | 8 | 75 |
NNS-2B-R10M50 | 10.0 | R5.0 | 25 | 50 | 9.4 | 10 | 100 |
NNS-2B-R12M50 | 12.0 | R6.0 | 25 | 50 | 11.4 | 12 | 100 |
NNS-2B-R16M60 | 16.0 | R8.0 | 35 | 60 | 15.6 | 16 | 150 |
NNS-2B-R3M30 | 3.0 | R1.5 | 6 | 30 | 2.8 | 3 | 75 |
NNS-2B-R4M25 | 4.0 | R20 | 8 | 25 | 3.7 | 4 | 75 |
NNS-2B-R3M30 | 3.0 | R1.5 | 6 | 30 | 2.8 | 3 | 100 |
NNS-2B-R4M30 | 4.0 | R2.0 | 8 | 30 | 3.7 | 4 | 100 |
NNS-2B-R6M40 | 6.0 | R3.0 | 15 | 40 | 5.6 | 6 | 100 |
NNS-2B-R8M40 | 8.0 | R4.0 | 25 | 40 | 7.5 | 8 | 100 |
NNS-2B-R6M40 | 6.0 | R3.0 | 15 | 40 | 5.6 | 6 | 150 |
NNS-2B-R8M50 | 8.0 | R4.0 | 25 | 50 | 7.5 | 8 | 150 |
NNS-2B-R10M60 | 10.0 | R5.0 | 25 | 60 | 9.4 | 10 | 150 |
NNS-2B-R12M60 | 12.0 | R6.0 | 25 | 60 | 11.6 | 12 | 150 |

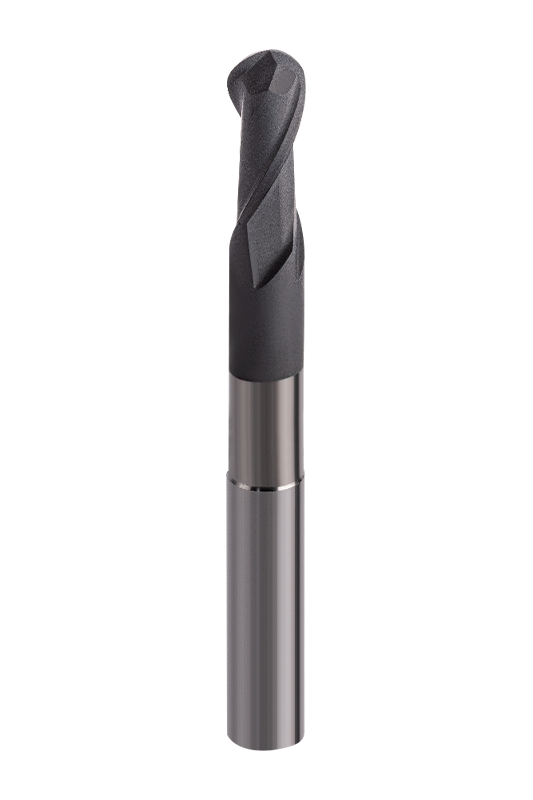

NNS-2B Graphite Machining Ball Nose End Mills feature an optimized ball head design combined with a 30° cutting angle to achieve superior cutting performance. The 30° cutting angle effectively reduces cutting resistance, enhances chip evacuation, and ensures smooth machining while minimizing built-up edge formation. This also decreases tool wear and extends overall tool life.
With a high-performance diamond coating, this tool offers exceptional coating adhesion, significantly improving wear resistance and heat resistance. Advanced grinding technology ensures outstanding concentricity over an extended cutting length, guaranteeing machining precision and enhancing tool stability and durability.
A wide range of size specifications is available, covering various diameters, cutting lengths, and effective lengths to meet different machining needs. The flexible combination of specifications allows users to select the most suitable tool model, making it an ideal choice for both precision machining and high-efficiency cutting.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Graphite Machining 2 Flute Ball Nose End Mills Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Graphite Machining 2 Flute Ball Nose End Mills Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Graphite Machining 2 Flute Ball Nose End Mills Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom Graphite Machining 2 Flute Ball Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Graphite Machining 2 Flute Ball Nose End Mills Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
