• High precision and high efficiency can achieve a high-quality processing surface.

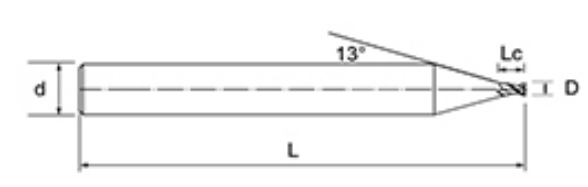

No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2TS-D0.05 | 0.05 | 0.1 | 50 | 4 | 2 |
NNX-2TS-D0.06 | 0.06 | 0.12 | 50 | 4 | 2 |
NNX-2TS-D0.07 | 0.07 | 0.14 | 50 | 4 | 2 |
NNX-2TS-D0.08 | 0.08 | 0.16 | 50 | 4 | 2 |
NNX-2TS-D0.09 | 0.09 | 0.18 | 50 | 4 | 2 |
NNX-2TS-D0.1 | 0.1 | 0.2 | 50 | 4 | 2 |
NNX-2TS-D0.15 | 0.15 | 0.3 | 50 | 4 | 2 |
NNX-2TS-D0.2 | 0.2 | 0.4 | 50 | 4 | 2 |
NNX-2TS-D0.25 | 0.25 | 0.5 | 50 | 4 | 2 |
NNX-2TS-D0.3 | 0.3 | 0.6 | 50 | 4 | 2 |
NNX-2TS-D0.35 | 0.35 | 0.7 | 50 | 4 | 2 |
NNX-2TS-D0.4 | 0.4 | 0.8 | 50 | 4 | 2 |
NNX-2TS-D0.45 | 0.45 | 0.9 | 50 | 4 | 2 |
NNX-2TS-D0.5 | 0.5 | 1 | 50 | 4 | 2 |
NNX-2TS-D0.55 | 0.55 | 1.1 | 50 | 4 | 2 |
NNX-2TS-D0.6 | 0.6 | 1.2 | 50 | 4 | 2 |
NNX-2TS-D0.65 | 0.65 | 1.3 | 50 | 4 | 2 |
NNX-2TS-D0.7 | 0.7 | 1.4 | 50 | 4 | 2 |
NNX-2TS-D0.75 | 0.75 | 1.5 | 50 | 4 | 2 |
NNX-2TS-D0.8 | 0.8 | 1.6 | 50 | 4 | 2 |
NNX-2TS-D0.85 | 0.85 | 1.7 | 50 | 4 | 2 |
NNX-2TS-D0.9 | 0.9 | 1.8 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

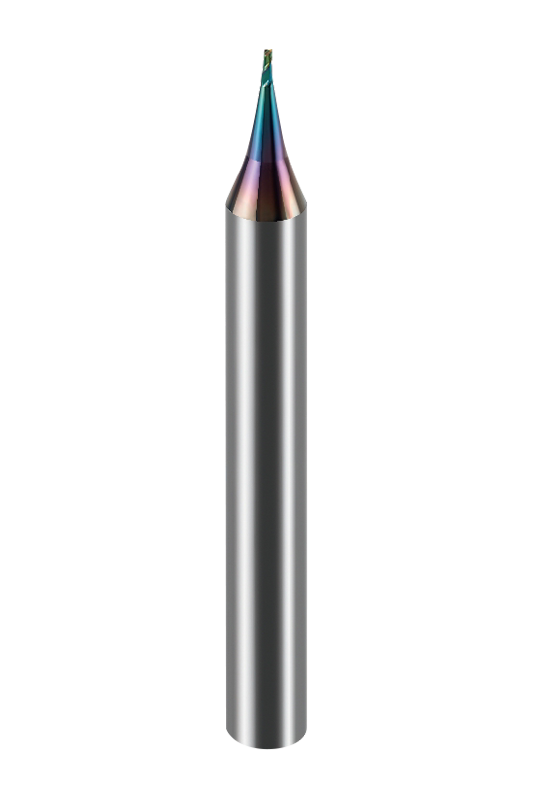

NNX-2TS 2 Flute Micro Diameter End Mills For Copper Electrode Milling is specially designed for copper electrode processing. It provides a variety of tool diameter specifications from 0.05mm to 0.9mm to meet different precision processing requirements. Users can freely choose the appropriate model according to the electrode structure and processing accuracy requirements to achieve efficient and stable cutting performance.
The special flat bottom design and 30° helix angle are used to optimize the cutting process, reduce cutting resistance, improve chip removal ability, and effectively reduce the common built-up edge problem in the copper material processing process. The micro-diameter tool is combined with high-precision manufacturing technology to ensure the surface finish and dimensional stability of the processing, making it particularly suitable for high-precision electrode engraving and fine contour processing.
The tool uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology, which gives it ultra-high hardness and extremely low friction coefficient, effectively reducing tool wear and significantly extending its service life. Further improve cutting smoothness, reduce copper chip adhesion problems, and ensure processing accuracy.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Micro Diameter End Mills For Copper Electrode Milling Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Micro Diameter End Mills For Copper Electrode Milling Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Micro Diameter End Mills For Copper Electrode Milling Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Micro Diameter End Mills For Copper Electrode Milling.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Micro Diameter End Mills For Copper Electrode Milling Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
