• High precision and high efficiency can achieve high-quality processing surface of copper electrodes.

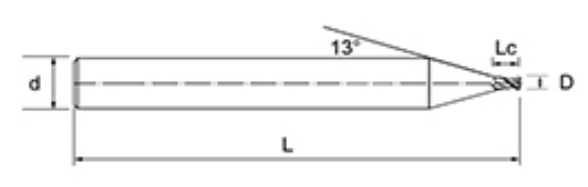

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2RS-D0.2 | 0.2 | 0.02 | 0.4 | 50 | 4 | 2 |
NNX-2RS-D0.2 | 0.2 | 0.05 | 0.4 | 50 | 4 | 2 |
NNX-2RS-D0.3 | 0.3 | 0.02 | 0.6 | 50 | 4 | 2 |
NNX-2RS-D0.3 | 0.3 | 0.05 | 0.6 | 50 | 4 | 2 |
NNX-2RS-D0.4 | 0.4 | 0.02 | 0.8 | 50 | 4 | 2 |
NNX-2RS-D0.4 | 0.4 | 0.05 | 0.8 | 50 | 4 | 2 |
NNX-2RS-D0.4 | 0.4 | 0.1 | 0.8 | 50 | 4 | 2 |
NNX-2RS-D0.5 | 0.5 | 0.02 | 1.0 | 50 | 4 | 2 |
NNX-2RS-D0.5 | 0.5 | 0.05 | 1.0 | 50 | 4 | 2 |
NNX-2RS-D0.5 | 0.5 | 0.1 | 1.0 | 50 | 4 | 2 |
NNX-2RS-D0.6 | 0.6 | 0.02 | 1.2 | 50 | 4 | 2 |
NNX-2RS-D0.6 | 0.6 | 0.05 | 1.2 | 50 | 4 | 2 |
NNX-2RS-D0.6 | 0.6 | 0.1 | 1.2 | 50 | 4 | 2 |
NNX-2RS-D0.6 | 0.6 | 0.2 | 1.2 | 50 | 4 | 2 |
NNX-2RS-D0.8 | 0.8 | 0.02 | 1.6 | 50 | 4 | 2 |
NNX-2RS-D0.8 | 0.8 | 0.05 | 1.6 | 50 | 4 | 2 |
NNX-2RS-D0.8 | 0.8 | 0.1 | 1.6 | 50 | 4 | 2 |
NNX-2RS-D0.8 | 0.8 | 0.2 | 1.6 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

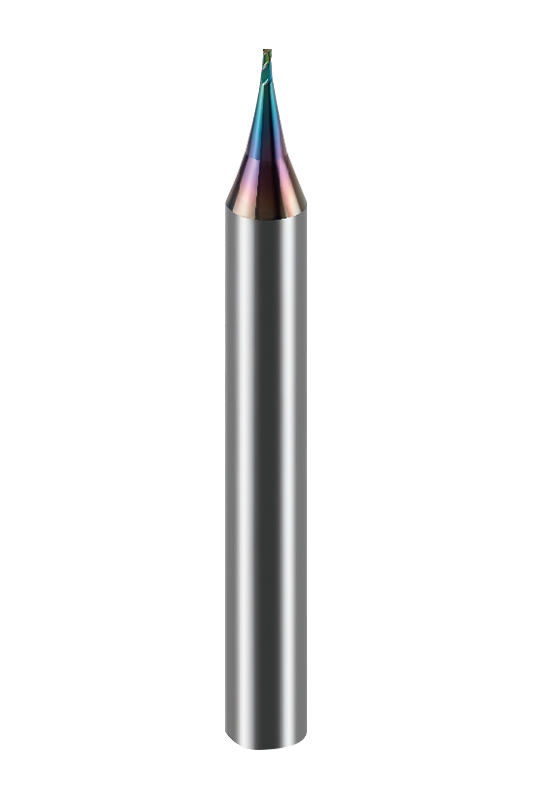

NNX-2RS 2 flute micro diameter round nose end mills for copper electrode machining, providing a variety of size combinations to meet different precision processing needs. The products cover diameters from 0.2mm to 0.8mm, with different blade lengths and fillet radii, which can be freely selected according to specific processing requirements to ensure the best processing effect.
This series of milling cutters adopts a unique round nose design, which allows the tool to maintain stability during fine cutting, while taking into account high finish and excellent chip removal performance. The 30° helix angle optimizes the cutting force distribution, effectively reduces cutting resistance, and improves the quality of the processed surface.
The tool surface is treated with DLC coating, combined with 0.2μm ultra-fine particle tool substrate, giving the product extremely high hardness and wear resistance, greatly extending the tool life, and ensuring extremely high dimensional accuracy. The high-rigidity 4mm shank diameter further improves the tool's shock resistance, keeps it stable during high-speed processing, and provides excellent cutting performance for precision copper electrode processing.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Micro Diameter Round Nose End Mills for Copper Electrode Machining Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Micro Diameter Round Nose End Mills for Copper Electrode Machining Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Micro Diameter Round Nose End Mills for Copper Electrode Machining Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Micro Diameter Round Nose End Mills for Copper Electrode Machining.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Micro Diameter Round Nose End Mills for Copper Electrode Machining Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
