• High precision and high efficiency can achieve a high-quality processing surface.
• High precision and high efficiency can achieve a high-quality processing surface.

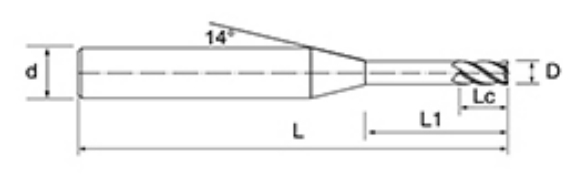

| No. |
Diameter D |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
| NNX-4TSP-D1-L4 | 1 | 1.5 | 4 | 50 | 4 | 4 |
| NNX-4TSP-D1-L5 | 1 | 1.5 | 5 | 50 | 4 | 4 |
| NNX-4TSP-D1-L6 | 1 | 1.5 | 6 | 50 | 4 | 4 |
| NNX-4TSP-D1-L8 | 1 | 1.5 | 8 | 50 | 4 | 4 |
| NNX-4TSP-D1-L10 | 1 | 1.5 | 10 | 50 | 4 | 4 |
| NNX-4TSP-D1-L12 | 1 | 1.5 | 12 | 50 | 4 | 4 |
| NNX-4TSP-D1-L14 | 1 | 1.5 | 14 | 50 | 4 | 4 |
| NNX-4TSP-D1-L16 | 1 | 1.5 | 16 | 50 | 4 | 4 |
| NNX-4TSP-D1-L18 | 1 | 1.5 | 18 | 50 | 4 | 4 |
| NNX-4TSP-D1-L20 | 1 | 1.5 | 20 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L6 | 1.5 | 2.3 | 6 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L8 | 1.5 | 2.3 | 8 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L10 | 1.5 | 2.3 | 10 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L12 | 1.5 | 2.3 | 12 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L14 | 1.5 | 2.3 | 14 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L16 | 1.5 | 2.3 | 16 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L18 | 1.5 | 2.3 | 18 | 50 | 4 | 4 |
| NNX-4TSP-D1.5-L20 | 1.5 | 2.3 | 20 | 50 | 4 | 4 |
| NNX-4TSP-D2-L6 | 2 | 3 | 6 | 50 | 4 | 4 |
| NNX-4TSP-D2-L8 | 2 | 3 | 8 | 50 | 4 | 4 |
| NNX-4TSP-D2-L10 | 2 | 3 | 10 | 50 | 4 | 4 |
| NNX-4TSP-D2-L12 | 2 | 3 | 12 | 50 | 4 | 4 |
| NNX-4TSP-D2-L14 | 2 | 3 | 14 | 50 | 4 | 4 |
| NNX-4TSP-D2-L16 | 2 | 3 | 16 | 50 | 4 | 4 |
| NNX-4TSP-D2-L18 | 2 | 3 | 18 | 50 | 4 | 4 |
| NNX-4TSP-D2-L20 | 2 | 3 | 20 | 50 | 4 | 4 |
| NNX-4TSP-D3-L10 | 3 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4TSP-D3-L12 | 3 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4TSP-D3-L14 | 3 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4TSP-D3-L16 | 3 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4TSP-D3-L18 | 3 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4TSP-D3-L20 | 3 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4TSP-D3-L16 | 3 | 4.5 | 16 | 60 | 6 | 4 |
| NNX-4TSP-D3-L18 | 3 | 4.5 | 18 | 60 | 6 | 4 |
| NNX-4TSP-D3-L20 | 3 | 4.5 | 20 | 60 | 6 | 4 |
| NNX-4TSP-D3-L25 | 3 | 4.5 | 25 | 60 | 6 | 4 |
| NNX-4TSP-D3-L16 | 3 | 4.5 | 16 | 75 | 6 | 4 |
| NNX-4TSP-D3-L18 | 3 | 4.5 | 18 | 75 | 6 | 4 |
| NNX-4TSP-D3-L20 | 3 | 4.5 | 20 | 75 | 6 | 4 |
| NNX-4TSP-D3-L25 | 3 | 4.5 | 25 | 75 | 6 | 4 |
| NNX-4TSP-D3-L30 | 3 | 4.5 | 30 | 75 | 6 | 4 |
| NNX-4TSP-D3-L35 | 3 | 4.5 | 35 | 75 | 6 | 4 |
| NNX-4TSP-D4-L16 | 4 | 6 | 16 | 60 | 6 | 4 |
| NNX-4TSP-D4-L18 | 4 | 6 | 18 | 60 | 6 | 4 |
| NNX-4TSP-D4-L20 | 4 | 6 | 20 | 60 | 6 | 4 |
| NNX-4TSP-D4-L25 | 4 | 6 | 25 | 60 | 6 | 4 |
| NNX-4TSP-D4-L16 | 4 | 6 | 16 | 75 | 6 | 4 |
| NNX-4TSP-D4-L18 | 4 | 6 | 18 | 75 | 6 | 4 |
| NNX-4TSP-D4-L20 | 4 | 6 | 20 | 75 | 6 | 4 |
| NNX-4TSP-D4-L25 | 4 | 6 | 25 | 75 | 6 | 4 |
| NNX-4TSP-D4-L30 | 4 | 6 | 30 | 75 | 6 | 4 |
| NNX-4TSP-D4-L35 | 4 | 6 | 35 | 75 | 6 | 4 |
| Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
|
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
| D1~D3.5 | +0 -0.005 |
|||||||||
| D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
| D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 | |||||||

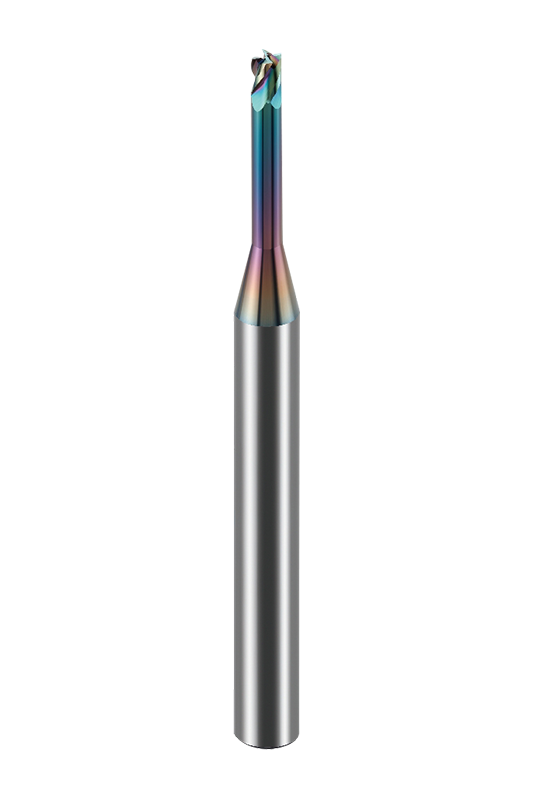

The NNX-4TSP 4 flute deep groove end mills for copper electrode milling is specially designed for copper electrode processing. It provides a variety of specifications, covering different diameters, blade lengths, effective blade lengths and overall lengths, and can be flexibly adapted to various precision processing needs. Users can freely choose the appropriate tool according to the specific application scenario to ensure efficient and stable processing performance and meet the high-precision requirements in electrode manufacturing.
The tool adopts a deep groove flat bottom design, combined with a 35° helix angle, which can effectively reduce cutting resistance, optimize chip removal capacity, and prevent the formation of built-up edge, thereby ensuring the surface finish of the machined surface. The four-edge structure enhances the rigidity of the tool and improves the processing stability, so that it can maintain a longer service life in high-precision electrode processing, while reducing the frequency of tool changes and improving production efficiency.
The tool uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology, which gives the tool extremely high hardness and ultra-low friction coefficient, significantly reduces tool wear and improves processing accuracy, while enhancing heat resistance, so that it can still maintain stable performance when processing copper electrodes at high speed, achieving excellent surface quality and efficient material removal rate.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4 Flute Deep Groove End Mills For Copper Electrode Milling Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4 Flute Deep Groove End Mills For Copper Electrode Milling Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4 Flute Deep Groove End Mills For Copper Electrode Milling Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4 Flute Deep Groove End Mills For Copper Electrode Milling.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4 Flute Deep Groove End Mills For Copper Electrode Milling Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are 4 Flute Deep Groove End Mills For Copper Electrode Milling Suppliers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
