• High precision and high efficiency can achieve a high-quality processing surface.

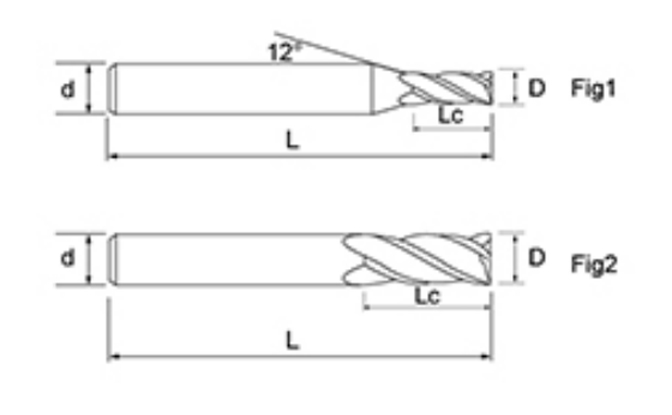

No. |
Diameter D |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-4T-D1 | 1 | 3 | 50 | 4 | 4 |
NNX-4T-D1.5 | 1.5 | 4 | 50 | 4 | 4 |
NNX-4T-D2 | 2 | 6 | 50 | 4 | 4 |
NNX-4T-D2.5 | 2.5 | 8 | 50 | 4 | 4 |
NNX-4T-D3 | 3 | 8 | 50 | 4 | 4 |
NNX-4T-D4 | 4 | 11 | 50 | 4 | 4 |
NNX-4T-D4 | 4 | 15 | 75 | 4 | 4 |
NNX-4T-D4 | 4 | 15 | 100 | 4 | 4 |
NNX-4T-D5 | 5 | 13 | 50 | 6 | 4 |
NNX-4T-D5 | 5 | 18 | 75 | 6 | 4 |
NNX-4T-D6 | 6 | 15 | 50 | 6 | 4 |
NNX-4T-D6 | 6 | 15 | 60 | 6 | 4 |
NNX-4T-D6 | 6 | 20 | 75 | 6 | 4 |
NNX-4T-D6 | 6 | 24 | 100 | 6 | 4 |
NNX-4T-D8 | 8 | 20 | 60 | 8 | 4 |
NNX-4T-D8 | 8 | 25 | 75 | 8 | 4 |
NNX-4T-D8 | 8 | 32 | 100 | 8 | 4 |
NNX-4T-D10 | 10 | 25 | 75 | 10 | 4 |
NNX-4T-D10 | 10 | 40 | 100 | 10 | 4 |
NNX-4T-D12 | 12 | 30 | 75 | 12 | 4 |
NNX-4T-D12 | 12 | 45 | 100 | 12 | 4 |
NNX-4T-D16 | 16 | 45 | 100 | 16 | 4 |
NNX-4T-D16 | 16 | 50 | 150 | 16 | 4 |
NNX-4T-D20 | 20 | 45 | 100 | 20 | 4 |
NNX-4T-D20 | 20 | 55 | 150 | 20 | 4 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

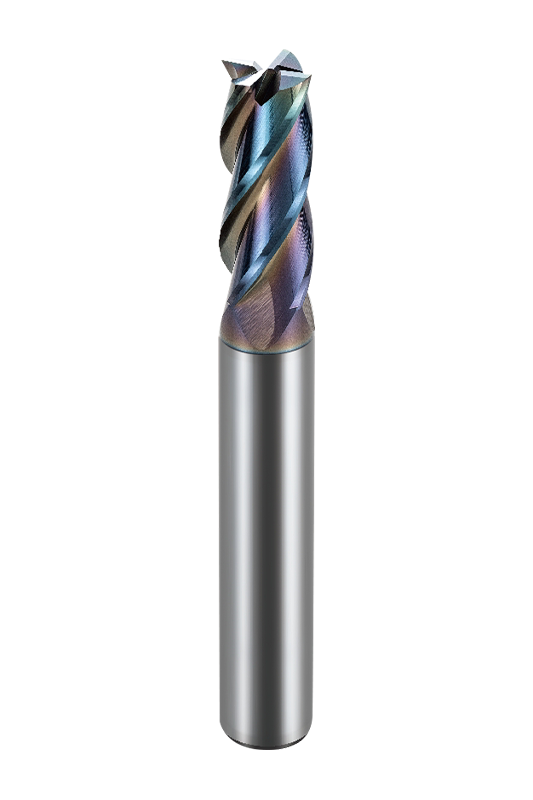

NNX-4T 4-flute flat head milling cutter is available in a variety of sizes to meet different processing needs. With diameters ranging from 1mm to 20mm, different flute lengths, total lengths and shank diameters, users can freely choose the model that best suits their specific application to ensure efficient and precise processing.
The tool adopts a four-flute flat head geometry design, which has stable cutting performance and excellent chip evacuation performance. The 45° helix angle reduces cutting resistance, improves processing efficiency and minimizes burr formation, resulting in a smoother workpiece surface. The tool shape is designed for copper electrode processing and has been carefully optimized to ensure high-precision processing while extending tool life.
The NNX-4T end mill is made of (0.2μm) ultra-fine particle substrate with the latest DLC coating technology. It has excellent wear resistance and anti-adhesion performance, which can effectively reduce material accumulation on the tool and greatly improve tool durability. It is also ground with high precision to ensure dimensional stability and excellent processing accuracy.
