• High precision and high efficiency can achieve a high-quality processing surface of copper electrodes.

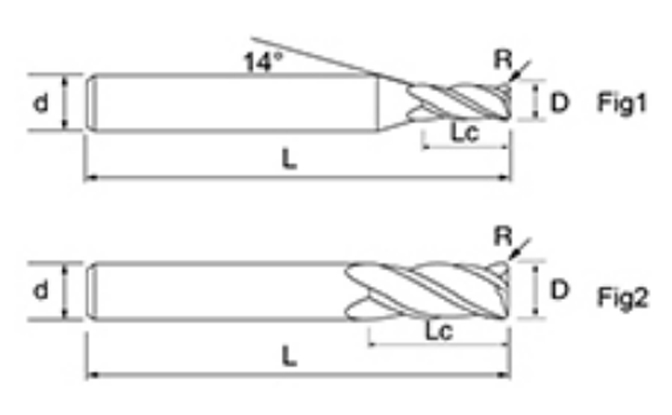

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-4R-D1-R0.05 | 1 | 0.05 | 3 | 50 | 4 | 4 |
NNX-4R-D1-R0.1 | 1 | 0.1 | 3 | 50 | 4 | 4 |
NNX-4R-D1-R0.2 | 1 | 0.2 | 3 | 50 | 4 | 4 |
NNX-4R-D1.5-R0.1 | 1.5 | 0.1 | 4 | 50 | 4 | 4 |
NNX-4R-D1.5-R0.2 | 1.5 | 0.2 | 4 | 50 | 4 | 4 |
NNX-4R-D2-R0.1 | 2 | 0.1 | 6 | 50 | 4 | 4 |
NNX-4R-D2-R0.2 | 2 | 0.2 | 6 | 50 | 4 | 4 |
NNX-4R-D2-R0.5 | 2 | 0.5 | 6 | 50 | 4 | 4 |
NNX-4R-D3-R0.1 | 3 | 0.1 | 8 | 50 | 4 | 4 |
NNX-4R-D3-R.02 | 3 | 0.2 | 8 | 50 | 4 | 4 |
NNX-4R-D3-R0.5 | 3 | 0.5 | 8 | 50 | 4 | 4 |
NNX-4R-D4-R0.2 | 4 | 0.2 | 10 | 50 | 4 | 4 |
NNX-4R-D4-R0.5 | 4 | 0.5 | 10 | 50 | 4 | 4 |
NNX-4R-D4-R1 | 4 | 1 | 10 | 50 | 4 | 4 |
NNX-4R-D6-R0.2 | 6 | 0.2 | 15 | 50 | 6 | 4 |
NNX-4R-D6-R0.2 | 6 | 0.2 | 18 | 75 | 6 | 4 |
NNX-4R-D6-R0.2 | 6 | 0.2 | 20 | 100 | 6 | 4 |
NNX-4R-D6-R0.5 | 6 | 0.5 | 15 | 50 | 6 | 4 |
NNX-4R-D6-R0.5 | 6 | 0.5 | 18 | 75 | 6 | 4 |
NNX-4R-D6-R0.5 | 6 | 0.5 | 20 | 100 | 6 | 4 |
NNX-4R-D6-R1 | 6 | 1 | 15 | 50 | 6 | 4 |
NNX-4R-D6-R1 | 6 | 1 | 18 | 75 | 6 | 4 |
NNX-4R-D6-R1 | 6 | 1 | 20 | 100 | 6 | 4 |
NNX-4R-D8-R0.5 | 8 | 0.5 | 20 | 60 | 8 | 4 |
NNX-4R-D8-R0.5 | 8 | 0.5 | 25 | 75 | 8 | 4 |
NNX-4R-D8-R0.5 | 8 | 0.5 | 25 | 100 | 8 | 4 |
NNX-4R-D8-R1 | 8 | 1 | 20 | 60 | 8 | 4 |
NNX-4R-D8-R1 | 8 | 1 | 25 | 75 | 8 | 4 |
NNX-4R-D8-R1 | 8 | 1 | 25 | 100 | 8 | 4 |
NNX-4R-D10-R0.5 | 10 | 0.5 | 25 | 75 | 10 | 4 |
NNX-4R-D10-R0.5 | 10 | 0.5 | 30 | 100 | 10 | 4 |
NNX-4R-D10-R1 | 10 | 1 | 25 | 75 | 10 | 4 |
NNX-4R-D10-R1 | 10 | 1 | 30 | 100 | 10 | 4 |
NNX-4R-D12-R0.5 | 12 | 0.5 | 30 | 75 | 12 | 4 |
NNX-4R-D12-R0.5 | 12 | 0.5 | 36 | 100 | 12 | 4 |
NNX-4R-D12-R1 | 12 | 1 | 30 | 75 | 12 | 4 |
NNX-4R-D12-R1 | 12 | 1 | 36 | 100 | 12 | 4 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

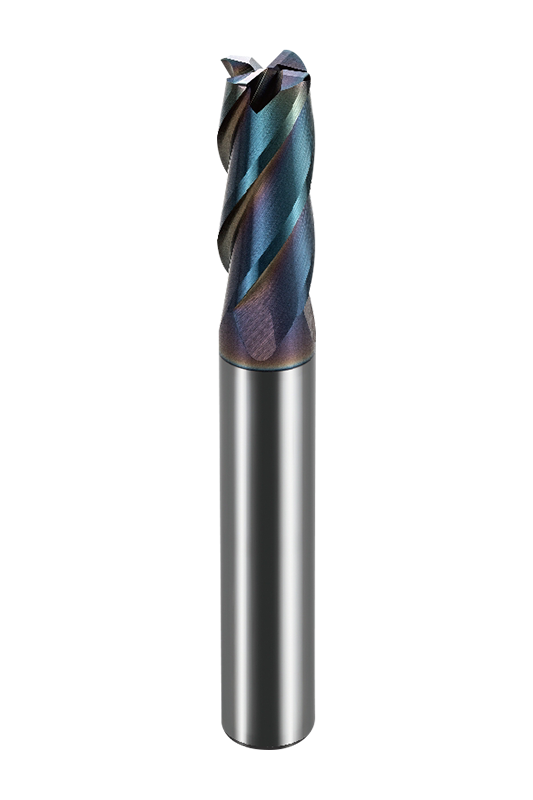

NNX-4R 4 flute round nose milling cutter is available in a variety of sizes, from small diameter to large specifications, covering different edge diameters, fillet radii and edge lengths. Whether it is fine engraving or efficient cutting, you can find the right tool configuration, providing a highly flexible solution for copper electrode processing.
The tool adopts a four-edge design and a round nose structure to ensure cutting stability while improving the wear resistance and finish of the tool. The 30° helix angle optimizes the chip removal capacity, effectively reduces the built-up edge phenomenon in copper material processing, and makes the processed surface smoother and more uniform. Reasonable edge geometry takes into account sharpness and strength, ensuring efficient processing while extending service life.
The special sharp tool shape is a highlight of NNX-4R. It adopts the latest DLC coating process, with extremely high surface smoothness and greatly reducing cutting resistance. This not only reduces heat and tool wear, but also effectively improves the accuracy and stability of copper electrode processing. High-quality substrate combined with advanced manufacturing technology ensures the excellent performance of the tool in high-speed processing.
