• High precision and high efficiency can achieve a high-quality processing surface.

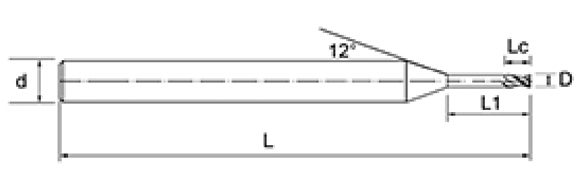

No. |
Diameter D |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2TSP-D0.1-L0.3 | 0.1 | 0.1 | 0.3 | 50 | 4 | 2 |
NNX-2TSP-D0.1-L0.5 | 0.1 | 0.1 | 0.5 | 50 | 4 | 2 |
NNX-2TSP-D0.1-L0.8 | 0.1 | 0.1 | 0.8 | 50 | 4 | 2 |
NNX-2TSP-D0.1-L1 | 0.1 | 0.1 | 1 | 50 | 4 | 2 |
NNX-2TSP-D0.15-L0.5 | 0.15 | 0.15 | 0.5 | 50 | 4 | 2 |
NNX-2TSP-D0.15-L1 | 0.15 | 0.15 | 1 | 50 | 4 | 2 |
NNX-2TSP-D0.2-L1 | 0.2 | 0.2 | 1 | 50 | 4 | 2 |
NNX-2TSP-D0.2-L1.5 | 0.2 | 0.2 | 1.5 | 50 | 4 | 2 |
NNX-2TSP-D0.2-L2 | 0.2 | 0.2 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.2-L3 | 0.2 | 0.2 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.2-L4 | 0.2 | 0.2 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L1 | 0.3 | 0.3 | 1 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L1.5 | 0.3 | 0.3 | 1.5 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L2 | 0.3 | 0.3 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L3 | 0.3 | 0.3 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L4 | 0.3 | 0.3 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.3-L5 | 0.3 | 0.3 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L1.5 | 0.4 | 0.4 | 1.5 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L2 | 0.4 | 0.4 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L3 | 0.4 | 0.4 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L4 | 0.4 | 0.4 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L5 | 0.4 | 0.4 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.4-L6 | 0.4 | 0.4 | 6 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L2 | 0.5 | 0.5 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L3 | 0.5 | 0.5 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L4 | 0.5 | 0.5 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L5 | 0.5 | 0.5 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L6 | 0.5 | 0.5 | 6 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L8 | 0.5 | 0.5 | 8 | 50 | 4 | 2 |
NNX-2TSP-D0.5-L10 | 0.5 | 0.5 | 10 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L2 | 0.6 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L3 | 0.6 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L4 | 0.6 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L5 | 0.6 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L6 | 0.6 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L8 | 0.6 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2TSP-D0.6-L10 | 0.6 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L2 | 0.7 | 0.7 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L3 | 0.7 | 0.7 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L4 | 0.7 | 0.7 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L5 | 0.7 | 0.7 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L6 | 0.7 | 0.7 | 6 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L8 | 0.7 | 0.7 | 8 | 50 | 4 | 2 |
NNX-2TSP-D0.7-L10 | 0.7 | 0.7 | 10 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L2 | 0.8 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L3 | 0.8 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L4 | 0.8 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L5 | 0.8 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L6 | 0.8 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L8 | 0.8 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2TSP-D0.8-L10 | 0.8 | 0.8 | 10 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |
The NNX-2TSP series products offer a variety of tool diameter and cutting length combinations, covering a range of micro tool diameters from 0.1mm to 0.8mm, and are equipped with different effective lengths to meet various complex and fine processing needs. Users can flexibly select the most suitable specifications according to specific application scenarios to achieve efficient and precise processing.

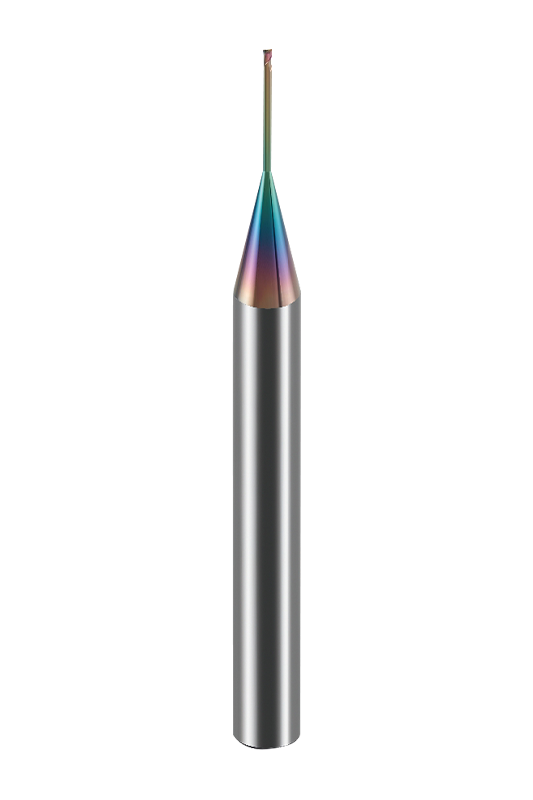

The milling cutter adopts a special deep groove flat bottom design, which helps to reduce vibration during processing, improve the finish of the processed surface, and enhance the stability of the tool. This structure is particularly suitable for fine processing applications such as copper electrode processing, ensuring high-precision cutting and reducing errors.
The tool uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology to greatly improve the hardness and wear resistance of the tool surface, effectively extend the service life, and significantly reduce the formation of built-up edge during processing. In addition, the 30° helix angle optimization design can provide smoother chip discharge, reduce cutting resistance, and improve processing efficiency, making it excellent in micro-diameter milling with high-precision requirements.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Copper Electrode Machining 2 Flute Micro Diameter Deep Groove End Mills Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Copper Electrode Machining 2 Flute Micro Diameter Deep Groove End Mills Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Copper Electrode Machining 2 Flute Micro Diameter Deep Groove End Mills Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom Copper Electrode Machining 2 Flute Micro Diameter Deep Groove End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Copper Electrode Machining 2 Flute Micro Diameter Deep Groove End Mills Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
