• High precision and high efficiency can achieve high-quality processing surface of copper electrodes.

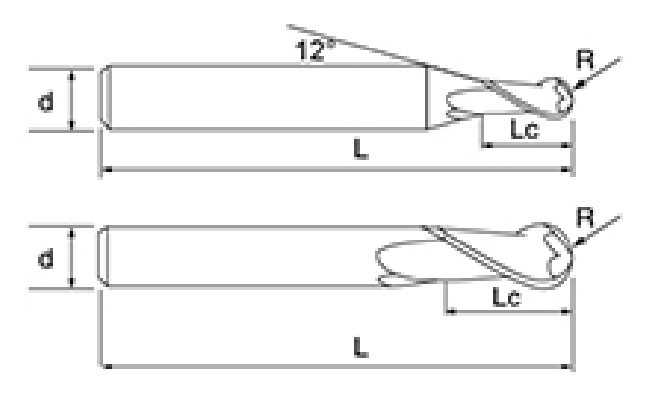

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2B-D1-L2 | 1 | R0.5 | 2 | 50 | 4 | 2 |
NNX-2B-D1.5-L3 | 1.5 | R0.75 | 3 | 50 | 4 | 2 |
NNX-2B-D2-L4 | 2 | R1 | 4 | 50 | 4 | 2 |
NNX-2B-D3-L6 | 3 | R1.5 | 6 | 50 | 4 | 2 |
NNX-2B-D4-L8 | 4 | R2 | 8 | 50 | 4 | 2 |
NNX-2B-D4-L8 | 4 | R2 | 8 | 75 | 4 | 2 |
NNX-2B-D5-L10 | 5 | R2.5 | 10 | 50 | 6 | 2 |
NNX-2B-D5-L10 | 5 | R2.5 | 10 | 60 | 6 | 2 |
NNX-2B-D5-L10 | 5 | R2.5 | 10 | 75 | 6 | 2 |
NNX-2B-D5-L10 | 5 | R2.5 | 10 | 100 | 6 | 2 |
NNX-2B-D6-L12 | 6 | R3 | 12 | 50 | 6 | 2 |
NNX-2B-D6-L12 | 6 | R3 | 12 | 60 | 6 | 2 |
NNX-2B-D6-L12 | 6 | R3 | 12 | 75 | 6 | 2 |
NNX-2B-D6-L12 | 6 | R3 | 12 | 100 | 6 | 2 |
NNX-2B-D8-L16 | 8 | R4 | 16 | 60 | 8 | 2 |
NNX-2B-D8-L16 | 8 | R4 | 16 | 75 | 8 | 2 |
NNX-2B-D8-L16 | 8 | R4 | 16 | 100 | 8 | 2 |
NNX-2B-D10-L20 | 10 | R5 | 20 | 75 | 10 | 2 |
NNX-2B-D10-L20 | 10 | R5 | 20 | 100 | 10 | 2 |
NNX-2B-D12-L24 | 12 | R6 | 24 | 75 | 12 | 2 |
NNX-2B-D12-L24 | 12 | R6 | 24 | 100 | 12 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

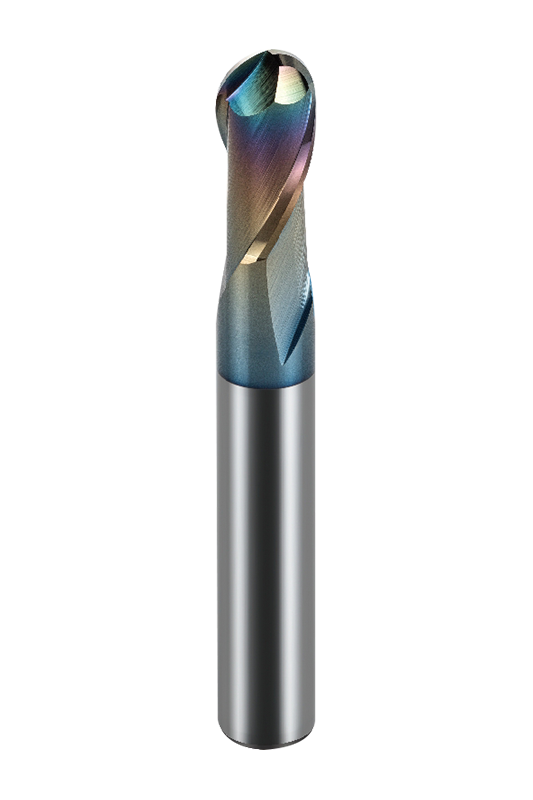

NNX-2B 2 flute ball end mill is specially designed for copper electrode processing. It provides a variety of specifications and tool diameters ranging from 1mm to 12mm. It is matched with different blade lengths, full lengths and R angles to meet the diverse needs from fine processing to complex three-dimensional curved surface engraving. Users can flexibly choose according to specific processing requirements to ensure efficient and accurate processing results.
This series of milling cutters adopts an optimized ball end design, which can achieve smooth curved surface processing, especially suitable for high-precision engraving and detail processing of copper electrodes. The 30° helix angle design can effectively reduce cutting resistance, optimize chip removal, prevent the tool from sticking to copper, improve processing stability and surface quality, and thus ensure extremely high processing accuracy.
NNX-2B copper electrode milling 2 flute ball nose end mills uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology, which makes the tool surface have ultra-high hardness and extremely low friction coefficient, greatly reducing the problem of built-up edge during processing and improving cutting smoothness.
