• Advanced grinding technology achieves ultra-high blade diameter and shank diameter accuracy, suitable for precision molds and parts processing.
• High wear-resistant coating is used. The arc transition structure ensures high breakage resistance and enables long-term cutting of hardened steel.

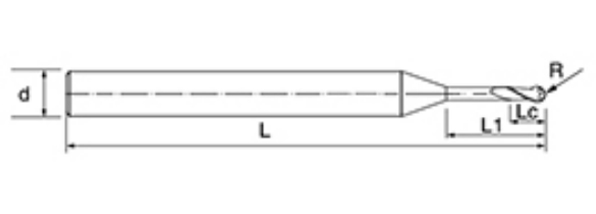

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-2BSP-D1-L3 | 1 | 0.5 | 1 | 3 | 50 | 4 | 2 |
NNC-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
NNC-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
NNC-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
NNC-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
NNC-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
NNC-2BSP-D1-L16 | 1 | 0.5 | 1 | 16 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L14 | 1.5 | 0.75 | 1.5 | 14 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L16 | 1.5 | 0.75 | 1.5 | 16 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L18 | 1.5 | 0.75 | 1.5 | 18 | 50 | 4 | 2 |
NNC-2BSP-D1.5-L20 | 1.5 | 0.75 | 1.5 | 20 | 50 | 4 | 2 |
NNC-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
NNC-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
NNC-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
NNC-2BSP-D2-L14 | 2 | 1 | 2 | 14 | 50 | 4 | 2 |
NNC-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
NNC-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
NNC-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
NNC-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
NNC-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
NNC-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
NNC-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 60 | 6 | 2 |
NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 75 | 6 | 2 |
NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 60 | 6 | 2 |
NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 60 | 6 | 2 |
NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 75 | 6 | 2 |
NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 75 | 6 | 2 |
NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 60 | 6 | 2 |
NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 75 | 6 | 2 |
NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 60 | 6 | 2 |
NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |

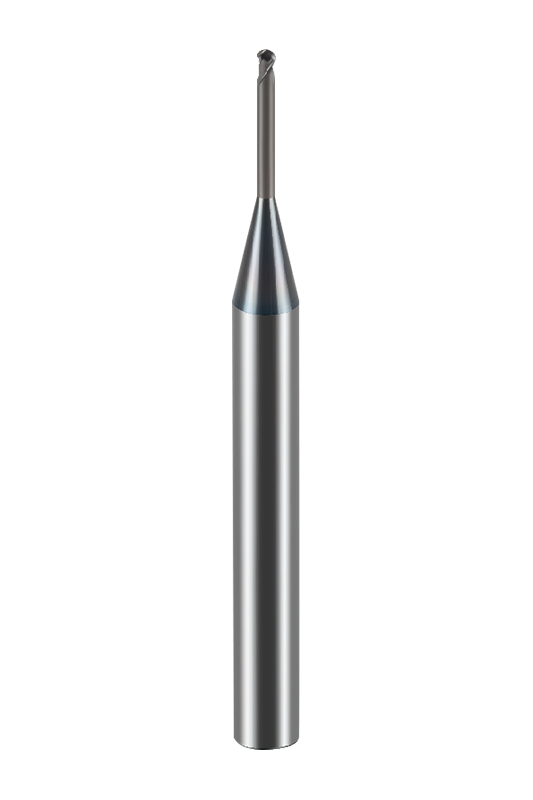

NNC-2BSP 2-flute deep groove ball nose end mills are available in a variety of sizes, including diameters of 0.5mm, 1.0mm, 1.5mm and 2.0mm, providing flexible solutions for a variety of machining needs.
The special deep groove ball nose design helps to evacuate chips more smoothly and extend tool life in deep cavity and complex contour applications. The two-flute configuration not only promotes chip flow, but also maintains a stable cutting edge contact area to meet the needs of high-precision contour machining and curved surface transition.
The product is manufactured with ultra-fine particles (0.4μm) substrate and the latest chromium-aluminum composite coating process to ensure excellent wear and heat resistance under high-speed conditions. The ultra-fine grain structure makes the cutting edge sharper and reduces impact and wear during operation, while the unique grinding and polishing technology ensures edge accuracy and smooth surface.
Suitable for light cutting of common metals such as carbon steel, die steel, stainless steel and cast iron.
