• The universal milling cutter is suitable for heat treatment of all series of steel materials. It has a U-groove structure design and is suitable for both roughing and finishing.
• It is also suitable for the processing of non-steel and aluminum materials. It has a complete range of specifications and models and a wide range of uses.

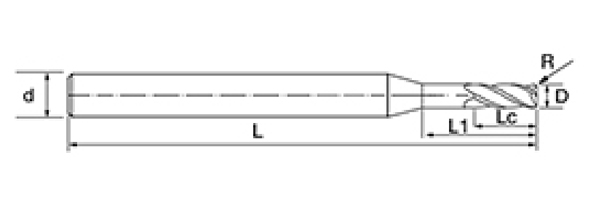

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNC-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
NNC-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
NNC-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
NNC-4RSP-D1-L10 | 1 | 0.1 | 1 | 10 | 50 | 4 | 4 |
NNC-4RSP-D1-L12 | 1 | 0.1 | 1 | 12 | 50 | 4 | 4 |
NNC-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
NNC-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
NNC-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
NNC-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
NNC-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
NNC-4RSP-D1-L16 | 1 | 0.2 | 1 | 16 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L18 | 1.5 | 0.2 | 1.5 | 18 | 50 | 4 | 4 |
NNC-4RSP-D1.5-L20 | 1.5 | 0.2 | 1.5 | 20 | 50 | 4 | 4 |
NNC-4RSP-D2-L6 | 2 | 0.1 | 2 | 6 | 50 | 4 | 4 |
NNC-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
NNC-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
NNC-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
NNC-4RSP-D2-L6 | 2 | 0.2 | 2 | 6 | 50 | 4 | 4 |
NNC-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
NNC-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
NNC-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
NNC-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
NNC-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
NNC-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
NNC-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
NNC-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
NNC-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
NNC-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 75 | 6 | 4 |
NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 60 | 6 | 4 |
NNC-4RSP-D3-L26 | 3 | 0.2 | 3 | 26 | 75 | 6 | 4 |
NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 60 | 6 | 4 |
NNC-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
NNC-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 60 | 4 | 4 |
NNC-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 60 | 4 | 4 |
NNC-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 60 | 4 | 4 |
NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 60 | 6 | 4 |
NNC-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 75 | 6 | 4 |
NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 60 | 6 | 4 |
NNC-4RSP-D3-L26 | 3 | 0.5 | 3 | 26 | 75 | 6 | 4 |
NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 60 | 6 | 4 |
NNC-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
NNC-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 60 | 6 | 4 |
NNC-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 60 | 6 | 4 |
NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
NNC-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 75 | 6 | 4 |
NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 60 | 6 | 4 |
NNC-4RSP-D4-L26 | 4 | 0.2 | 4 | 26 | 75 | 6 | 4 |
NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 60 | 6 | 4 |
NNC-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
NNC-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 60 | 6 | 4 |
NNC-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 60 | 6 | 4 |
NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
NNC-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 75 | 6 | 4 |
NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 60 | 6 | 4 |
NNC-4RSP-D4-L26 | 4 | 0.5 | 4 | 26 | 75 | 6 | 4 |
NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 60 | 6 | 4 |
NNC-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
Tool Series | Diameter | Radius | Corner Radius | Flute Length | Effective Length | Overall Length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNC Universal Carbide Milling Cutters |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.2 |
+0 +0.3 |
+0 +0.5 |
h5 |
D1.0~D4.0 | +0 -0.008 |
+0 +0.3 |
+0 +0.5 |
|||||||
D1.0~D3.5 | +0 -0.008 |
R0.5~R1.75 | +/-0.005 | CR0.1~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.5 |
+0 +0.5 |
h6 | |
D4.0~D11.0 | +0 -0.012 |
R2.0~R5.0 | +/-0.008 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
||||
D12.0~D20.0 | +0 -0.015 |
R6.0~R10.0 | +/-0.01 |

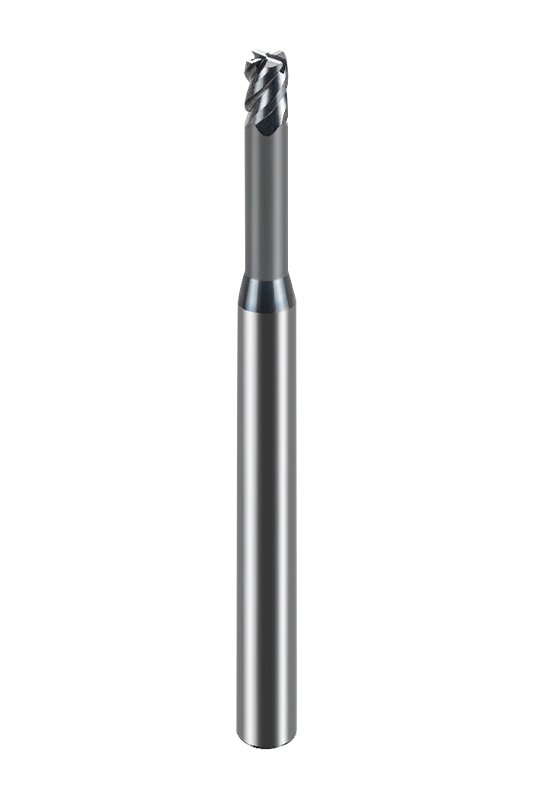

NNC-4RSP 4-flute deep groove round nose end mills are available in a wide range of sizes, from 0.5mm to 12mm diameter, with common groove lengths of 2mm, 4mm, 6mm and 8mm, and total lengths of 50mm, 60mm and above. This variety accommodates different depths and contours, allowing for flexible operation even in tight spaces.
These end mills feature a deep groove round nose design, combined with a 35° helix angle, to ensure effective chip evacuation and stability at considerable cutting depths. The round nose geometry with a circular transition reduces cutting resistance, improves cutting smoothness, and helps achieve a better surface finish while minimizing vibrations, thereby improving machining accuracy.
The tool is produced by high-precision CNC grinding, using a (0.4μm) ultra-fine grain carbide substrate for excellent sharpness and wear resistance. Its latest chromium-aluminum composite coating provides excellent oxidation and wear resistance at high temperatures, ensuring stable performance even at high speeds and feed rates.
These end mills are suitable for materials with hardness up to HRC45, including carbon steel, alloy steel, pre-hardened steel and cast iron, as well as non-ferrous metals such as copper alloys.
