• High precision and high efficiency can achieve high-quality processing surface of copper electrodes.

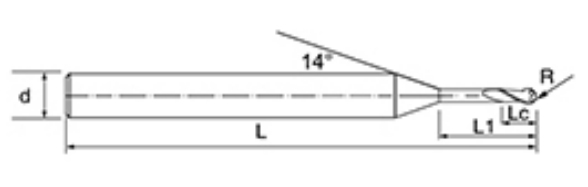

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2BSP-D1-L3 | 1 | 0.5 | 1 | 3 | 50 | 4 | 2 |
NNX-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
NNX-2BSP-D1-L5 | 1 | 0.5 | 1 | 5 | 50 | 4 | 2 |
NNX-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
NNX-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
NNX-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
NNX-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
NNX-2BSP-D1-L14 | 1 | 0.5 | 1 | 14 | 50 | 4 | 2 |
NNX-2BSP-D1-L16 | 1 | 0.5 | 1 | 16 | 50 | 4 | 2 |
NNX-2BSP-D1-L18 | 1 | 0.5 | 1 | 18 | 50 | 4 | 2 |
NNX-2BSP-D1-L20 | 1 | 0.5 | 1 | 20 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L4 | 1.5 | 0.75 | 1.5 | 4 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L5 | 1.5 | 0.75 | 1.5 | 5 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L16 | 1.5 | 0.75 | 1.5 | 16 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L18 | 1.5 | 0.75 | 1.5 | 18 | 50 | 4 | 2 |
NNX-2BSP-D1.5-L20 | 1.5 | 0.75 | 1.5 | 20 | 50 | 4 | 2 |
NNX-2BSP-D2-L6 | 2 | 1 | 2 | 6 | 50 | 4 | 2 |
NNX-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
NNX-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
NNX-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
NNX-2BSP-D2-L14 | 2 | 1 | 2 | 14 | 50 | 4 | 2 |
NNX-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
NNX-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
NNX-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
NNX-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 60 | 6 | 2 |
NNX-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 60 | 6 | 2 |
NNX-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 60 | 6 | 2 |
NNX-2BSP-D2-L25 | 2 | 1 | 2 | 25 | 60 | 6 | 2 |
NNX-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
NNX-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
NNX-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 50 | 4 | 2 |
NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 60 | 6 | 2 |
NNX-2BSP-D3-L18 | 3 | 1.5 | 3 | 18 | 60 | 6 | 2 |
NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
NNX-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 60 | 6 | 2 |
NNX-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 75 | 6 | 2 |
NNX-2BSP-D3-L18 | 3 | 1.5 | 3 | 18 | 75 | 6 | 2 |
NNX-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
NNX-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 75 | 6 | 2 |
NNX-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
NNX-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 60 | 6 | 2 |
NNX-2BSP-D4-L18 | 4 | 2 | 4 | 18 | 60 | 6 | 2 |
NNX-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
NNX-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 60 | 6 | 2 |
NNX-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 75 | 6 | 2 |
NNX-2BSP-D4-L18 | 4 | 2 | 4 | 18 | 75 | 6 | 2 |
NNX-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 75 | 6 | 2 |
NNX-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 75 | 6 | 2 |
NNX-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
NNX-2BSP-D4-L35 | 4 | 2 | 4 | 35 | 75 | 6 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

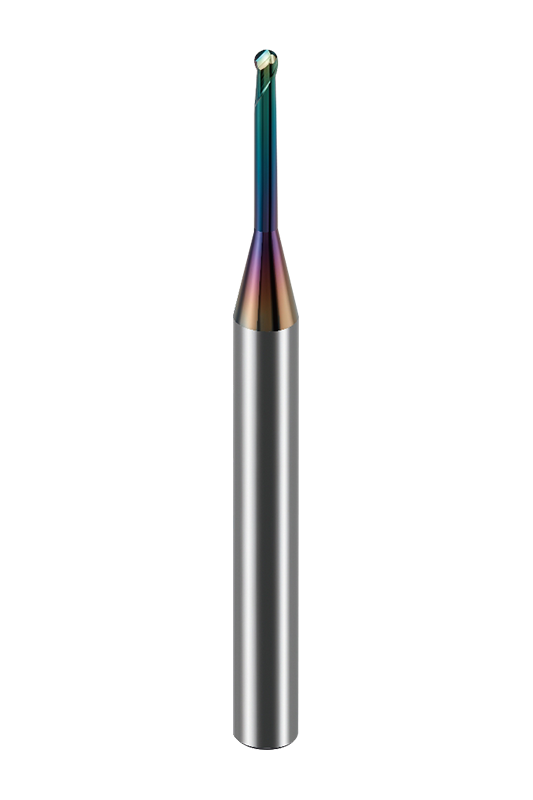

The NNX-2BSP 2 flute deep groove ball end copper electrode milling cutters is designed for copper electrode processing and provides a variety of size options to meet different processing needs. Different sub-models cover a full range of specifications from micro diameters to larger sizes, allowing users to freely choose according to specific applications to ensure a balance between fine processing and efficient cutting.
The milling cutter adopts a deep groove ball nose design, which enables it to have excellent chip removal performance in copper electrode processing, while reducing cutting resistance and improving the surface finish of the processing. The 30° helix angle optimizes cutting stability, effectively reduces vibration, and increases tool life, making it suitable for high-precision complex surface processing.
The NNX-2BSP uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology to greatly improve the surface hardness of the tool, reduce tool wear and improve durability. The high-precision manufacturing process ensures strict control of tool size tolerances and provides excellent processing accuracy, making it perform well in high-hardness and high-demand copper electrode processing applications.
Enterprise establishment
Employees
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Deep Groove Ball End Copper Electrode Milling Cutters Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Deep Groove Ball End Copper Electrode Milling Cutters Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Deep Groove Ball End Copper Electrode Milling Cutters Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Deep Groove Ball End Copper Electrode Milling Cutters.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Deep Groove Ball End Copper Electrode Milling Cutters Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
