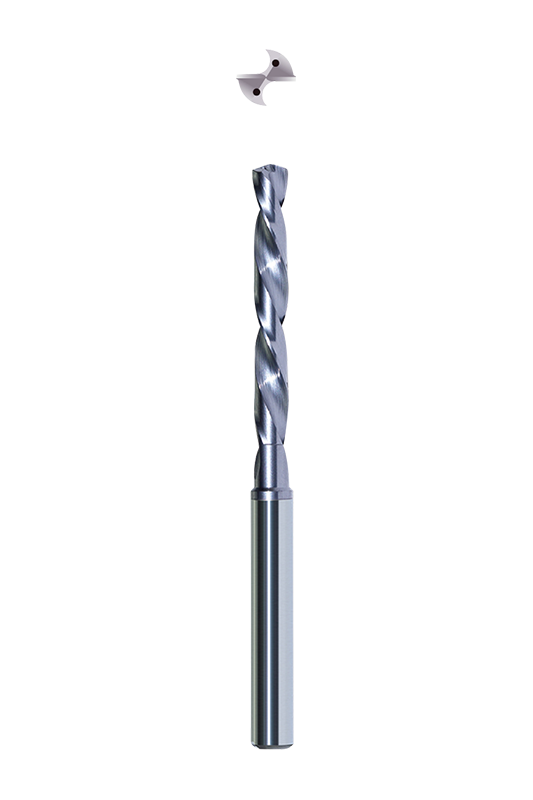

Twist Drills for Mild Steel and Stainless Steel

Twist Drills for Mild Steel and Stainless Steel

 •  First choice for drilling soft steel and stainless steel.
 •  Sharp cutting edge, avoids the formation of built-up edge, suitable for high-performance drilling.

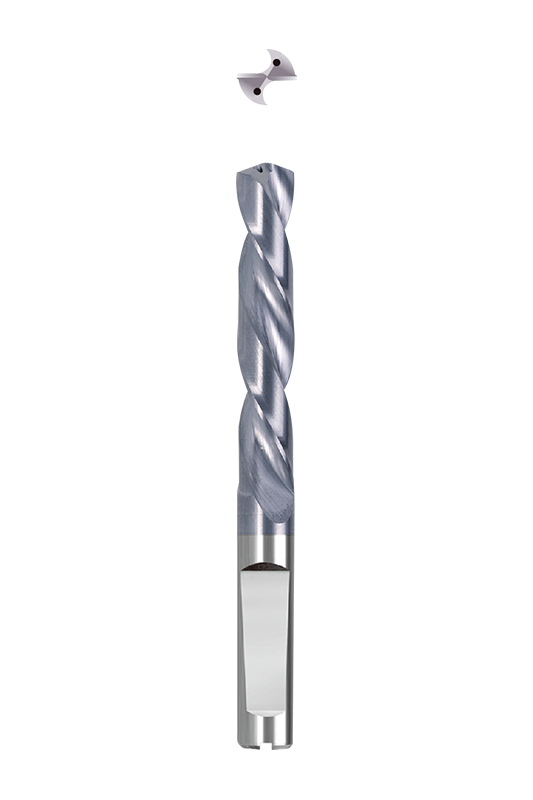

 •  Straight shank/bevel shank type, internal/external cooling type optional.

  • Twist Drills for Mild Steel and Stainless Steel
  • Twist Drills for Mild Steel and Stainless Steel
Contact Us

NNZB Series Fried Dough Twists Drill (Internal Cooling Type)(3D/5D)

Processed Materials Mild Steel
HB≤180		 Carbon Steel, Alloy Steel
~30HRC		 Stainless Steel
Austenitic Series Martensitic Series Ferrite Series
Cutting Speed 80~150m/min 80~150m/min 40-80 m/min 50-100 m/min 60~120 m/min
Diameter
(mm)		 Rotational Speed
(min-1)		 Feed Rate
(mm/r)		 Rotational Speed
(min-1)		 Feed Rate
(mm/r)		 Rotational Speed
(min-1)		 Feed Rate
(mm/r)		 Rotational Speed
(min-1)		 Feed Rate
(mm/r)		 Rotational Speed
(min-1)		 Feed Rate
(mm/r)
3 12700 0.09~0.12 12700 0.09~0.12 6300 0.03~0.07 7400 0.03~0.07 9000 0.03~0.07
4 9600 0.10~0.15 9600 0.10~0.15 4700 0.04~0.08 5600 0.04~0.08 6700 0.04~0.08
5 7600 0.12~0.18 7600 0.12~0.18 3800 0.05~0.10 4500 0.05~0.10 5400 0.05~0.10
6 6400 0.14~0.20 6400 0.14~0.20 3200 0.06~0.12 3700 0.06~0.12 4500 0.06~0.12
8 4800 0.16~0.24 4800 0.16~0.24 2400 0.08~0.16 2800 0.08~0.16 3400 0.08~0.16
10 3800 0.18~0.27 3800 0.18~0.27 1900 0.10~0.18 2200 0.10~0.18 2700 0.10~0.18
12 3200 0.20~0.30 3200 0.20~0.30 1600 0.12~0.20 1900 0.12~0.20 2300 0.12~0.20
14 2700 022~0.35 2700 0.22~0.35 1350 0.13~0.22 1600 0.13~0.22 1900 0.13~0.22
16 2400 0.25~0.36 2400 0.25~0.36 1200 0.14~0.25 1400 0.14~0.25 1700 0.14~0.25
18 2100 0.28~0.38 2100 0.28~0.38 1050 0.15~0.28 1200 0.15~0.28 1500 0.15~0.28
20 1900 0.30~0.40 1900 0.30~0.40 950 0.16~0.30 1100 0.16~0.30 1350 0.16~0.30

1. When using this tool for the first time, test cutting at 90% of the cutting speed or 85% of the feed rate according to the above data. When the cutting condition is stable, increase the cutting speed and feed rate one by one.
2. This standard cutting condition table is applicable to water-soluble cutting fluids.
3. When installing the cutting tool, please use a defect free and clean chuck, and control the radial runout of the drill bit within 0.02mm.
4. The cutting conditions in this table are applicable to situations where the hole depth is below 5D.
