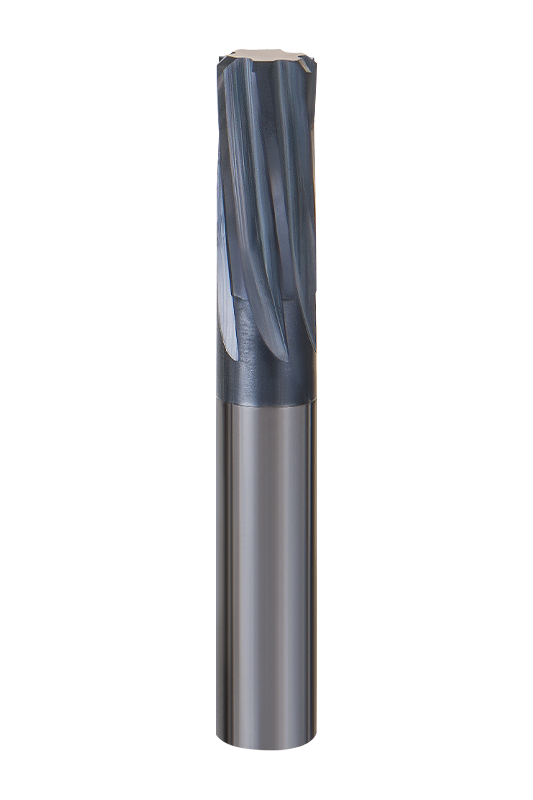

Straight Shank Left Hand Spiral Flute Reamer-Changzhou Maiteng Tools Co.,Ltd.

High precision: suitable for precision hole processing, tolerance is usually at H7 level.
• Smooth chip removal: spiral groove design effectively removes chips, reduces blockage and tool wear.
• High processing efficiency: suitable for high-speed cutting, improves production efficiency.
• Wide applicability: can be used for a variety of materials such as steel, cast iron, non-ferrous metals, etc.

Processed Materials	Cast Iron Nodular Cast Iron			Copper Alloy			Casting Aluminum Alloys
Cutting Speed	8~16m/min			10~25m/min			15~30 m/min
Diameter (mm)	Rotational Speed (min^-1)	Feed Rate (mm/r)	Margin (mm)	Rotational Speed (min^-1)	Feed Rate (mm/r)	Margin (mm)	Rotational Speed (min^-1)	Feed Rate (mm/r)	Margin (mm)
4	950	0.04~0.06	0.1~0.2	1600	0.04~0.06	0.1~0.2	2000	0.04~0.06	0.1~0.2
5	760	0.05~0.09	0.1~0.2	1300	0.05~0.09	0.1~0.2	1600	0.05~0.09	0.1~0.2
6	640	0.06~0.12	0.1~0.2	1050	0.06~0.12	0.1~0.2	1300	0.06~0.12	0.1~0.2
7	550	0.07~0.14	0.1~0.2	910	0.07~0.14	0.1~0.2	1150	0.07~0.14	0.1~0.2
8	480	0.08~0.16	0.1~0.2	800	0.08~0.16	0.1~0.2	1000	0.08~0.16	0.1~0.2
9	430	0.09~0.18	0.1~0.2	710	0.09~0.18	0.1~0.2	890	0.09~0.18	0.1~0.2
10	380	0.10-0.20	0.1~0.2	640	0.10~0.20	0.1~0.2	800	0.10-0.20	0.1~0.2
11	350	0.11~0.22	0.1~0.2	580	0.11~0.22	0.1~0.2	720	0.11~0.22	0.1~0.2
12	320	0.12-0.24	0.1~0.2	530	0.12~0.24	0.1~0.2	660	0.12~0.24	0.1~0.2
13	290	0.13~0.26	0.1~0.2	490	0.13~0.26	0.1~0.2	610	0.13~0.26	0.1~0.2
14	270	0.14~0.28	0.1~0.2	460	0.14~0.28	0.1~0.2	570	0.14~0.28	0.1~0.2
15	250	0.15~0.30	0.1~0.2	430	0.15~0.30	0.1~0.2	530	0.15~0.30	0.1~0.2
16	240	0.16~0.32	0.1~0.2	400	0.16~0.32	0.1~0.2	500	0.16~0.32	0.1~0.2
17	225	0.18~0.34	0.1~0.2	380	0.18~0.34	0.1~0.2	470	0.18~0.34	0.1~0.2
18	210	0.20~0.36	0.1~0.2	350	0.20~0.36	0.1~0.2	440	0.20~0.36	0.1~0.2
19	200	0.22~0.38	0.1~0.2	340	0.22~0.38	0.1~0.2	420	0.22~0.38	0.1~0.2
20	190	0.24~0.40	0.1~0.2	320	0.24~0.40	0.1~0.2	400	0.24~0.40	0.1~0.2

1. Please use a handle with high rigidity and precision.
2. Please use sufficient coolant.
3. Please adjust the parameters appropriately according to the cutting material and the rigidity of the machine.

The NNJD3H7 features a left-hand spiral flute design, ensuring excellent chip evacuation for smooth cutting. This reduces clogging and tool wear, enhancing stability and reliability. The design is particularly well-suited for deep hole machining and high-precision applications, improving hole concentricity and surface finish.

Manufactured with high-performance materials and precision grinding technology, this reamer offers exceptional wear resistance and longevity. The optimized cutting edge ensures sharpness during high-speed machining, boosting productivity while minimizing vibration to maintain superior hole accuracy.

The NNJD3H7 comes in a wide range of sizes, from 4.0mm to 20.0mm in diameter, allowing users to choose from various models to meet diverse machining needs. Whether for standard production or customized applications, this reamer provides the flexibility to fit your manufacturing requirements perfectly.

Designed for versatility, it is ideal for machining materials such as steel, cast iron, aluminum alloys, and copper alloys.
