British thread: Including BSP (British Standard Pipe) and BSPT (British Standard Pipe Taper).
55° thread angle: The thread angle of British thread is 55°, which is different from American and metric threads.
Single tooth design: The tool cuts one thread line at a time, which is suitable for precision machining and small batch production.
Recommended machining hardness: HRC≤45°
Pitch |
Specifications |

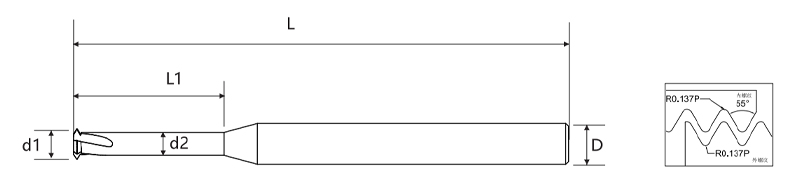

Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
P0.793 |
W5/32 |
3.1 |
1.9 |
8 |
4 |
50 |
4 |
P1.058 |
W3/16-24 |
3.5 |
2 |
10 |
4 |
50 |
4 |
P1.27 |
W1/4-20 |
4 |
2.2 |
12 |
4 |
50 |
4 |
P0.907-P1.411 |
W5/16-18 G1/16-28 G1/8-28 |
6 |
4.5 |
14 |
6 |
50 |
4 |
P1.336-P1.814 |
W3/8-16 W7/16-14 G1/4-19 G3/8-19 |
8 |
5.9 |
22 |
8 |
60 |
4 |
P1.336-P1.814 |
W7/16-14G1/2-14 G1/4-19 G3/4-14 G3/8-19 |
10 |
7.3 |
30 |
10 |
75 |
4 |
P1.336-P2.54 |
W5/8-11 W3/4-10 G1/2-14 G3/4-14 G1-11 |
12 |
8.2 |
38 |
12 |
75 |
4 |

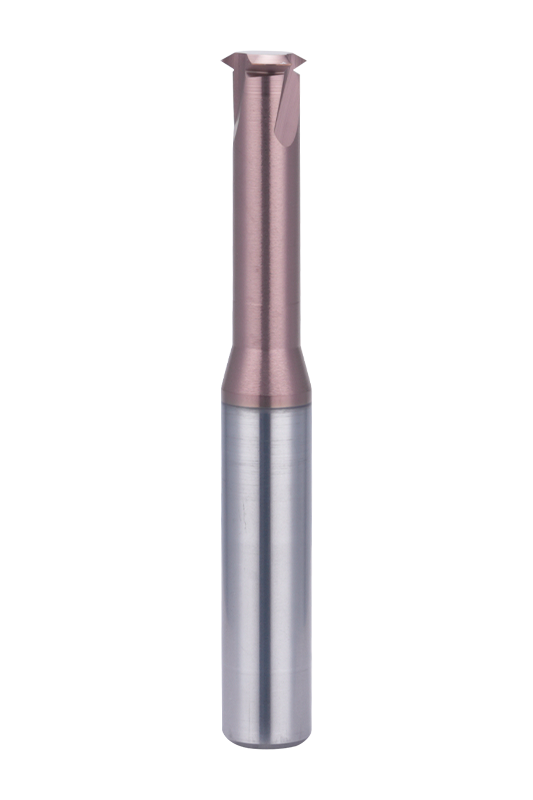

The 55° BSP/BSPT Single Tooth Thread Milling Cutter is specifically designed for machining British Standard Pipe threads (BSP/BSPT), meeting the standard 55° thread angle. Its single-tooth cutting design ensures high-precision machining by cutting one thread at a time, effectively reducing cutting resistance. This makes it particularly suitable for precision manufacturing and small-batch production.
This cutter is compatible with a wide range of materials, including carbon steel, alloy steel, stainless steel, aluminum alloys, copper alloys, plastics, and certain high-temperature alloys. It is recommended for workpieces with a hardness of up to HRC 45 to maintain tool longevity and machining stability. Its broad material adaptability ensures excellent performance across various industrial applications.
Multiple specifications are available, covering different cutter diameters (d1), relief diameters (d2), effective cutting lengths (L1), and overall lengths (L), allowing flexibility for various thread standards and machining requirements. The standard cylindrical shank design ensures compatibility with multiple machine tool clamping systems, providing secure holding and ease of operation.
