Metric thread: In accordance with ISO standards, the thread angle is 60°.
Full thread design: The cutting edge of the tool covers the entire thread profile, and the thread processing can be completed in one go.
Recommended processing hardness: HRC ≤ 40°
Pitch |
Coarse Teeth UNC |
Fine Teeth UNF |

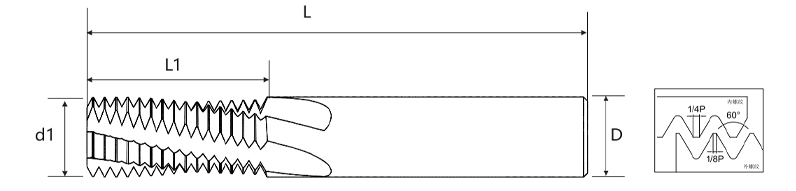

Blade Diameter d1 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
0.35 |
M1.6*0.35 |
1.2 |
3.4 |
4 |
50 |
3 |
1.25 |
|
0.4 |
M2*0.4 |
1.54 |
5 |
4 |
50 |
3 |
1.6 |
|
0.45 |
M2.5*0.45 |
1.96 |
5.3 |
4 |
50 |
3 |
2.05 |
|
0.5 |
M3*P0.5 |
2.3 |
6 |
4 |
50 |
3 |
2.5 |
|
0.5 |
M6*P0.5 |
4 |
10 |
4 |
50 |
3 |
5.5 |
|
0.5 |
M8-M12*P0.5 |
6 |
16 |
6 |
50 |
3 |
7.5 |
|
0.6 |
M3.5*P0.6 |
2.7 |
7 |
4 |
50 |
3 |
2.9 |
|
0.7 |
M4*P0.7 |
3 |
8 |
4 |
50 |
3 |
3.3 |
|
0.75 |
M4.5*P0.75 |
3.4 |
9 |
4 |
50 |
3 |
3.75 |
|
0.75 |
M6*P0.75 |
4.8 |
12 |
6 |
60 |
3 |
5.25 |
|
0.75 |
M8*P0.75 |
6 |
16 |
6 |
60 |
3 |
7.25 |
|
0.75 |
M10-M12*P0.75 |
8 |
20 |
8 |
60 |
3 |
9.25 |
|
0.8 |
M5*P0.8 |
4 |
10 |
4 |
50 |
B |
4.2 |
|
1 |
M6*P1 |
4.8 |
12 |
6 |
60 |
3 |
5 |
|
1 |
M8*P1 |
6 |
16 |
6 |
60 |
B |
7 |
|
1 |
M10*P1 |
8 |
20 |
8 |
60 |
3 |
9 |
|
1 |
M12-M14*P1 |
10 |
22 |
10 |
75 |
4 |
11 |
|
1 |
M16*P1 |
12 |
22 |
12 |
75 |
4 |
15 |
|
1 |
M20-M48*P1 |
16 |
30 |
16 |
90 |
4 |
19 |
|
1.25 |
M8*P1.25 |
6 |
16 |
6 |
60 |
B |
6.75 |
|
1.25 |
M8*P1.25 |
6.5 |
17.5 |
8 |
60 |
3 |
6.75 |
|
1.25 |
M10*P1.25 |
8 |
20 |
8 |
60 |
3 |
8.75 |
|
1.25 |
M12-M14*P1.25 |
10 |
25 |
10 |
75 |
4 |
10.75 |
|
1.5 |
M10*P1.5 |
8 |
20 |
8 |
60 |
3 |
8.5 |
|
1.5 |
M10*P1.5 |
8.2 |
21 |
10 |
75 |
4 |
8.5 |
|
1.5 |
M12-M20*P1.5 |
10 |
28 |
10 |
75 |
4 |
10.5 |
|
1.5 |
M14-M24*P1.5 |
12 |
28 |
12 |
75 |
4 |
12.5 |
|
1.5 |
M20-M48*P1.5 |
16 |
30 |
16 |
100 |
4 |
18.5 |
|
1.75 |
M12*P1.75 |
9.8 |
30 |
10 |
75 |
4 |
10.25 |
|
2 |
M14*2.0 |
10 |
30 |
10 |
75 |
4 |
12 |
|
2 |
M14*P2.0 |
11.6 |
30 |
12 |
75 |
4 |
12 |
|
2 |
M16*P2.0 |
12 |
30 |
12 |
75 |
4 |
14 |
|
2 |
M16*P2.0 |
13.6 |
33 |
14 |
100 |
4 |
14 |
|
2 |
M20-M80*P2.0 |
16 |
40 |
16 |
100 |
4 |
18 |
|
2.5 |
M18-M20*P2.5 |
14 |
36 |
14 |
100 |
4 |
15.5 |
|
2.5 |
M20-M80*P2.5 |
16 |
40 |
16 |
100 |
4 |
17.5 |
|
3 |
M24*P3.0 |
16 |
42 |
16 |
100 |
4 |
21 |
|
3.5 |
M30*P3.5 |
16 |
42 |
16 |
100 |
4 |
26.5 |

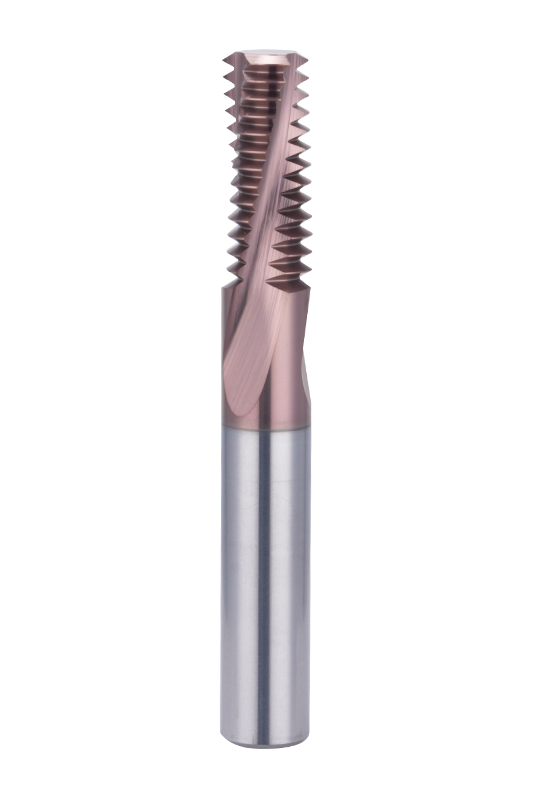

This 60° Metric Full Tooth Thread Milling Cutter is available in a wide range of specifications, covering common metric thread sizes from M1 to M30 to meet diverse machining needs. The variety in cutter diameter, effective cutting length, and shank diameter provides strong adaptability to different machines and clamping systems. Some models support deeper thread machining, making them ideal for high-precision mechanical component applications.
This thread milling cutter conforms to ISO standards with a 60° thread angle, designed for efficient machining of standard metric threads. The full-tooth cutting edge structure ensures complete thread machining in a single pass, improving precision and reducing processing steps. It is suitable for a wide range of materials, including carbon steel, alloy steel, stainless steel, aluminum alloys, and copper alloys, with a recommended workpiece hardness of up to HRC40.
This series features high-performance coatings that enhance wear resistance and oxidation resistance, extending tool life and ensuring machining stability.
