Metric thread: In accordance with ISO standards, the thread angle is 60°.
Single thread: Refers to a thread with a smaller pitch, usually used for precision machining.
Recommended machining hardness: HRC ≤ 45°
Pitch |
Coarse Teeth UNC |
Fine Teeth UNF |

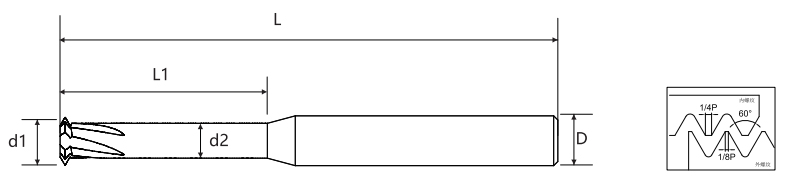

Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
0.2 |
M0.8*P0.2 |
0.55 |
0.29 |
1.5 |
4 |
50 |
2 |
0.6 |
|
0.25 |
M1*P0.25 |
M1.4*0.25 |
0.7 |
0.375 |
3.1 |
4 |
50 |
3 |
0.75 |
0.25 |
M1.2*P0.25 |
M1.4*0.25 |
0.9 |
0.575 |
3.8 |
4 |
50 |
3 |
0.95 |
0.3 |
M1.4*P0.3 |
1.05 |
0.66 |
4 |
4 |
50 |
3 |
1.1 |
|
0.35 |
M1.6*P0.35 |
1.2 |
0.745 |
5 |
4 |
50 |
3 |
1.25 |
|
0.35 |
M1.8»P0.35/M2.0*P0.35 |
1.4 |
0.945 |
5.6 |
4 |
50 |
3 |
1.45 |
|
0.4 |
M2*,P0.4 |
1.54 |
1.02 |
6 |
4 |
50 |
3 |
1.6 |
|
0.45 |
M2.5*P0.45 |
1.96 |
1.375 |
6.5 |
4 |
50 |
3 |
2.1 |
|
0.5 |
M3-P0.5 |
2.4 |
1.75 |
8 |
4 |
50 |
3 |
2.5 |
|
0.5 |
M8*P0.5 |
6 |
5.35 |
20 |
6 |
50 |
3 |
7.5 |
|
0.6 |
M3.5*P0.6 |
2.75 |
1.97 |
10 |
4 |
50 |
3 |
2.9 |
|
0.7 |
M4*P0.7 |
3.15 |
2.24 |
10 |
4 |
50 |
3 |
3.3 |
|
0.75 |
M4.5*P0.75 |
3.5 |
2.525 |
12 |
4 |
50 |
3 |
3.8 |
|
0.75 |
M8*P0.75 |
6 |
5.025 |
20 |
6 |
50 |
3 |
7.3 |
|
0.8 |
M5-P0.8 |
4 |
2.96 |
12 |
4 |
50 |
3 |
4.2 |
|
1 |
M6*P1 |
4.8 |
3.5 |
15 |
6 |
50 |
3 |
5 |
|
1.25 |
M8*P1.25 |
6 |
4.375 |
20 |
6 |
50 |
3 |
6.8 |
|
1.25 |
M8*P1.25 |
6.5 |
4.87 |
25 |
8 |
60 |
3 |
6.8 |
|
1.5 |
M10*P1.5 |
8 |
6.05 |
25 |
8 |
60 |
3 |
8.5 |
|
1.5 |
M10*P1.5 |
8.2 |
6.25 |
31 |
10 |
75 |
4 |
8.5 |
|
1.5 |
M14*P1.5 |
12 |
10.05 |
30 |
12 |
75 |
4 |
12.5 |
|
1.75 |
M12-P1.75 |
10 |
7.725 |
30 |
10 |
75 |
4 |
10.3 |
|
2 |
M14*P2 |
10 |
7.4 |
36 |
10 |
75 |
4 |
12 |
|
2 |
M14*P2 |
11.6 |
9 |
45 |
12 |
75 |
4 |
12 |
|
2 |
M16,P2 |
12 |
9.4 |
45 |
12 |
75 |
4 |
14 |
|
2 |
M16,P2 |
13.6 |
11 |
50 |
14 |
100 |
5 |
14 |
|
2.5 |
M18-M20*P2.5 |
14 |
10.75 |
48 |
14 |
90 |
5 |
15.5 |
|
2.5 |
M20*P2.5 |
16 |
12.75 |
61 |
16 |
100 |
5 |
17.6 |
|
3 |
M24*P3.0 |
14 |
10.1 |
48 |
14 |
90 |
5 |
21 |
|
3.5 |
M30*P3.5 |
16 |
11.45 |
50 |
16 |
90 |
5 |
26.5 |

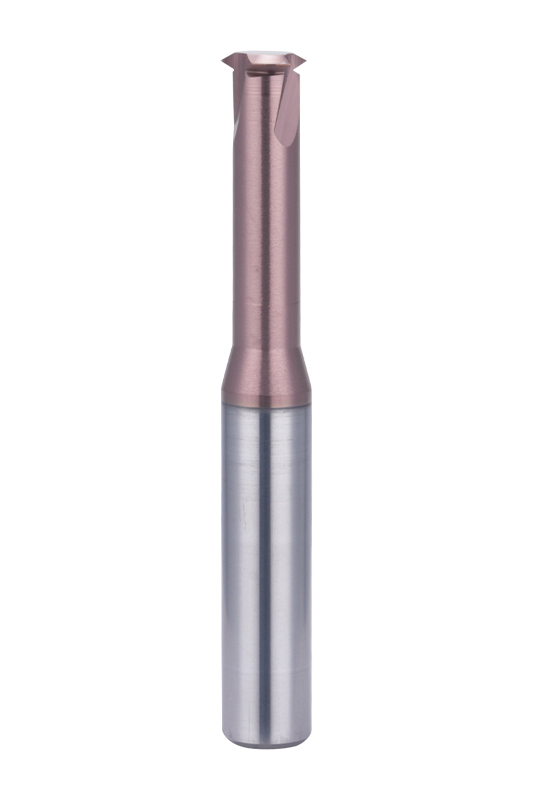

The 60° Metric Single Tooth Thread Milling Cutter is designed for precision threading applications in carbon steel, alloy steel, stainless steel, aluminum alloys, and copper alloys. Made from solid carbide and enhanced with a coating treatment, the tool improves wear resistance and reduces material adhesion. Its geometry minimizes cutting forces, optimizes chip evacuation, and enhances machining stability.
This series covers metric thread sizes from M0.8 to M30, with a broad diameter range to accommodate various threading needs. The single-tooth threading method reduces cutting loads and spindle torque requirements while decreasing tool stress, contributing to higher machining accuracy. The effective cutting length and shank dimensions are optimized to balance rigidity and flexibility, making the tool suitable for both small precision components and larger thread machining.
The single-tooth threading method is compatible with both blind and through-hole applications and is not constrained by thread pitch, making it adaptable to various thread types. Compared to traditional taps, thread milling reduces cutting forces and enhances process reliability for thin-walled parts and difficult-to-machine materials.
