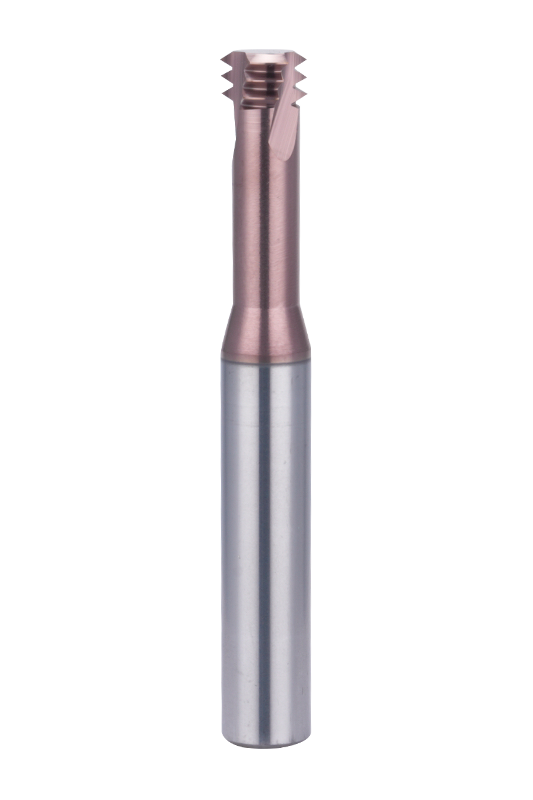

60°Metric Three Tooth Thread Milling Cutter-Changzhou Maiteng Tools Co.,Ltd.

Metric thread: In line with ISO standards, the thread angle is 60°.

Three-tooth design: There are three cutting edges on the tool, which can process multiple threads at the same time to improve processing efficiency.

Recommended processing hardness: HRC≤45°

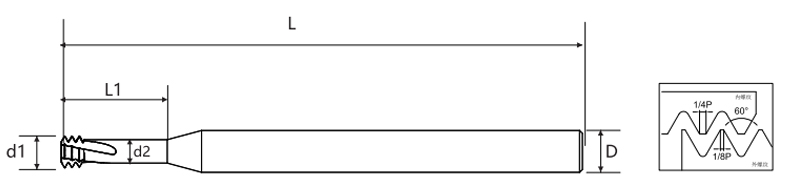

Pitch	Coarse Teeth UNC	Fine Teeth UNF	Blade Diameter d1	Avoidance Diameter d2	Effective Blade Length L1	Handle Diameter D	Overall Length L	Blade Count	Bottom Hole Diameter
0.25	M1*P0.25		0.7	0.375	2.8	4	50	3	0.75
0.25	M1.2*P0.25		0.9	0.575	3	4	50	3	0.95
0.3	M1.4*P0.3		1.05	0.66	3.2	4	50	3	1.1
0.35	M1.6*P0.35		1.2	0.745	4	4	50	3	1.25
0.35		M1.8*P0.35	1.41	0.955	4.1	4	50	3	1.45
0.4	M2*P0.4		1.S4	1.02	4.4	4	50	3	1.6
0.45	M2.5*P0.45		1.96	1.375	5.3	4	50	3	2.1
0.5	M3*P0.5	M3.5*P0.5	2.4	1.75	6.4	4	50	3	2.5
0.5		M4-M6*P0.5	3	2.35	8.6	4	50	3	3.5
0.5		M6-M10*P0.5	4.8	4.15	13	6	50	3	5.5
0.5		M10-M16*P0.5	8	7.35	21.8	8	60	3	9.5
0.6	M3.5*P0.6		2.75	1.97	7.4	4	50	3	2.9
0.7	M4*P0.7		3.15	2.24	8.6	4	50	3	3.3
0.75	M4.5*P0.75		3.5	2.525	9.5	4	50	3	3.8
0.75		M6*P0.75	4.8	3.825	13	6	50	3	5.3
0.75		M8*P0.75	6	5.025	16	6	50	3	7.3
0.75		M10*P0.75	8	7.025	21.8	8	60	3	9.3
0.8	M5*P0.8		4	2.96	12	4	50	3	4.2
1	M6*P1		4.8	3.5	13	6	50	3	5
1		M8*P1	6	4.7	16	6	50	3	7
1		M10*P1	8	6.7	21.8	8	60	3	9
1		M12*P1	10	8.7	25	10	75	4	11
1		M14*P1	10	8.7	28	10	75	4	13
1		M16*P1	12	10.7	30	12	75	4	15
1		M20-M40*P1	15.8	14.5	40	16	90	4	19
1.25	M8*P1.25		6	4.375	16	6	50	3	6.8
1.25	M8*P1.25		6.5	4.87	20	8	60	3	6.8
1.25		M10*P1.25	8	6.375	21.8	8	60	3	8.8
1.25		M12*P1.25	10	8.375	25	10	75	4	10.8
1.25		M14*P1.25	10	8.375	28	10	75	4	12.8
1.25		M16-M40*P1.25	12	10.375	30	12	75	4	14.8
1.5	M10*P1.5		8	6.05	21.8	8	60	3	8.5
1.5	M10*P1.5		8.2	6.25	21.8	10	75	4	8.5
1.5		M12*P1.5	10	8.05	25	10	75	4	10.6
1.5		M14*P1.5	12	10.05	28	12	75	4	12.6
1.5		M16*P1.5	12	10.05	30	12	75	4	14.6
1.5		M20-M40*P1.5	15.8	13.85	40	16	90	4	18.6
1.75	M12*P1.75		10	7.725	25	10	75	4	10.3
2	M14*P2		10	7.4	25	10	75	4	12.1
2	M14*P2		11.6	9	29	12	74	4	12.1
2	M16*P2		12	9.4	27	12	75	4	14.1
2	M16*P2		13.6	11	50	14	100	4	14.1
2		M20-M40*P2	15.8	13.2	40	16	90	4	18.1
2.5	M18-M20*P2.5		14	10.75	40	14	90	4	15.5
	M20*P2.5		16	12.75	61	16	100	4	17.6
3	M24*P3.0		16	12.1	45	16	90	4	21.2
3.5	M30*P3.5		16	11.45	48	16	90	4	26.5

This three tooth thread milling cutter complies with the ISO metric thread standard, featuring a 60° thread angle for high-precision threading. The three-tooth cutting design allows simultaneous cutting of multiple thread lines, improving machining efficiency and reducing cutting load. The cutter is available in two primary sizes: 3 times diameter and 4 times diameter, with multiple diameter and threading standard options to meet various machining requirements.

It is suitable for materials with hardness up to HRC 45°, including carbon steel, stainless steel, aluminum alloys, and copper alloys. The optimized flute design enhances cutting stability, minimizes cutting resistance, and ensures high threading accuracy and surface quality. The longer 4x diameter option is ideal for deep thread hole machining, while the 3x diameter option provides a balanced solution for general threading applications.
