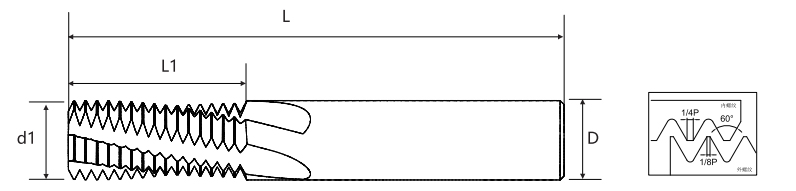

American Unified Thread (UN): Complies with ANSI/ASME B1.1 standard, thread angle is 60°.
Full thread design: The cutting edge of the tool covers the entire thread profile, and thread processing can be completed in one go.
Recommended processing hardness: HRC≤40°
Pitch |
Coarse Teeth UNC |
Fine Teeth UNF |
Ultra Fine Teeth UNEF |
Blade Diameter d1 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
36 |
|
No.8-36 |
|
3 |
8.5 |
4 |
50 |
3 |
3.5 |
32 |
|
No.10-32 |
No.12-3/8"-32 |
3.5 |
11.1 |
4 |
50 |
3 |
4 |
28 |
|
No.12-28,1/4"-28 |
7/16",1/2"-28 |
4 |
11.8 |
4 |
50 |
3 |
4.6 |
28 |
|
1/4"-28 |
7/16",1/2"-28 |
5 |
12.7 |
6 |
60 |
3 |
5.5 |
28 |
|
|
7/16",1/2"-28 |
9.2 |
22.7 |
10 |
75 |
4 |
10.2 |
24 |
N0.10-24 |
5/16",3/8"-24 |
9/16",1/16"-24 |
3.2 |
10.6 |
4 |
50 |
3 |
3.8 |
24 |
NO.12-24 |
5/16",3/8"-24 |
9/16",1/16"-24 |
4 |
11.6 |
4 |
50 |
3 |
4.5 |
24 |
|
5/16",3/8"-24 |
9/16",1/16"-24 |
6 |
15.9 |
6 |
60 |
3 |
6.8 |
24 |
|
3/8"-24 |
9/16",1/16"-24 |
7.8 |
19.1 |
8 |
60 |
3 |
8.5 |
24 |
|
|
9/16",1/16"-24 |
11.9 |
28.6 |
12 |
75 |
4 |
13.2 |
20 |
1/4"-20 |
7/16",1/2"-20 |
3/4",1"-20 |
4 |
12.7 |
4 |
50 |
3 |
5.2 |
20 |
1/4"-20 |
7/16",1/2"-20 |
3/4",1"-20 |
4.88 |
13 |
6 |
60 |
3 |
5.2 |
20 |
|
7/16",1/2"-20 |
3/4",1"-20 |
9 |
22.9 |
10 |
75 |
4 |
9.8 |
20 |
|
1/2"-20 |
3/4",1"-20 |
10 |
25.4 |
10 |
75 |
4 |
11.5 |
20 |
|
|
3/4",1"-20 |
12 |
38.1 |
12 |
75 |
4 |
17.8 |
18 |
5/16"-18 |
9/16",5/8"-18 |
11/16",1 11/16"-18 |
5.8 |
16.9 |
6 |
60 |
3 |
6.5 |
18 |
|
9/16",5/8"-18 |
11/16",1 11/16"-18 |
10 |
29.6 |
10 |
75 |
4 |
12.8 |
18 |
|
5/8"-18 |
11/16",1 11/16"-18 |
11.9 |
32.5 |
12 |
75 |
4 |
14.5 |
16 |
3/8"-16 |
3/4"-16 |
|
7.6 |
19.1 |
8 |
60 |
3 |
8 |
16 |
|
3/4"-16 |
|
12 |
28 |
12 |
75 |
4 |
17.5 |
14 |
7/16"-14 |
7/8"-14 |
|
8 |
20 |
8 |
60 |
3 |
9.3 |
14 |
|
7/8"-14 |
|
16 |
39.9 |
16 |
100 |
4 |
20.5 |
13 |
1/2"-13 |
|
|
8 |
20 |
8 |
60 |
3 |
10.8 |
12 |
9/16"-12 |
1",1 1/2"-12 |
|
10 |
28 |
10 |
75 |
4 |
12.3 |
12 |
|
1",1 1/2"-12 |
|
16 |
40 |
16 |
100 |
4 |
23.5 |
11 |
5/8"-11 |
|
|
12 |
30 |
12 |
75 |
4 |
13.5 |
10 |
3/4"-10 |
|
|
12 |
30 |
12 |
75 |
4 |
16.5 |
9 |
7/8"-9 |
|
|
16 |
38 |
16 |
100 |
4 |
19.5 |
8 |
1"-8 |
|
|
16 |
40 |
16 |
100 |
4 |
22 |

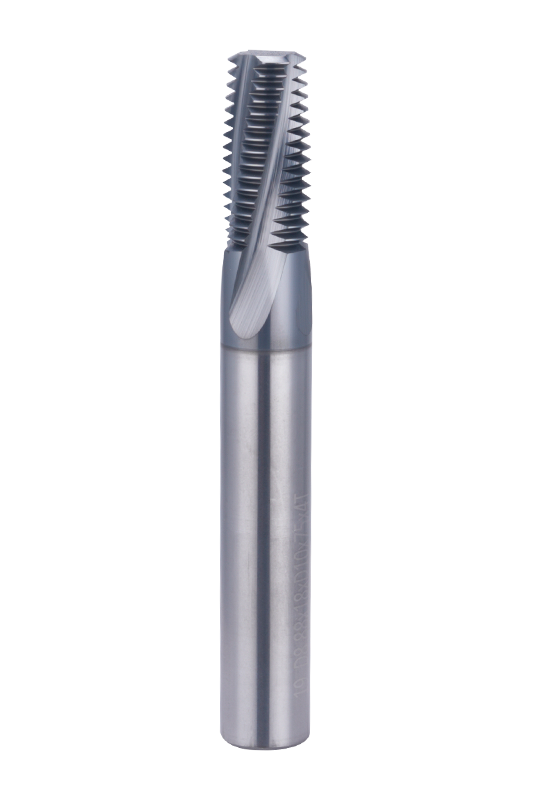

60°UN ANSI/ASME B1.1 Standard Full Tooth Thread Milling Cutter outperforms conventional tapping processes in deep hole, blind hole, and hard material machining. It effectively reduces cutting load, minimizes tool breakage risk, and extends tool lifespan. By selecting the appropriate tool specifications, users can achieve a balance between high-efficiency machining and fine thread quality, meeting diverse industrial application requirements.
This product is designed according to the ANSI/ASME B1.1 standard, featuring a 60° thread angle with a full-tooth cutting edge that covers the entire thread profile. It ensures high precision and consistency in thread machining, supporting various Unified Thread Standards (UNC, UNF, UNEF) for both internal and external thread milling. It is particularly suitable for machining applications that require high accuracy and reliability.
The cutter is compatible with a wide range of materials, including carbon steel, alloy steel, stainless steel, aluminum alloys, copper alloys, and some engineering plastics. Its flexible parameter configurations—such as different cutter diameters (d1), shank diameters (D), overall lengths (L), and thread specifications—allow adaptability to various workpieces and machining needs. It is recommended for materials with a hardness of up to HRC 40° to ensure optimal tool life and cutting performance.
