American Unified Thread (UN): Complies with ANSI/ASME B1.1 standard, thread angle is 60°.
Single thread design: The tool cuts one thread line at a time, suitable for precision machining and small batch production.
Recommended machining hardness: HRC≤45°
|
Pitch |
Coarse Teeth UNC |
Fine Teeth UNF |
Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
|
80 |
No.0-80 |
1.15 |
0.737 |
4.6 |
4 |
50 |
3 |
1.3 |
|
|
72 |
No.1-72 |
1.45 |
0.991 |
3.9 |
4 |
50 |
3 |
1.6 |
|
|
56 |
No.2-56 |
No.3-56 |
1.65 |
1.06 |
6.5 |
4 |
50 |
3 |
1.8 |
|
40 |
No.4,No.5-40 |
No.6-40 |
2.1 |
1.275 |
8.5 |
4 |
50 |
3 |
2.3 |
|
40 |
No.5-40 |
No.6-40 |
2.55 |
1.6 |
7.4 |
4 |
50 |
3 |
2.6 |
|
32 |
No.6,No.8-32 |
No.10-32 |
2.55 |
1.518 |
7.4 |
4 |
50 |
3 |
3.5 |
|
32 |
No.8-32 |
No.10-32 |
3.2 |
2.168 |
11 |
4 |
50 |
3 |
4.0 |
|
32 |
No.10-32 |
3.8 |
2.768 |
12 |
4 |
50 |
3 |
4 |
|
|
20 |
1/4"-20 |
7/16"-20 |
4.88 |
3.229 |
20 |
6 |
50 |
3 |
5.2 |
|
16 |
3/8"-16 |
7.7 |
20 |
8 |
60 |
3 |
8 |

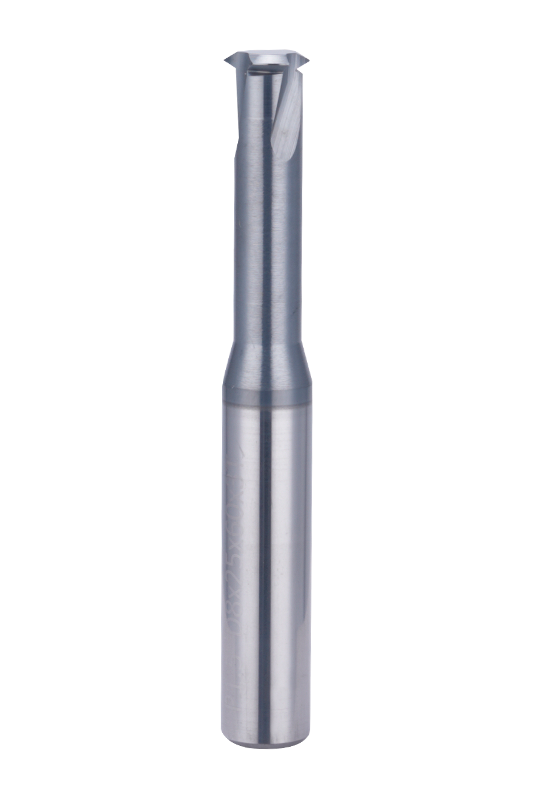

The 60° UN ANSI/ASME B1.1 Standard Single Tooth Thread Milling Cutter is designed for precision machining of Unified Threads (UN) with a 60° thread angle. Its single-tooth cutting design ensures high accuracy and consistency, making it particularly suitable for precision applications and small-batch production.
This cutter is compatible with a wide range of materials, including carbon steel, alloy steel, stainless steel, non-ferrous metals (such as aluminum and copper alloys), and cast iron. It is recommended for machining materials with hardness up to HRC 45 to ensure optimal tool performance and longevity.
With flexible parameter configurations, this milling cutter supports both UNC and UNF thread standards, covering thread sizes from No.0-80 to 3/8"-16. The tool's diameter and effective cutting length are designed to accommodate various threading depths. Additionally, its well-balanced flute geometry and coating options further enhance cutting efficiency and durability.
