BSPT thread: It complies with ISO 7-1 standard and is a 55° British standard conical pipe thread used for sealing pipe connections.
55° thread angle: The thread angle of BSPT thread is 55°, which is different from British standard cylindrical pipe thread (BSP G).

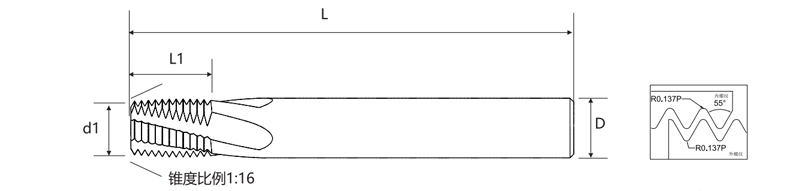

Conical design: BSPT thread has a taper of 1:16, and sealing is achieved through the tight fit of the thread.
Recommended processing hardness: HRC ≤ 45°
Pitch |
Specifications |
Blade Diameter d1 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
27 |
1/16" 1/8" |
5.2 |
12 |
6 |
60 |
3 |
6.3 |
28 |
RC1/16 RC1/8 |
5.24 |
12 |
6 |
60 |
3 |
6.7 |
28 |
RC1/8 |
7.24 |
12 |
8 |
60 |
3 |
8.7 |
19 |
RC1/4 |
7.13 |
14 |
8 |
60 |
3 |
11.8 |
19 |
RC1/4 RC3/8 |
8.88 |
18 |
10 |
75 |
4 |
15.2 |
19 |
RC3/8 |
10.75 |
20 |
12 |
75 |
4 |
15.2 |
19 |
RC3/8 |
12.75 |
20 |
14 |
90 |
4 |
19 |
14 |
RC1/2 RC3/4 RC7/8 |
14.48 |
24 |
16 |
90 |
4 |
23 |
11 |
1" 1"-1/2 2" 2"-1/2 |
14.13 |
30 |
16 |
90 |
4 |
30.7 |

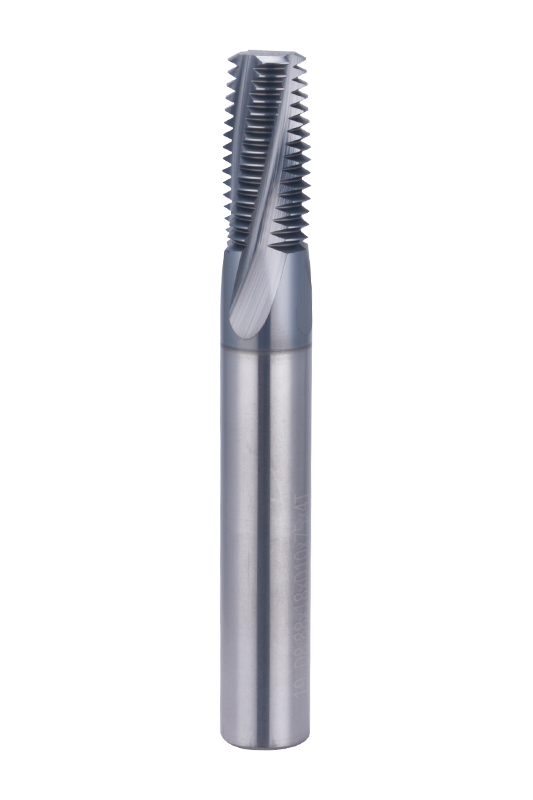

The Imperial BSPT (PT.RC) 55° Thread Milling Cutter conforms to ISO 7-1 standards and is designed for machining BSPT 55° tapered pipe threads, which are widely used in pipe connections and sealing applications. Unlike BSP G (parallel pipe threads), BSPT threads have a 55° thread angle and a 1:16 taper ratio, ensuring a secure seal through thread engagement and self-locking properties.
This milling cutter is suitable for a variety of materials, including carbon steel, alloy steel, stainless steel, cast iron, non-ferrous metals, and plastics. Available in multiple specifications ranging from RC1/16 to 2", it provides flexibility to accommodate diverse application needs. The tool’s design allows for adaptable parameter configurations, including cutting diameter d1, effective cutting length L1, shank diameter D, and overall length L, optimizing machining efficiency and thread quality.
It is recommended for materials with a hardness of HRC ≤45° to ensure tool longevity and stable machining performance. Both uncoated and coated versions are available to suit different working conditions.
