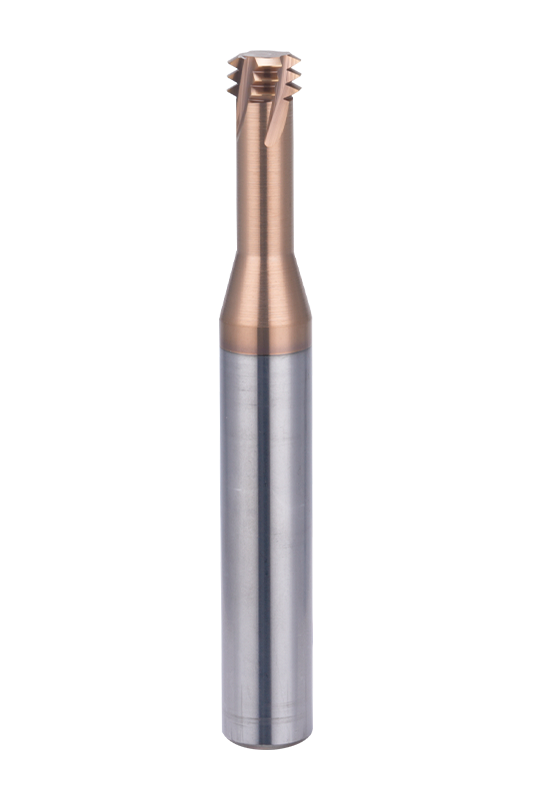

The multifunctional thread milling cutter for steel without primer drilling is a tool specially used for efficient thread processing of steel. The characteristic of this tool is that it can directly process threads without pre-priming holes. At the same time, it has multifunctionality and can complete multiple operations such as drilling, chamfering and thread processing.
|

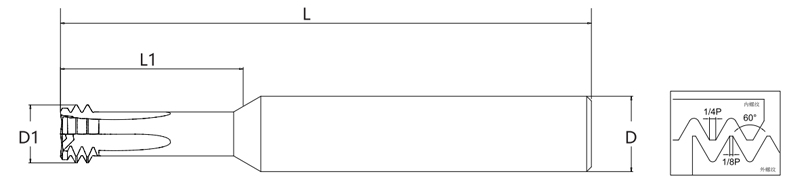

Pitch |
Specifications |
Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
|
0.5 |
M3 |
2.4 |
1.75 |
7 |
6 |
50 |
4 |
|
0.7 |
M4 |
3.2 |
2.29 |
9 |
6 |
50 |
4 |
|
0.8 |
M5 |
3.9 |
2.86 |
12 |
6 |
50 |
4 |
|
1 |
M6 |
4.7 |
3.4 |
14 |
6 |
50 |
4 |
|
1.25 |
M8 |
6.5 |
4.87 |
18 |
8 |
60 |
4 |
|
1.5 |
M10 |
7.8 |
5.55 |
23 |
8 |
60 |
4 |
|
1.75 |
M12 |
9.6 |
7.32 |
26 |
10 |
75 |
4 |
Our Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining is designed for high-efficiency threading in steel materials. This tool eliminates the need for pre-drilled pilot holes and integrates drilling, chamfering, and thread milling into a single operation. It is particularly suitable for rigid materials such as carbon steel, stainless steel, and alloy steel, ensuring high-precision thread formation.
Manufactured with a high-strength substrate and coated for enhanced wear resistance, the tool is optimized for machining steel up to 48HRC. It is available in various thread sizes from M3 to M12, with precisely controlled clearance diameters and effective cutting lengths to accommodate different threading depths and specifications. The shank design ensures stable clamping and broad compatibility with CNC machines and machining environments.
With flexible parameter configurations, this cutter adapts to diverse machining requirements. Shorter cutting lengths enhance rigidity for demanding applications, while longer cutting edges accommodate deep-thread machining. The optimized structure reduces cutting resistance, minimizes machine load, and improves thread surface quality, making it an efficient and reliable solution for precision thread milling.
Enterprise establishment
Employees
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are Multi-Function Thread Milling Cutter Without Pilot Hole For Steel Machining Suppliers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
