Metric thread: In line with ISO standards, the thread angle is 60°.
Two-row tooth design: There are two rows of cutting teeth on the tool, which can participate in cutting at the same time to improve processing efficiency.
Recommended processing hardness: ≤65HRC
|

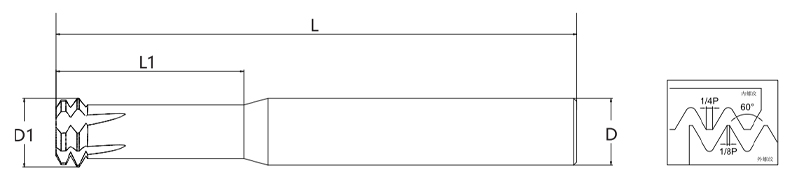

Pitch |
Coarse Teeth UNC |
Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
|
0.35 |
M1.6*P0.35 |
1.2 |
0.78 |
3.2 |
6 |
50 |
3 |
1.25 |
|
0.4 |
M2*P0.4 |
1.55 |
1.05 |
4 |
6 |
50 |
4 |
1.6 |
|
0.45 |
M2.5*P0.45 |
2 |
1.45 |
5 |
6 |
50 |
4 |
2.05 |
|
0.5 |
M3*P0.5 |
2.4 |
1.8 |
6 |
6 |
50 |
4 |
2.5 |
|
0.7 |
M4*P0.7 |
3.15 |
2.3 |
8 |
6 |
50 |
4 |
3.3 |
|
0.8 |
M5*P0.8 |
4.05 |
3.05 |
10 |
6 |
50 |
4 |
4.2 |
|
1 |
M6*P1 |
4.8 |
3.6 |
12 |
6 |
50 |
5 |
5 |
|
1.25 |
M8*P1.25 |
6.5 |
5 |
16 |
8 |
60 |
6 |
6.75 |
|
1.5 |
M10*P1.5 |
8.2 |
6.4 |
20 |
10 |
75 |
6 |
8.5 |
|
1.75 |
M12*P1.75 |
9.6 |
7.5 |
24 |
10 |
75 |
6 |
10.25 |

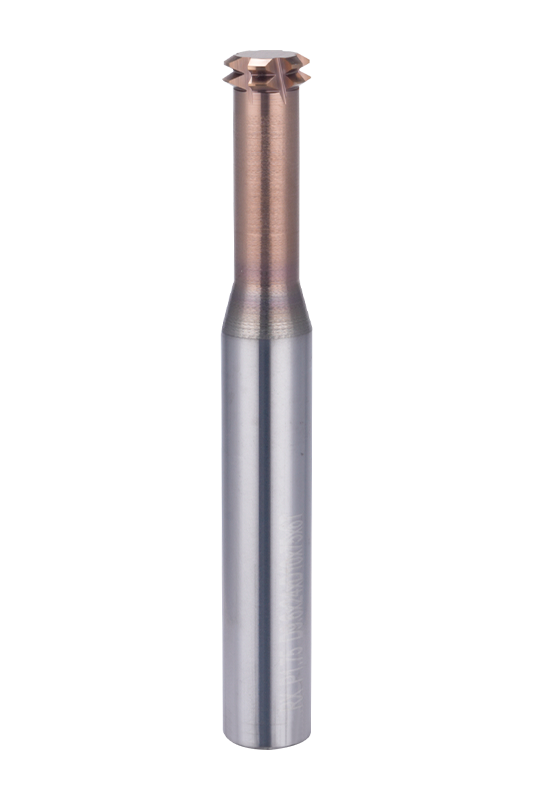

RX Metric Superhard Two-row Thread Milling Cutter is designed for threading applications in high-hardness materials (≤65HRC). It conforms to ISO standards with a 60° thread angle, ensuring standardized and precise thread profiles. Manufactured from ultra-hard materials, the tool offers exceptional wear resistance and stable cutting performance, making it ideal for high-precision threading tasks.
The two-row tooth design enhances machining efficiency: the first row performs rough cutting to remove material quickly, while the second row refines the thread profile for improved surface finish and dimensional accuracy. This design reduces cutting load per tooth, minimizes machining vibrations, extends tool life, and enhances overall stability.
RX Metric Superhard Two-row Thread Milling Cutter is available in various specifications, supporting metric threads from M1.6 to M12. With different effective cutting lengths (L1) and minor diameters, it adapts flexibly to various threading requirements. The tool shank diameters (D6 and D10) ensure compatibility with a wide range of machines and clamping systems, offering versatile application possibilities.
This tool is well-suited for efficient threading in hardened steels, tool steels, and other high-hardness materials. It is widely used in precision mold making, aerospace, medical instruments, and industries requiring high-quality threads.
Enterprise establishment
Employees
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC) Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC) Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC) Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC).
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC) Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are RX Metric Superhard Two-Row Thread Milling Cutter (Suitable for ≤65HRC) Suppliers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
