• Diamond coating is used with advanced technology to obtain better coating adhesion.
• Advanced grinding technology ensures ultra-high coaxiality, high temperature resistance and wear resistance within an ultra-long effective diameter.

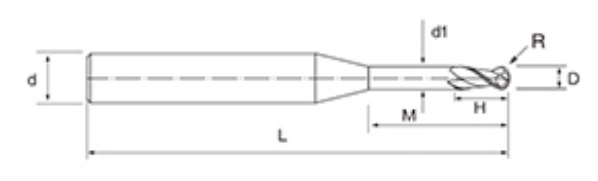

Model | Basic Dimensions(mm) | ||||||
D | R | H | M | d1 | d | L | |
NNS-2BP-R0.25M4 | 0.5 | R0.25 | 1 | 4 | 0.45 | 4 | 50 |
NNS-2BP-R0.25M6 | 0.5 | R0.25 | 1 | 6 | 0.45 | 4 | 50 |
NNS-2BP-R0.3M4 | 0.6 | R0.3 | 1.2 | 4 | 0.55 | 4 | 50 |
NNS-2BP-R0.3M6 | 0.6 | R0.3 | 1.2 | 6 | 0.55 | 4 | 50 |
NNS-2BP-R0.4M6 | 0.8 | R0.4 | 1.6 | 6 | 0.75 | 4 | 50 |
NNS-2BP-R0.4M8 | 0.8 | R0.4 | 1.6 | 8 | 0.75 | 4 | 50 |
NNS-2BP-R0.5M6 | 1.0 | R0.5 | 3 | 6 | 0.95 | 4 | 60 |
NNS-2BP-R0.5M10 | 1.0 | R0.5 | 3 | 10 | 0.95 | 4 | 60 |
NNS-2BP-R0.5M15 | 1.0 | R0.5 | 3 | 15 | 0.95 | 4 | 60 |
NNS-2BP-R0.5M20 | 1.0 | R0.5 | 3 | 20 | 0.95 | 4 | 60 |
NNS-2BP-R0.75M8 | 1.5 | R0.75 | 3 | 8 | 1.45 | 4 | 60 |
NNS-2BP-R0.75M12 | 1.5 | R0.75 | 3 | 12 | 1.45 | 4 | 60 |
NNS-2BP-R0.75M15 | 1.5 | R0.75 | 3 | 15 | 1.45 | 4 | 60 |
NNS-2BP-R0.75M20 | 1.5 | R0.75 | 3 | 20 | 1.45 | 4 | 60 |
NNS-2BP-R1.0M10 | 2.0 | R1.0 | 4 | 10 | 1.9 | 4 | 60 |
NNS-2BP-R1.0M16 | 2.0 | R1.0 | 4 | 16 | 1.9 | 4 | 60 |
NNS-2BP-R1.0M20 | 2.0 | R1.0 | 4 | 20 | 1.9 | 4 | 60 |
NNS-2BP-R1.5M15 | 3.0 | R1.5 | 6 | 15 | 2.8 | 6 | 75 |
NNS-2BP-R1.5M30 | 3.0 | R1.5 | 6 | 30 | 2.8 | 6 | 75 |
NNS-2BP-R2.0M20 | 4.0 | R2.0 | 8 | 20 | 3.7 | 6 | 75 |
NNS-2BP-R2.0M30 | 4.0 | R2.0 | 8 | 30 | 3.7 | 6 | 75 |

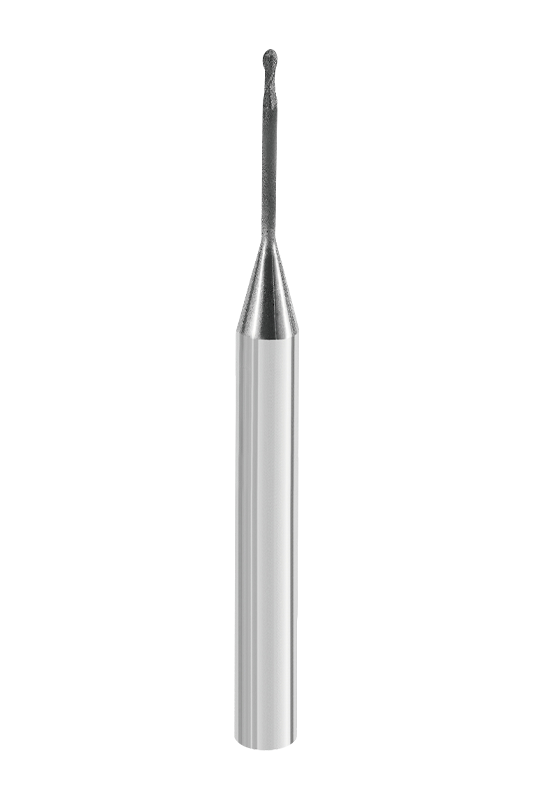

NNS-2BP Graphite Machining 2 Flute Deep Groove Ball End Mills are designed exclusively for graphite machining, this ball-end tool enhances deep groove cutting performance by minimizing interference and optimizing chip evacuation, ensuring precision machining. The 30° helix angle and two-flute structure provide sharp cutting edges while maintaining stability, reducing cutting resistance and improving surface finish.
Engineered with a high-performance diamond coating, this tool significantly enhances wear resistance. Advanced coating technology ensures superior adhesion, extending tool life. The precision grinding process guarantees excellent concentricity even with an ultra-long effective cutting length, providing exceptional dimensional accuracy, heat resistance, and durability for high-intensity continuous cutting.
Specially developed for high-precision machining of graphite (ISO K class), this tool is ideal for graphite electrodes, molds, and precision components, meeting the demanding requirements of industries such as mold manufacturing, electronics, and aerospace.
Available in a wide range of sizes from R0.25 to R2.0, with cutting diameters from 0.5mm to 4.0mm, cutting lengths from 1.0mm to 16.0mm, and shank diameters of either 4mm or 6mm. The extensive size selection allows users to optimize machining efficiency and cost by precisely matching different depth and accuracy requirements.
