• High precision and high efficiency can achieve high-quality processing surface.

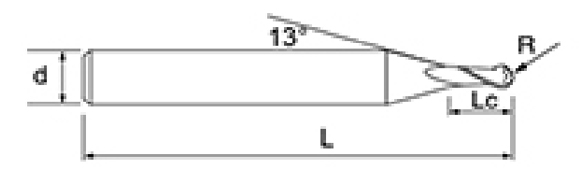

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2BS-D0.1 | 0.1 | R0.05 | 0.2 | 50 | 4 | 2 |
NNX-2BS-D0.15 | 0.15 | R0.075 | 0.3 | 50 | 4 | 2 |
NNX-2BS-D0.2 | 0.2 | R0.1 | 0.4 | 50 | 4 | 2 |
NNX-2BS-D0.3 | 0.3 | R0.15 | 0.6 | 50 | 4 | 2 |
NNX-2BS-D0.4 | 0.4 | R0.2 | 0.8 | 50 | 4 | 2 |
NNX-2BS-D0.5 | 0.5 | R0.25 | 1 | 50 | 4 | 2 |
NNX-2BS-D0.6 | 0.6 | R0.3 | 1.2 | 50 | 4 | 2 |
NNX-2BS-D0.7 | 0.7 | R0.35 | 1.4 | 50 | 4 | 2 |
NNX-2BS-D0.8 | 0.8 | R0.4 | 1.6 | 50 | 4 | 2 |
NNX-2BS-D0.9 | 0.9 | R0.45 | 1.8 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

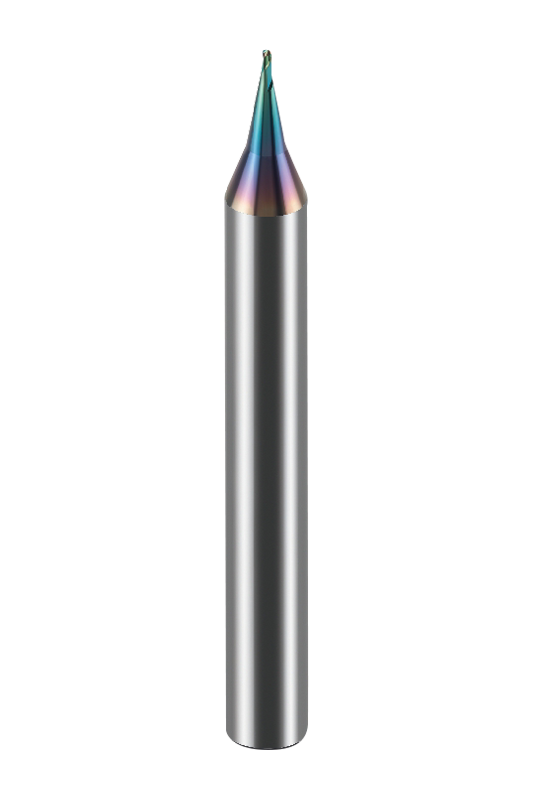

NNX-2BS two-flute micro-diameter ball end mills are available in a variety of specifications, covering a tool diameter range of 0.1mm to 0.9mm, and with different fillet radii and cutting lengths to meet precision machining needs. Users can freely choose the most suitable model according to the specific application scenario to achieve efficient and high-precision machining performance.
This series of milling cutters adopts a unique micro-diameter ball end design combined with a 30° helix angle to optimize cutting performance and reduce cutting resistance. This design is particularly suitable for fine machining, especially in high-precision copper electrode machining, which can effectively reduce burrs, improve machining surface quality, and enhance tool durability.
NNX-2BS uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology to provide extremely high hardness while ensuring that cutting sharpness is not affected. In addition, the precision grinding process ensures the high concentricity and excellent dimensional accuracy of the tool, enabling it to stably cope with high-precision machining tasks.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Micro Diameter Ball End Copper Electrode Milling Cutters Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Micro Diameter Ball End Copper Electrode Milling Cutters Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Micro Diameter Ball End Copper Electrode Milling Cutters Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Micro Diameter Ball End Copper Electrode Milling Cutters.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Micro Diameter Ball End Copper Electrode Milling Cutters Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
