• High precision and high efficiency can achieve high-quality processing surface of copper electrodes.

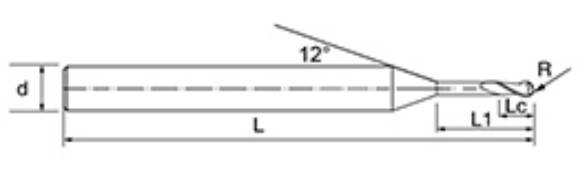

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2BSP-D0.1-L0.3 | 0.1 | 0.05 | 0.1 | 0.3 | 50 | 4 | 2 |
NNX-2BSP-D0.1-L0.5 | 0.1 | 0.05 | 0.1 | 0.5 | 50 | 4 | 2 |
NNX-2BSP-D0.1-L0.8 | 0.1 | 0.05 | 0.1 | 0.8 | 50 | 4 | 2 |
NNX-2BSP-D0.1-L1 | 0.1 | 0.05 | 0.1 | 1 | 50 | 4 | 2 |
NNX-2BSP-D0.15-L0.5 | 0.15 | 0.075 | 0.15 | 0.5 | 50 | 4 | 2 |
NNX-2BSP-D0.15-L1 | 0.15 | 0.075 | 0.15 | 1 | 50 | 4 | 2 |
NNX-2BSP-D0.2-L1 | 0.2 | 0.1 | 0.2 | 1 | 50 | 4 | 2 |
NNX-2BSP-D0.2-L1.5 | 0.2 | 0.1 | 0.2 | 1.5 | 50 | 4 | 2 |
NNX-2BSP-D0.2-L2 | 0.2 | 0.1 | 0.2 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.2-L3 | 0.2 | 0.1 | 0.2 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L1 | 0.3 | 0.15 | 0.3 | 1 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L1.5 | 0.3 | 0.15 | 0.3 | 1.5 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L2 | 0.3 | 0.15 | 0.3 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L3 | 0.3 | 0.15 | 0.3 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L4 | 0.3 | 0.15 | 0.3 | 4 | 50 | 4 | 2 |
NNX-2BSP-D0.3-L5 | 0.3 | 0.15 | 0.3 | 5 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L1.5 | 0.4 | 0.2 | 0.4 | 1.5 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L2 | 0.4 | 0.2 | 0.4 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L3 | 0.4 | 0.2 | 0.4 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L4 | 0.4 | 0.2 | 0.4 | 4 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L5 | 0.4 | 0.2 | 0.4 | 5 | 50 | 4 | 2 |
NNX-2BSP-D0.4-L6 | 0.4 | 0.2 | 0.4 | 6 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L2 | 0.5 | 0.25 | 0.5 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L3 | 0.5 | 0.25 | 0.5 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L4 | 0.5 | 0.25 | 0.5 | 4 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L5 | 0.5 | 0.25 | 0.5 | 5 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L6 | 0.5 | 0.25 | 0.5 | 6 | 50 | 4 | 2 |
NNX-2BSP-D0.5-L8 | 0.5 | 0.25 | 0.5 | 8 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L2 | 0.6 | 0.3 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L3 | 0.6 | 0.3 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L4 | 0.6 | 0.3 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L5 | 0.6 | 0.3 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L6 | 0.6 | 0.3 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L8 | 0.6 | 0.3 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2BSP-D0.6-L10 | 0.6 | 0.3 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L2 | 0.8 | 0.4 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L3 | 0.8 | 0.4 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L4 | 0.8 | 0.4 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L5 | 0.8 | 0.4 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L6 | 0.8 | 0.4 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L8 | 0.8 | 0.4 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2BSP-D0.8-L10 | 0.8 | 0.4 | 0.8 | 10 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

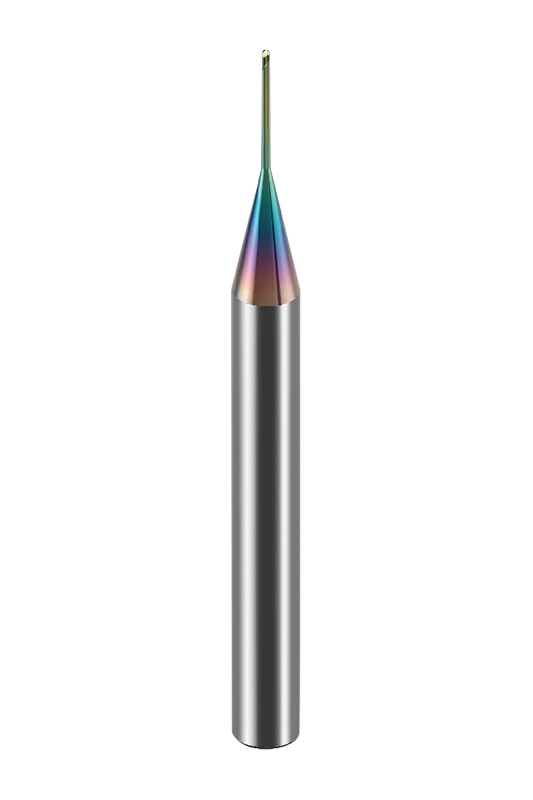

NNX-2BSP 2 flute micro diameter deep groove ball end mills for copper electrode milling are available in a variety of sizes to suit different processing needs. From tool diameter, blade length to arc radius, there are a variety of combinations to choose from, allowing users to freely choose the most suitable model according to the specific application. This flexibility ensures high adaptability in precision machining, whether it is micro-structure engraving or deep groove fine machining, it can provide stable and reliable cutting performance.
This series of milling cutters adopts a unique deep groove ball end design, which optimizes cutting capacity while ensuring efficient chip removal performance in narrow spaces. Its 30° helix angle design can effectively reduce cutting resistance, reduce vibration generated during machining, and improve surface finish. For high-precision machining applications such as copper electrodes, this design can effectively control tool wear and extend tool life.
NNX-2BSP uses (0.2μm) ultra-fine particle substrate with the latest DLC coating technology to give the tool extremely high surface hardness and excellent wear resistance. This coating not only greatly improves tool life, but also effectively reduces friction between the tool and the workpiece during cutting, ensuring the stability of high-precision machining.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Micro Diameter Deep Groove Ball End Mills For Copper Electrode Milling Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Micro Diameter Deep Groove Ball End Mills For Copper Electrode Milling Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Micro Diameter Deep Groove Ball End Mills For Copper Electrode Milling Suppliers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Micro Diameter Deep Groove Ball End Mills For Copper Electrode Milling.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Micro Diameter Deep Groove Ball End Mills For Copper Electrode Milling Factory
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
