• High precision and high efficiency can achieve high-quality processing surface of copper electrodes.

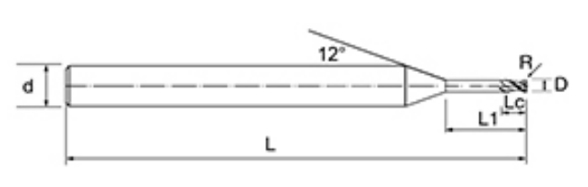

No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
NNX-2RSP-D0.2-L1 | 0.2 | 0.02 | 0.2 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1.5 | 0.2 | 0.02 | 0.2 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L2 | 0.2 | 0.02 | 0.2 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L3 | 0.2 | 0.02 | 0.2 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1 | 0.2 | 0.05 | 0.2 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1.5 | 0.2 | 0.05 | 0.2 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L2 | 0.2 | 0.05 | 0.2 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L3 | 0.2 | 0.05 | 0.2 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1 | 0.3 | 0.02 | 0.3 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1.5 | 0.3 | 0.02 | 0.3 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L2 | 0.3 | 0.02 | 0.3 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L3 | 0.3 | 0.02 | 0.3 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L4 | 0.3 | 0.02 | 0.3 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1 | 0.3 | 0.05 | 0.3 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1.5 | 0.3 | 0.05 | 0.3 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L2 | 0.3 | 0.05 | 0.3 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L3 | 0.3 | 0.05 | 0.3 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L4 | 0.3 | 0.05 | 0.3 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.4 | 0.02 | 0.4 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.4 | 0.02 | 0.4 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.4 | 0.02 | 0.4 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.4 | 0.02 | 0.4 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.4 | 0.02 | 0.4 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.4 | 0.02 | 0.4 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.4 | 0.02 | 0.4 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.4 | 0.05 | 0.4 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.4 | 0.05 | 0.4 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.4 | 0.05 | 0.4 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.4 | 0.05 | 0.4 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.4 | 0.05 | 0.4 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.4 | 0.05 | 0.4 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.4 | 0.05 | 0.4 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.4 | 0.1 | 0.4 | 1 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.4 | 0.1 | 0.4 | 1.5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.4 | 0.1 | 0.4 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.4 | 0.1 | 0.4 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.4 | 0.1 | 0.4 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.4 | 0.1 | 0.4 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.4 | 0.1 | 0.4 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L2 | 0.5 | 0.02 | 0.5 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L3 | 0.5 | 0.02 | 0.5 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L4 | 0.5 | 0.02 | 0.5 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L5 | 0.5 | 0.02 | 0.5 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1 | 0.5 | 0.02 | 0.5 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1.5 | 0.5 | 0.02 | 0.5 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L2 | 0.5 | 0.02 | 0.5 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1 | 0.5 | 0.05 | 0.5 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L1.5 | 0.5 | 0.05 | 0.5 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L2 | 0.5 | 0.05 | 0.5 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1 | 0.5 | 0.05 | 0.5 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1.5 | 0.5 | 0.05 | 0.5 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L4 | 0.5 | 0.1 | 0.5 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1 | 0.5 | 0.1 | 0.5 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L1.5 | 0.5 | 0.1 | 0.5 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.3-L4 | 0.6 | 0.02 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.6 | 0.02 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.6 | 0.02 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.6 | 0.02 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.6 | 0.02 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.6 | 0.02 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.6 | 0.02 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.6 | 0.05 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.6 | 0.05 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.6 | 0.05 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.6 | 0.05 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.6 | 0.05 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.6 | 0.05 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.6 | 0.05 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.6 | 0.1 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1 | 0.6 | 0.1 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L1.5 | 0.6 | 0.1 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L2 | 0.6 | 0.1 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L3 | 0.6 | 0.1 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L4 | 0.6 | 0.1 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L5 | 0.6 | 0.1 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.4-L6 | 0.6 | 0.2 | 0.6 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L2 | 0.6 | 0.2 | 0.6 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L3 | 0.6 | 0.2 | 0.6 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L4 | 0.6 | 0.2 | 0.6 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.5-L5 | 0.6 | 0.2 | 0.6 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.6-L8 | 0.6 | 0.2 | 0.6 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.6-L10 | 0.6 | 0.2 | 0.6 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L2 | 0.8 | 0.02 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L3 | 0.8 | 0.02 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L4 | 0.8 | 0.02 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L5 | 0.8 | 0.02 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L6 | 0.8 | 0.02 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L8 | 0.8 | 0.02 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L10 | 0.8 | 0.02 | 0.8 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L2 | 0.8 | 0.05 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L3 | 0.8 | 0.05 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L4 | 0.8 | 0.05 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L5 | 0.8 | 0.05 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L6 | 0.8 | 0.05 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L8 | 0.8 | 0.05 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L10 | 0.8 | 0.05 | 0.8 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L2 | 0.8 | 0.1 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L3 | 0.8 | 0.1 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L4 | 0.8 | 0.1 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L5 | 0.8 | 0.1 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L6 | 0.8 | 0.1 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L8 | 0.8 | 0.1 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L10 | 0.8 | 0.1 | 0.8 | 10 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L2 | 0.8 | 0.2 | 0.8 | 2 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L3 | 0.8 | 0.2 | 0.8 | 3 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L4 | 0.8 | 0.2 | 0.8 | 4 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L5 | 0.8 | 0.2 | 0.8 | 5 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L6 | 0.8 | 0.2 | 0.8 | 6 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L8 | 0.8 | 0.2 | 0.8 | 8 | 50 | 4 | 2 |
NNX-2RSP-D0.8-L10 | 0.8 | 0.2 | 0.8 | 10 | 50 | 4 | 2 |
Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
D | R | CR | Lc | L1 | L | d | ||||
NNX Carbide End Mills for Copper Electrode |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
D1~D3.5 | +0 -0.005 |
|||||||||
D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 |

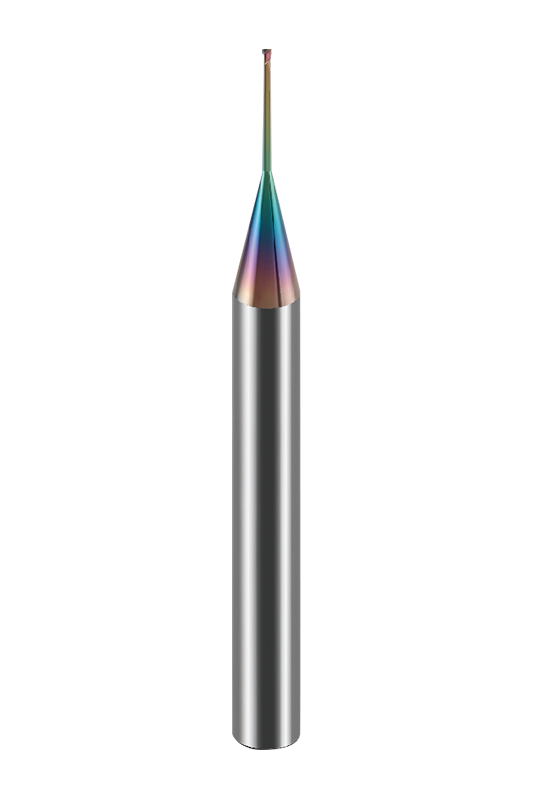

The NNX-2RSP series products offer a wide range of sizes, covering tool diameters from 0.2mm to 0.8mm, and achieve a variety of combinations in blade length, blade diameter and fillet radius. Whether it is ultra-precision machining requirements or specific depth cutting requirements, this series can provide flexible matching to meet high-precision options in different machining scenarios.
The unique deep groove round nose design is specially designed for fine machining of copper electrodes, which optimizes the cutting load distribution and enables the tool to maintain stability in a small space. The 30° helix angle ensures smooth chip removal and reduces the heat and tool wear caused by chip accumulation during machining. Combined with the micro-diameter characteristics, it can achieve excellent performance in a high-precision machining environment.
The entire series uses (0.2μm) ultra-fine particle substrates with the latest DLC coating technology, giving the tool an ultra-low friction coefficient and excellent wear resistance, greatly improving the machining life. With the precision grinding process, the sharpness of the cutting edge reaches the extreme. The overall design focuses on the mirror machining performance of the copper electrode to achieve more efficient and stable micro-finishing.
