• High feed, large cutting depth, resistant to collapse.
• Optimize processing technology and simplify programming work.
• Reduce tool changing frequency and improve machining efficiency.

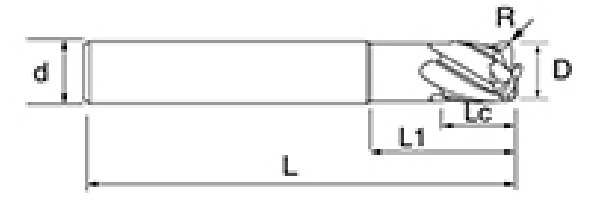

| No. |
Diameter D |
R Angle R |
Flute Length Lc |
Effective Length L1 |
Overall Length L |
Shank Dia d |
Blade Count F |
| NNH-5RF-D4 | 4 | 0.51 | 4 | 12 | 60 | 6 | 5 |
| NNH-5RF-D4 | 4 | 0.51 | 4 | 20 | 60 | 6 | 5 |
| NNH-5RF-D6 | 6 | 0.75 | 6 | 18 | 60 | 6 | 5 |
| NNH-5RF-D8 | 8 | 0.99 | 8 | 20 | 60 | 8 | 5 |
| NNH-5RF-D8 | 8 | 0.99 | 8 | 24 | 75 | 8 | 5 |
| NNH-5RF-D10 | 10 | 1.23 | 10 | 30 | 75 | 10 | 5 |
| NNH-5RF-D12 | 12 | 1.48 | 12 | 36 | 75 | 12 | 5 |
| Tool Series | Diameter | Radius | Corner Radius | Flute length | Effective length | Overall length | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
|
NNH High Speed and High Hardness Carbide End Mills |
D0.1~D0.9 | +0 -0.005 |
R0.05~R2 | +/-0.005 | CR0.05~CR0.5 | +/-0.005 | +0 +0.3 |
+0 +0.3 |
+0.5 -0.5 |
h5 |
| D1~D3.5 | +0 -0.005 |
|||||||||
| D4~D10 | -0.003 -0.015 |
R3~R5 | +/-0.005 | CR1.0~CR3.0 | +/-0.008 | +0 +0.5 |
+0 +0.5 |
|||
| D12~D20 | -0.003 -0.018 |
R6~R10 | +/-0.008 | |||||||

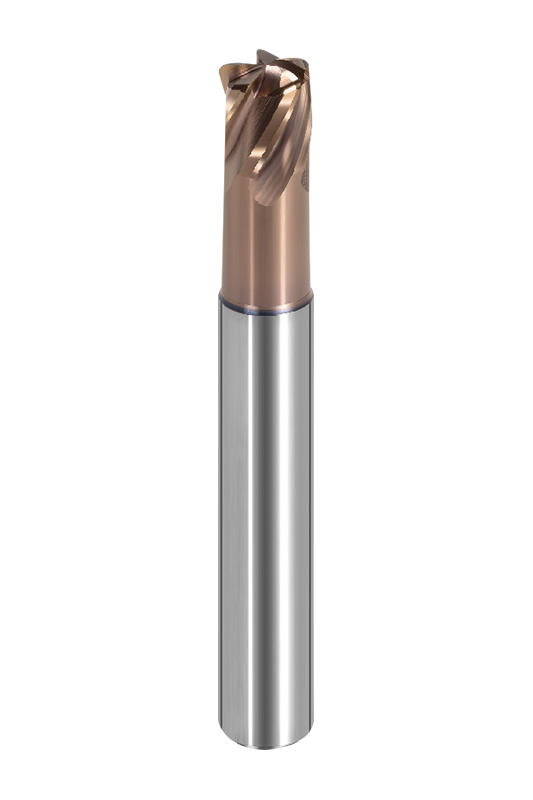

NNH-5RF 5 flute high speed efficient rough milling cutters provides a variety of size options, which can be flexibly combined to match different sub-models to meet the processing needs from small and medium-sized workpieces to large-sized parts, allowing you to freely choose in various application scenarios.
Its special 5 flute shape takes into account high efficiency and stability in the roughing stage. The blade angle design fully considers the smooth chip removal and cutting load distribution, and can maintain excellent processing performance under high-speed processing.
By adopting advanced coating technology and high-hardness cemented carbide substrate, NNH-5RF still maintains excellent wear resistance and impact resistance under extreme working conditions, significantly improving tool life and reducing processing costs.
This milling cutter is suitable for a variety of materials such as modulated steel, heat-treated steel and mold steel. Especially in high-speed and high-hardness processing occasions, it shows outstanding stability and cutting efficiency, providing strong support for mass production and precision manufacturing.
Enterprise establishment
Employees
Changzhou Maiteng Tools Co.,Ltd.is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 5 Flute High Speed Efficient Rough Milling Cutters Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 5 Flute High Speed Efficient Rough Milling Cutters Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
We will reply to you within 12 hours after receiving the inquiry on weekdays.
We are manufacturers, we produce and sell ourselves.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 5 Flute High Speed Efficient Rough Milling Cutters Manufacturers.
Our products cover almost the entire mold industry, defense industry, aerospace industry, automotive industry, electronic products and other fields.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 5 Flute High Speed Efficient Rough Milling Cutters.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 5 Flute High Speed Efficient Rough Milling Cutters Company
Firstly, after each process, we conduct corresponding inspections. For the final product, we will conduct 100% full inspection according to customer requirements and international standards;
Then, we have the advanced and complete top-notch testing equipment in the industry, such as spectral analyzers, metallographic microscopes, etc., which can ensure the stability and consistency of cutting tools, while meeting customers' high-precision testing requirements for cutting tools.
When quoting, we will confirm with you the transaction method, FOB, CIF, CNF or other options. When producing in bulk, we usually make a 30% advance payment first, and then pay the remaining balance upon presentation of the bill of lading. We mostly use T/T as the payment method, but L/C is also acceptable.
We are 5 Flute High Speed Efficient Rough Milling Cutters Manufacturers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
