American Unified Thread (UN): Complies with ANSI/ASME B1.1 standard, thread angle is 60°.
Three-tooth design: There are three cutting edges on the tool, which can process multiple threads at the same time to improve processing efficiency.
Recommended processing hardness: HRC≤45°
|
Pitch |
Coarse Teeth UNC |
Fine Teeth UNF |

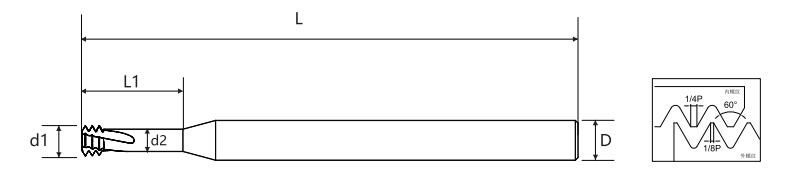

Blade Diameter d1 |
Avoidance Diameter d2 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
|
80 |
No.0-80 |
1.15 |
0.737 |
3.5 |
4 |
50 |
3 |
1.2 |
|
|
72 |
No.1-72 |
1.45 |
0.991 |
3.9 |
4 |
50 |
3 |
1.6 |
|
|
64 |
No.1-64 |
No.2-64 |
1.4 |
0.884 |
4.2 |
4 |
50 |
3 |
1.5 |
|
56 |
No.2-56 |
No.3-56 |
1.65 |
1.06 |
5 |
4 |
50 |
3 |
1.8 |
|
48 |
No.3-48 |
No.4-48 |
1.9 |
1.212 |
6 |
4 |
50 |
3 |
2.1 |
|
40 |
No.4, No.5-40 |
No.6-40 |
2.1 |
1.275 |
6 |
4 |
50 |
3 |
2.3 |
|
40 |
No.5-40 |
No.6-40 |
2.45 |
1.6 |
7.2 |
4 |
50 |
3 |
2.6 |
|
36 |
No.8-36 |
3.3 |
2.383 |
8.7 |
4 |
50 |
3 |
3.5 |
|
|
32 |
No.6,No.8-32 |
No.10-32 |
2.55 |
1.518 |
7.4 |
4 |
50 |
3 |
2.8 |
|
32 |
No.8-32 |
No.10-32 |
3.2 |
2.168 |
10 |
4 |
50 |
3 |
3.5 |
|
32 |
No.10-32 |
3.8 |
2.768 |
10.3 |
4 |
50 |
3 |
5.5 |
|
|
28 |
1/4"-28 |
5.25 |
4.071 |
13.2 |
6 |
50 |
3 |
3.9 |
|
|
24 |
No.10-24 |
5/16"-24 |
3.58 |
2.204 |
10.2 |
4 |
50 |
3 |
6.9 |
|
24 |
5/16"-24 |
6.68 |
5.304 |
16.5 |
8 |
60 |
3 |
5.2 |
|
|
20 |
1/4"-20 |
7/16"-20 |
4.88 |
3.229 |
13.4 |
6 |
50 |
3 |
9.9 |
|
20 |
7/16"-20 |
9.55 |
7.899 |
23 |
10 |
75 |
4 |
11.4 |
|
|
18 |
5/16"-18 |
6.15 |
4.316 |
16.9 |
8 |
60 |
3 |
6.5 |
|
|
16 |
3/8"-16 |
6.7 |
4.636 |
19.1 |
8 |
60 |
3 |
8 |
|
|
14 |
7/16"-14 |
9 |
6.641 |
23.3 |
10 |
75 |
4 |
9.4 |

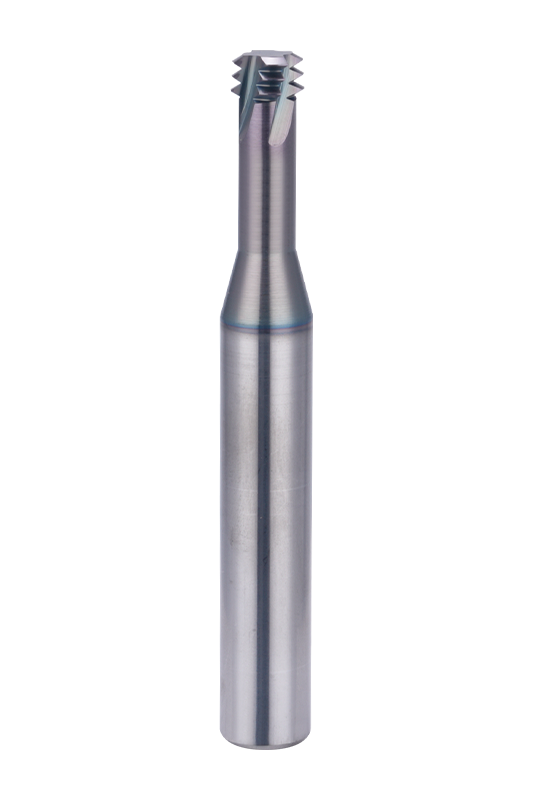

60°UN ANSI/ASME B1.1 Standard Tooth Thread Milling Cutter follows the ANSI/ASME B1.1 standard for Unified National (UN) threads, ensuring precise thread geometry with a 60° thread angle. The three-tooth cutting design allows simultaneous processing of multiple thread paths, improving machining efficiency and reducing cutting load, making it particularly suitable for high-precision thread manufacturing.
The cutter is compatible with a wide range of materials, including carbon steel, alloy steel, stainless steel, cast iron, aluminum alloys, copper alloys, and other non-ferrous metals. With an optimal performance range for materials up to HRC≤45°, it maintains stable cutting performance and extended tool life, ensuring high accuracy and consistency in thread machining.
A flexible range of specifications is available, covering sizes from No.0-80 to 7/16"-14, offering various cutting diameters and effective cutting lengths to accommodate different threading depths and machining requirements. The carefully designed helix angle minimizes cutting resistance and tool wear, making this cutter an excellent choice for both mass production and high-precision machining applications.
