NPT thread: American tapered pipe thread, in accordance with ANSI/ASME B1.20.1 standard, with a taper of 1:16, used for general sealed pipe connections.
NPTF thread: American dry seal tapered pipe thread, in accordance with ANSI/ASME B1.20.3 standard, with higher sealing performance, can achieve sealing without sealant.
60° thread angle: The thread angle of NPT/NPTF threads is 60°.
Recommended processing hardness: HRC≤45°
Pitch |
Specifications |
Blade Diameter d1 |
Effective Blade Length L1 |
Handle Diameter D |
Overall Length L |
Blade Count |
Bottom Hole Diameter |
27 |
1/16" 1/8" |
5.2 |
12 |
6 |
60 |
3 |
6.3 |
27 |
1/8" |
7.2 |
12 |
8 |
60 |
3 |
8.5 |
18 |
1/4" |
7.1 |
14.1 |
8 |
60 |
3 |
11.1 |
18 |
1/4" 3/8" |
8.7 |
20 |
10 |
75 |
4 |
11.1 |
18 |
3/8" |
10.6 |
22 |
12 |
75 |
4 |
14.5 |
18 |
3/8" |
12.6 |
22 |
14 |
90 |
4 |
14.5 |
14 |
1/2," |
10.8 |
18.1 |
12 |
75 |
4 |
17.7 |
14 |
1/2" 3/4" 5/8" |
14.4 |
25 |
16 |
90 |
4 |
23 |
11.5 |
1" 2" |
14.1 |
30 |
16 |
90 |
4 |
29-56 |
8 |
2-1/2" 3” |
13.8 |
35 |
16 |
90 |
4 |
66.5 |

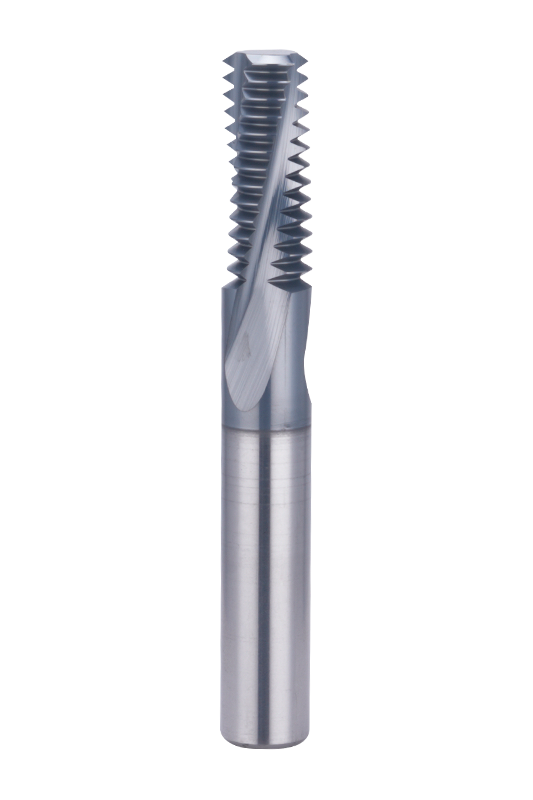

The UN 60° NPT/NPTF Thread Milling Cutter is designed for machining American National Standard Taper Pipe Threads (NPT/NPTF) that comply with ANSI/ASME B1.20.1 and B1.20.3 standards. NPT threads feature a standard 1:16 taper for general piping connections, while NPTF threads provide enhanced dry sealing capability without requiring additional sealants.
Engineered with precision, this tool ensures high-quality thread profiles with optimal dimensional accuracy and sealing performance. The 60° thread angle conforms to NPT/NPTF standards, making it suitable for machining materials with a hardness of up to HRC 45°. Its broad compatibility allows for efficient machining of carbon steel, alloy steel, stainless steel, cast iron, copper alloys, aluminum alloys, and certain engineering plastics.
Available in various specifications, this thread milling cutter offers optimized parameters, including effective cutting length, shank diameter, total length, and thread root diameter, ensuring both stability and flexibility during machining. Coated and uncoated versions are available to enhance tool life and machining efficiency based on specific application needs.
